SOYAL
ACCESS CONTROL SYSTEM
Contents

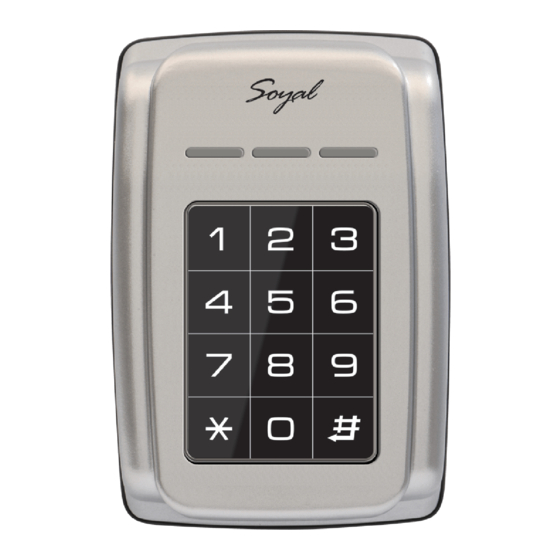

AR-321-H: Touch-panel Metal Housing
1
Product
AR-331-H: Touch-panel Metal Housing / AR-331-H-S: Metal Housing
1
Product
or
AR-331-H
AR-331-H-S
AR-721-H
1
Product
AR-725-H: Illuminated Touch-panel
AR-725-H-M
1
Products
A.
B.
AR-725-H
1
Products
A1.
E.
AR-725 (X)
1
Products
A2.
A3.
AR-757-H
1
Product
Parts Description
a.
Button Head Pozidriv
Tapping Screw: M3x10
e.
Security Torx Screw:
M3.5x15
AR-321-H /AR-721-H/ AR-331-H
®
2
Terminal Cables
CN1
CN2
CN4
2
Terminal Cables
(Optional)
CN1
WG keyboard
CN3
CN4
2
Terminal Cables
CN1
CN2
CN3
C.
D.
F.
B.
C.
G.
2
Terminal Cables
CN1
CN2
CN3
b.
Button Head Pozidriv
Slotting Screw: 2.5x10
f.
Flat Head Hex Socket
Screw: M3x8
AR-725-H / AR-757-H
3
Tools
CN5
3
Tools
CN2
CN5
3
Tools
f x2
CN4
2
Terminal Cables
CN1
CN2
CN3
CN4
2
Terminal Cables
CN1
CN2
CN3
CN4
H.
D.
CN4
CN5
c.
Flat Head Cap Philips
Tapping Screw: 4x19.1
g.
Security Torx Screw: M3x10
- 1 -
4
Water proof Strip
d x2
※ Additional external relay must be purchased.
4
Accessories
d x2
f x1
h x1
Water proof Strip
3
Tools
c x2
e x1
3
Tools
f x2
2
Tools
3
Tools
f x2
d.
h.
V221226
5
Optional
AR-721RB
Digital Relay
a x2
e x1
b x2
c x2
Flat Head Cap Philips
Tapping Screw: 4x38
Security Torx Wrenches
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Soyal AR-321-H
Summary of Contents for Soyal AR-321-H

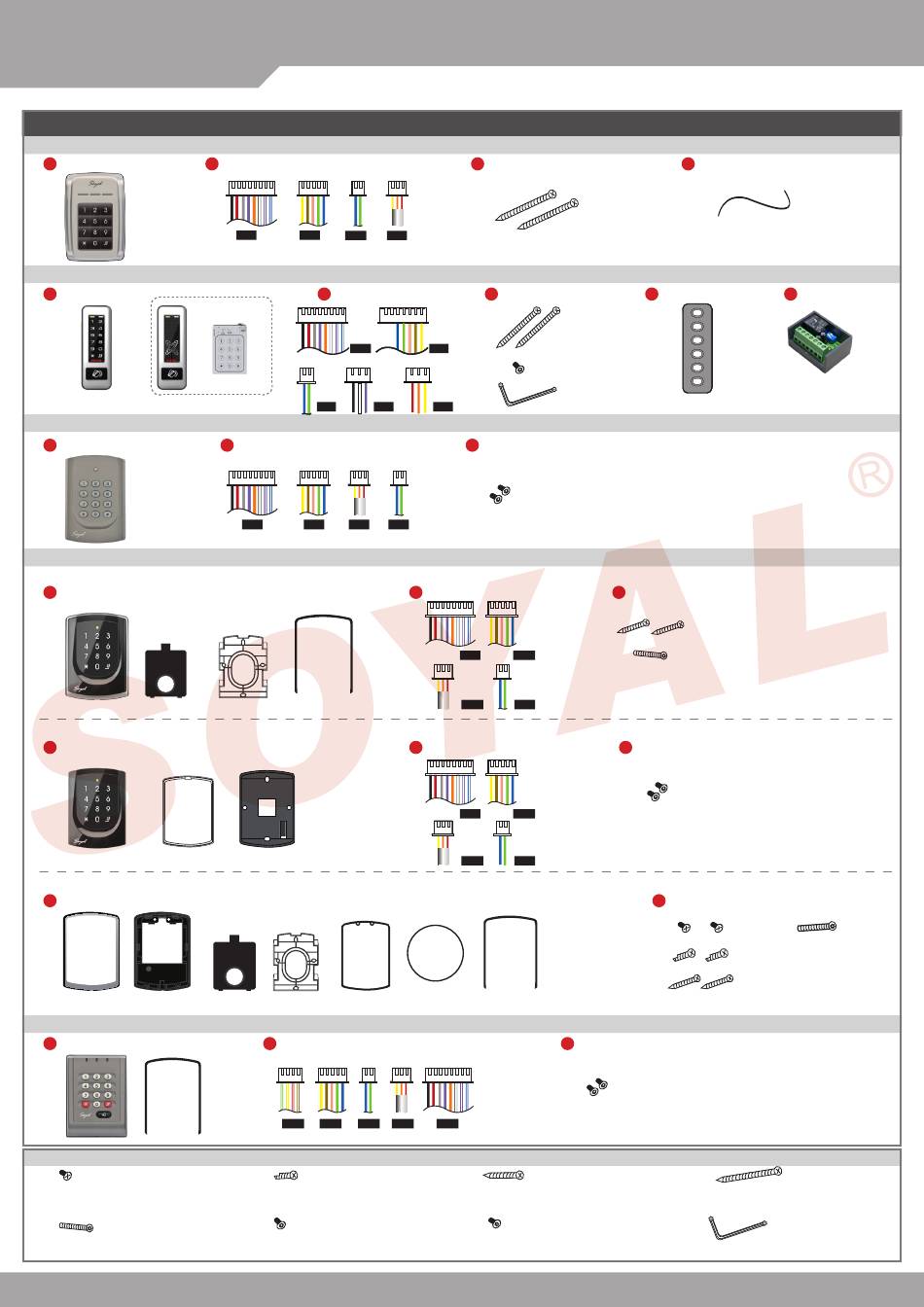

- Page 1 AR-321-H /AR-721-H/ AR-331-H SOYAL ® AR-725-H / AR-757-H V221226 ACCESS CONTROL SYSTEM Contents AR-321-H: Touch-panel Metal Housing Product Terminal Cables Tools Water proof Strip d x2 AR-331-H: Touch-panel Metal Housing / AR-331-H-S: Metal Housing ※ Additional external relay must be purchased.
