Soyal AR-327-E Manual

SOYAL
ACCESS CONTROL SYSTEM

Contents

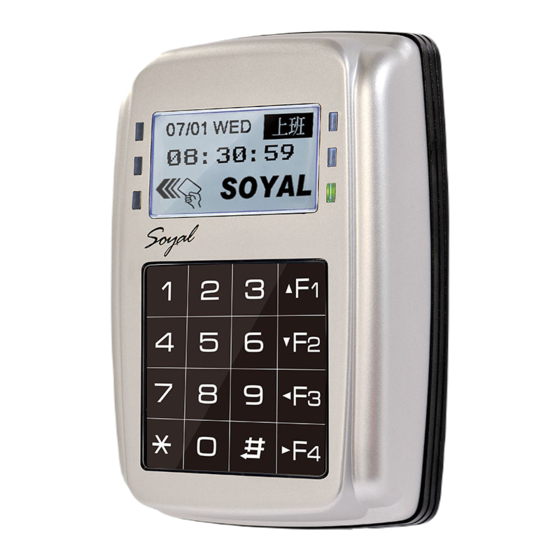

AR-327-E:Touch-panel Metal Case
1 Products 2 User Guide
AR-727-E
1 Products 2 User Guide

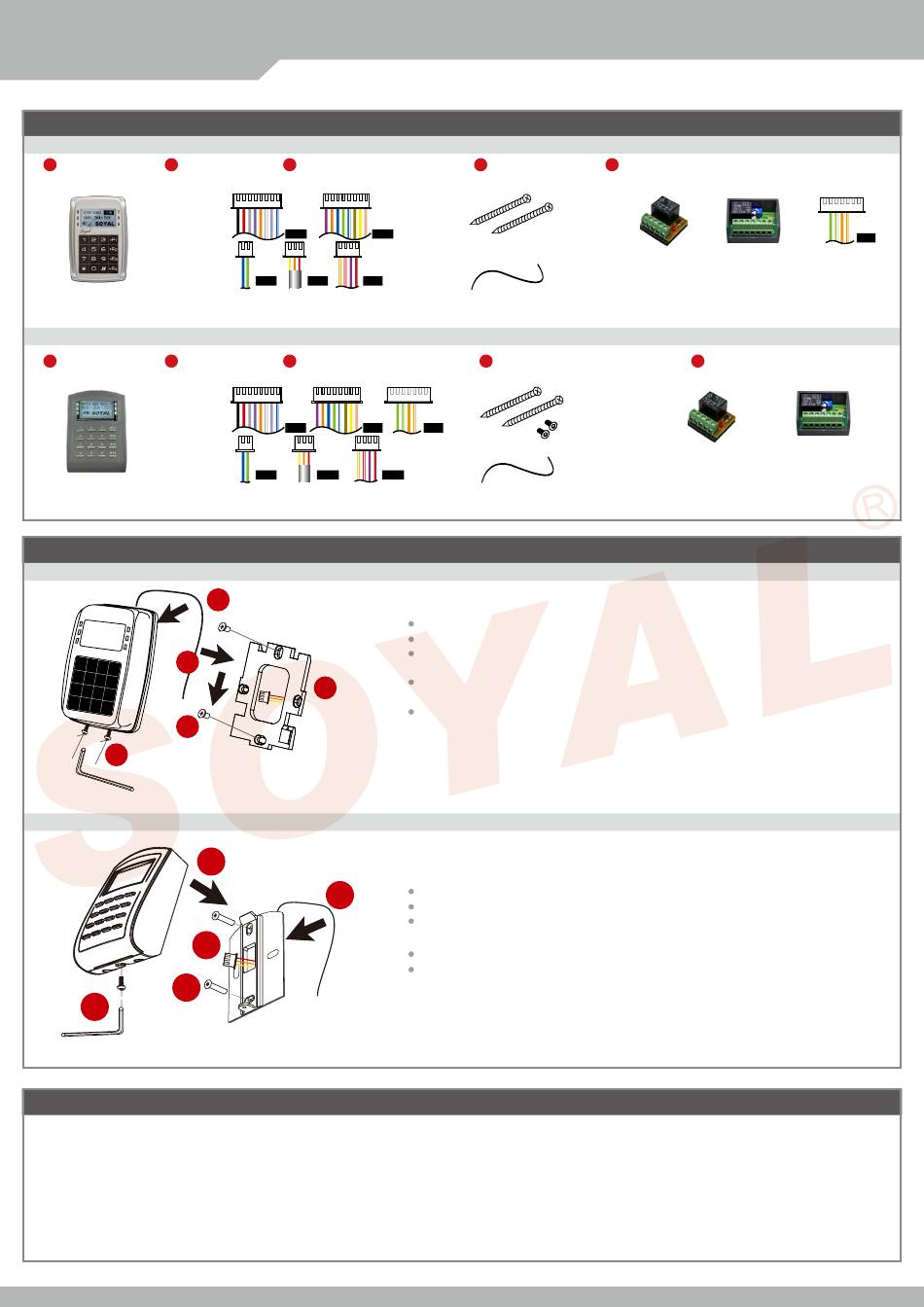

Installation
AR-327-E
4
2
5
AR-727-E
3
5
Notice
1.Tubing: The communication wires and power line should NOT be bound in the same conduit or tubing.
2.Wire selection:Use AWG 22-24 Shielded Twist Pair to avoid star wiring ,CAT 5 cable for TCP/IP connection. Don't equip reader and lock with the same power
supply. The power for reader may be unstable when the lock is activating, that may make the reader malfunction.
3.Power supply:The standard installation: Door relay and lock use the same power supply, and reader use independent power supply.
®
3 Terminal Cables
CN4 CN5
CN6 CN3 CN8
3 Terminal Cables
CN4 CN5
CN6 CN3
3
1
4
1
2
AR-327-E / 727-E
4 Tools
Water proof Strip
4 Tools
CN7
CN2
Water proof Strip
Pull the cables from the square hole of the mounting plate.
Use a screw to the mounting plate onto the wall.
Attach the water proof strip to the body, then connect the terminal cables to the body
and attach the body to the mounting plate.
Use the Allen key and screws (accessories supplied) to assemble the body onto the
mounting plate.
Turn on the power, the LED will light and hear the beep sound, you will see "Ready""
on LCD board.
Attach the water proof strip to the mounting plate.
Pull the cables from the square hole of the mounting plate.
Use a screwdriver to screw the base onto the wall.
Connect the terminal cables to the body and attach the body to the mounting plate.
Assemble the covers with the Allen key and screws (accessories supplied).
Turn on the power, the LED will light and hear the beep sound, you will see "Ready""
on LCD board.
5 Optional
AR-721RB
AR-821RB
Digital Relay
5 Optional
AR-821RB
V210809
CN7
TCP/IP Module
and Cable
AR-721RB
Digital Relay
