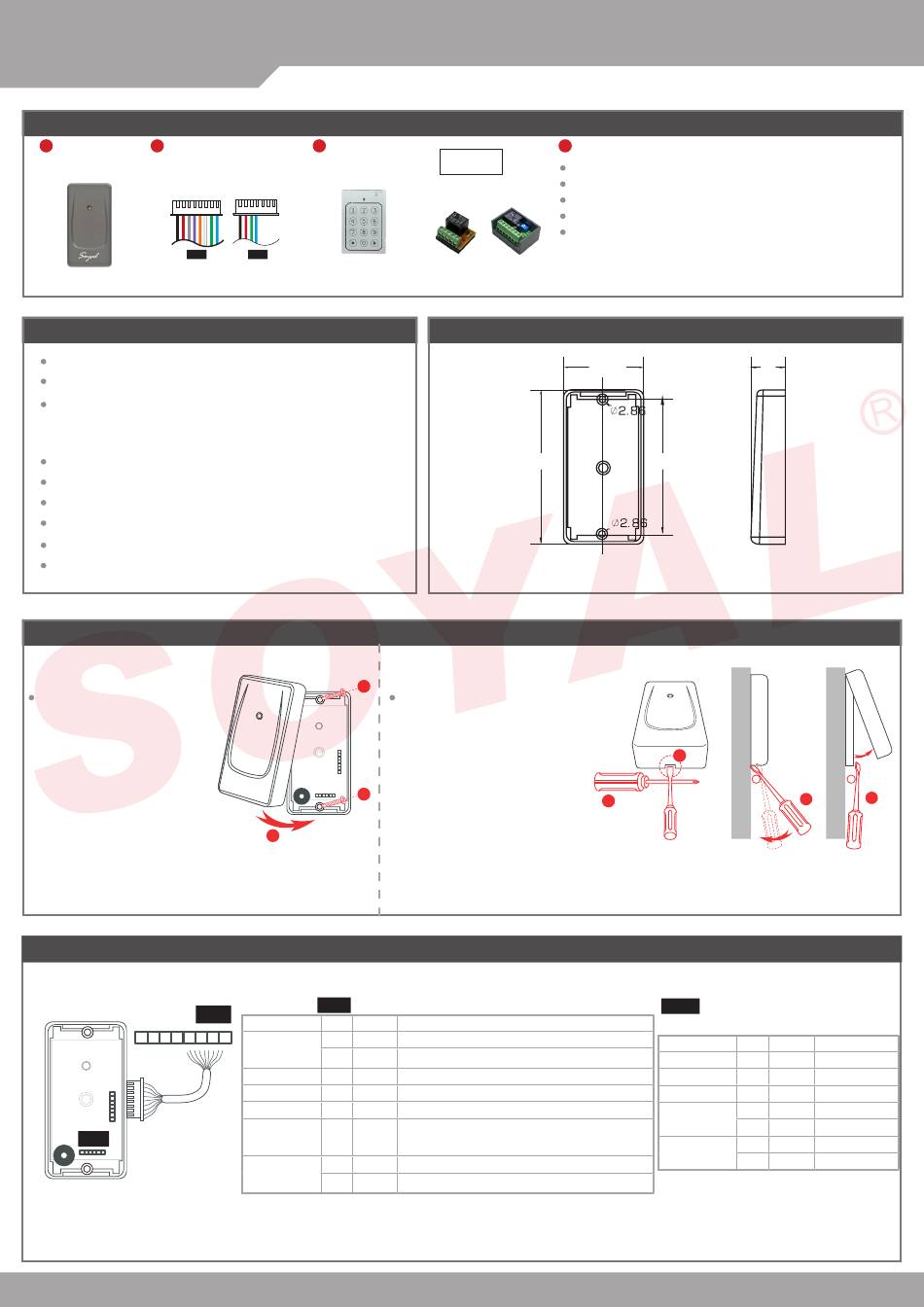

SOYAL
ACCESS CONTROL SYSTEM
Content & Feature
1
2
Product
Terminal Cables
CN1
Specification
RF Reading Range : 5-12 cm (125Khz ) / 2-8 cm(13.56Mhz)
DI : Egress / Door Status
Open Collect Output : Door Lock Output (share same terminal
with Security trigger signal Output) / Arming Output / Duress
Output / Alarm Output
Power Voltage : 9-24VDC
Power Consumption : <3W
Housing Material : ABS
Color : Black, Gray, Silver
Dimension (mm) : 81(H)X43(W)X18(D)
Net Weight(g) : 約40
Installation Procedure
Installation Procedure:
Step1.
Install the main body to the wall by two
screws (The screws are included in the
product and need to be found locally)
Step2.
Snap the front housing to the main
body to complete the installation.
Connector Table
8
7
6
5
4
LED
CN3
BZ
®
3
Optional
CN3
AR-WG-KEYBOARD
1
1
2
CN1
Networking:
8 PIN
CN1
Application Wire Color Description
1
Black DC 0V (GND)
3
2
1
Power
2
Red
Alarm Relay
3
Gray Open collector output
R.T.E
4
Purple Negative Trigger Input
Door Sensor
5
Orange Negative Trigger Input
Lock Relay
6
White
7
Green RS-485 B-
RS-485
8
Blue RS-485 A+

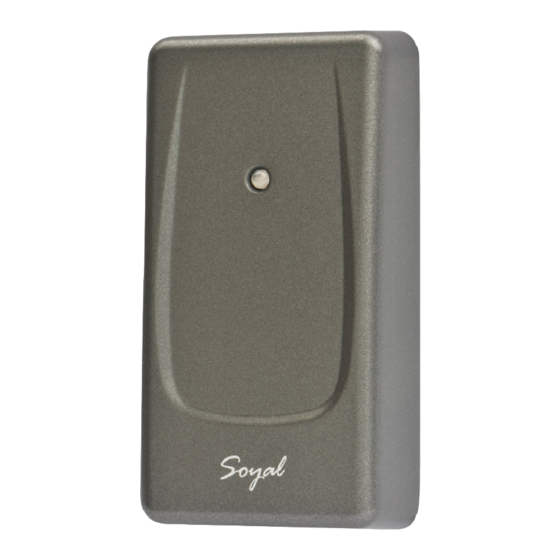

AR-723-H
4
Master Card x2
Slim design makes installation easy
MASTER CARD for adding / deleting tags
Set up parameters and user tags by external WG Keyboard
or
Built-in security digital opening signal
Built-in Watchdog to prevent from hanging up
AR-821-RB
AR-721-RB
Installation(mm)
80.23
(Front View)
Disassembly Tips:
Step1. Place the screwdriver
horizontally under the device
Step2. Put the flat-blade screwdriver
vertically above Step1, and align the
front end of flat-blade screwdriver into
the groove under the device.
Step3. Press the flat-blade screwdriver
hardly toward the wall
Step4. The front housing is
successfully removed
DC 9-24V
Lock GND
(Can wire relay output module externally or wire to electric
bolt lock AR-1207's P.T.Exit)
- 1 -
Feature
40.68
68.73
(Side View)
2
1
CN3
(RS-485)
WG-READER or KEYBOARD Socket
Application Wire Color Description
1
2
3
4
WG
5
6
Power
7
V221028
18
4
3
Blue WG DATA 1
Green WG DATA 0
Red
DC 9-24V
Black DC 0V (GND)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Soyal AR-723-H
Summary of Contents for Soyal AR-723-H
- Page 1 SOYAL ® AR-723-H V221028 ACCESS CONTROL SYSTEM Content & Feature Product Terminal Cables Optional Feature Master Card x2 Slim design makes installation easy MASTER CARD for adding / deleting tags Set up parameters and user tags by external WG Keyboard...
- Page 2 Access Controller V221028 Diagram Connect to Electric Strike Strengthen security with AR-721RB POWER Request To Exit POWER N.O. EXIT N.O. EXIT AR-723-H AR-723-H Request To Exit V-(GND) Diode N.C. AR-1207 V-(GND) AR-1207 Electric Electric Electric Strike Bolt Bolt P.T.Exit N.C.
- Page 3 SOYAL ® AR-723-H V221028 ACCESS CONTROL SYSTEM About Master Card MASTER CARD Setting for Stand-Alone AR-723-H Converter RS485 321CM Use the MASTER CARD software 323DMaster Input the MASTER CARD number, and press [Write]. Cut off and then transmit the power, the master card number will be activated.
- Page 4 Access Controller V221028 Operation process A. Enter/ Exit Program Mode Enter the program mode Input 123456 PPPPPP [e.g.] The Default Value= 123456, if already changed the Master Code= 876112, input 876112 → program mode accessed Exit the program mode Input Master Code modification Access programming mode →...
- Page 5 ※ Read the [Command List-Arming /Duress Function Setting] below to modify arming PWD. ※ M6 is Standalone Mode, the mode is without Arming /Duress Function. More Details: SOYAL Security Related Function Compound Command Function List Weighted Value Manual : Step 1: Step 2: Select the "Function"...
- Page 6 Access Controller V221028 ※Default Value Function Selection Value Application Dual Door Control ※0: Disable 1: Enable 064 Networking/Stand-Alone Force Open Alarm Output ※0: Disable 1: Enable 128 Networking/Stand-Alone ※Default Value Function Selection Value Application Enable the RF after door sensor closed to GND ※0: Deactivate 1: Activate Networking/Standalone...
- Page 7 SOYAL ® AR-723-H V221028 ACCESS CONTROL SYSTEM Function Description Command Control mode setting N=4: M4; N=6: M6; N=8: M8 Pass by Card or PIN; Card or PIN (M4/M8) UUUUU=User Address;????=4-digit PIN (0001~9999); UUUUU ???? Modify the PIN with user address, change...
