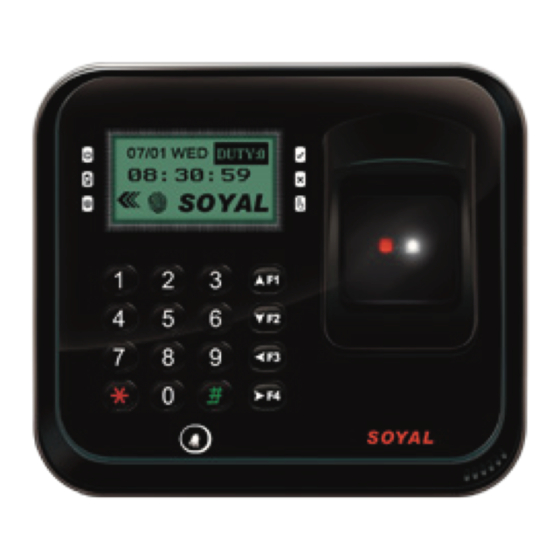

AR-837-EL:
1 Products
Key Features
Support both 125kHz and 13.56MHz dual frequency RFID
Scan QR Code to easily open the door!
Support Date Limit or Frequency limit of QR Code access, with higher security!
Scan QR Code image on smartphones or printed on paper, with E Series controller to quickly scan QR Code
It is convenient for you to obtain the permission of access control, not only able to scan QR Code, but also supports EM and Mifare cards.
It is suitable for places that require the use of regular and short-term access, such as visitor systems, temporary building permit, dormitory,
suite management, and etc.
Specification
QRCode supported format:
(The standard firmware supports QR Code format as below and other
QR Code format can be supported by customized firmware.)
QRCo08A12345678
QRCo10A1234567890
QRCo14A12345678901234
QRCo55W1234556789
QRCo08H33CDAB88
QRCo16H001122334455667788
Type of Bar
Density Min. distance
Code
0.125 mm
(5 mils)
Code 39
0.375 mm
(15 mils)
0.375 mm
UPC/EAN
(15 mils)
0.254 mm
Code93
(10 mils)

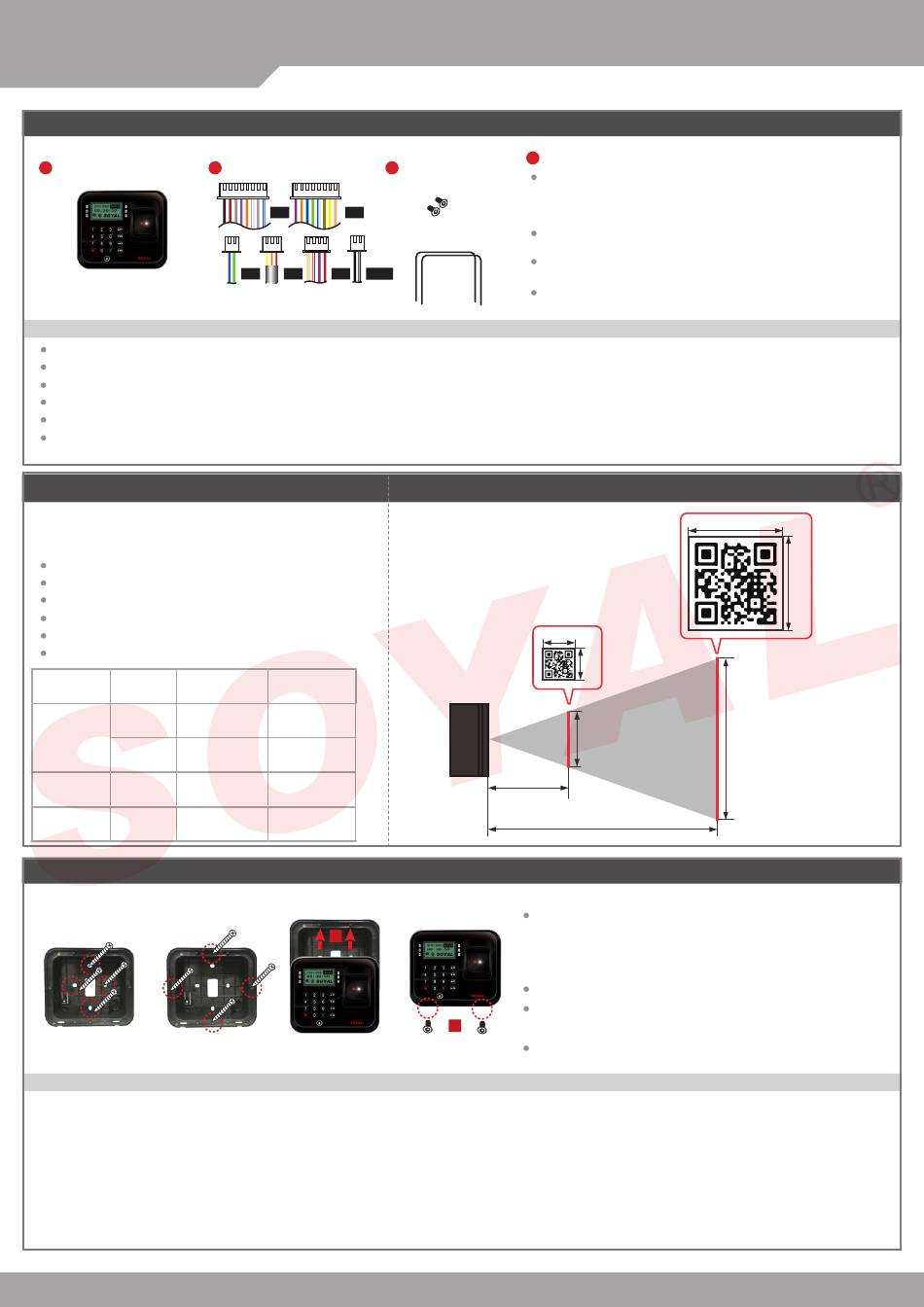

Installation
A-1.Surface A-2.Embedded
Mounted
or
Notice
1.Tubing:
The communication wires and power line should NOT be bound in the same conduit or tubing.
2.Wire selection: Use AWG 22-24 Shielded Twist Pair to avoid star wiring, CAT 5 cable for TCP/IP connection
3.Power supply: Don't equip reader and lock with the same power supply. The power for reader may be unstable when the lock is activating, that may cause a
malfunction in the reader.
The standard installation: Door relay and lock use the same power supply, and reader should use another independent power supply.
®
2 Terminal Cables
CN4 CN5
CN6 CN3 CN8 CN13
Max. distance
4.0 cm 9.0 cm
4.0 cm 25.0 cm
4.0 cm 25.0 cm
4.0 cm 21.0 cm
B.
1
AR-837-EL
4 Optional
3 Tools
Ethernet : DMOD-NETMA10
Screws
Any Wiegand Output Module (CN10)
Water proof Strip X2
AR-MDL-721V
(Voice Module)
AR-321L485-5V
(TTL to RS-485 Converter)
QR Code Scan Area
Testing under lowest intensity
of illumination (250 lux)
2CM
QR Code Module
3CM
A-1.Surface Mounted: Use a screwdriver to screw the mounting plate
to the wall. A-2.Embedded: To dig a hole for
AR-837-EL:128mmx109mm; and then, use a screwdriver to screw the
mounting plate to the wall.
Pull cable ends through the access hole in the mounting plate.
Attach AR-837-EL to the mounting plate and install screws (supplied)
2
into the holes at the bottom with the allen key.
Apply power. LED (green) will light up with one beep.
1
(TCP/IP Module included RJ45 Connector)
or
DMOD-NETMA11
(TCP/IP Module with POE function)
6CM
2CM
2CM 6CM
8.5CM
