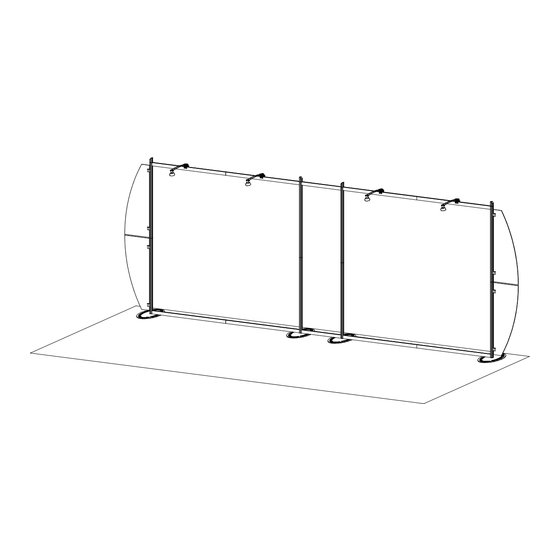

Classic Exhibits SACAGAWEA DESIGNS VK-2101 Manual

Classic Exhibits SACAGAWEA DESIGNS VK-2101 Manual

Advertisement

Quick Links

Step 1

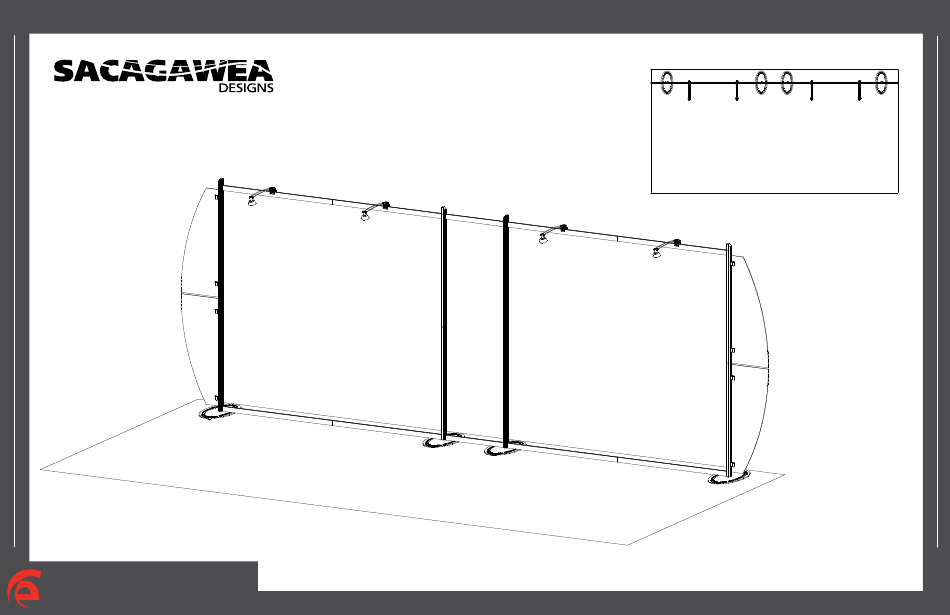

Order #xxxxx - Sacagawea - VK-2101 - General Layout
866.652.2100
10'
Plan View
20'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the SACAGAWEA DESIGNS VK-2101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits SACAGAWEA DESIGNS VK-2101

  • Page 1 Step 1 Order #xxxxx - Sacagawea - VK-2101 - General Layout 866.652.2100 10’ Plan View 20’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 3...
  • Page 2 Step 2 Order #xxxxx - Sacagawea - General Information 866.652.2100 Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
  • Page 3: Back View

    Step 1 Order #xxxxx - Sacagawea - Backwall Assembly 866.652.2100 Steps: 1) Attach base plates [1] to lower verticals [2a,3a,2c,3c] with bolts. 2.5”h Angle-Cut 2) Connect upper verticals [2b,3b,2d,3d] to lower verticals [2a,3a,2c,3c] with connection bars [b]. Vertical Attachment 3) Connect horizontals [4a,4b] and [5a,5b] with connection bars [a]. 4) Connect vertical assemblies [2a/2b,3a/3b,2c/2d,3c/3d] with horizontal assemblies [4a/4b,5a/5b] Tighten setscrew and horizontals [4c,5c] as shown.
  • Page 4 Step 2 Order #xxxxx - Sacagawea - Wing Attachment 866.652.2100 Steps: Light Connection 1) Attach lights as indicated. Attach lights to 2) Attach wings to A10 clamps as shown. backwall where desired and tighten in place. Wing Attachment Slide A10 Clamp into groove of square extrusion.
  • Page 5 Order #xxxxx - Case Packing Instruction 866.652.2100 Top View of each level Setup Hardware Wing Panels Lights Graphics Base Plates Level 2 Level 1 Level 3 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
