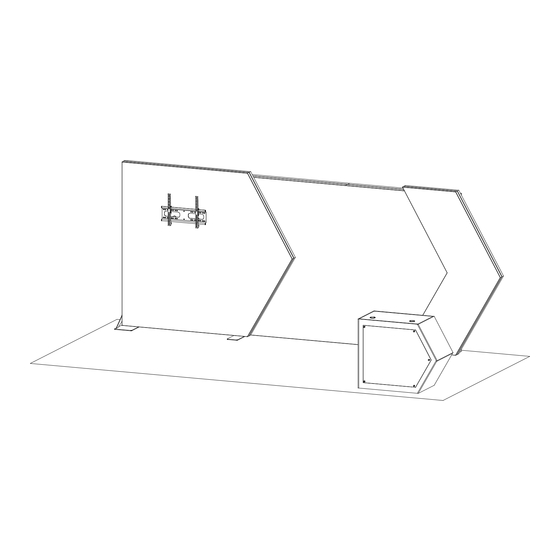

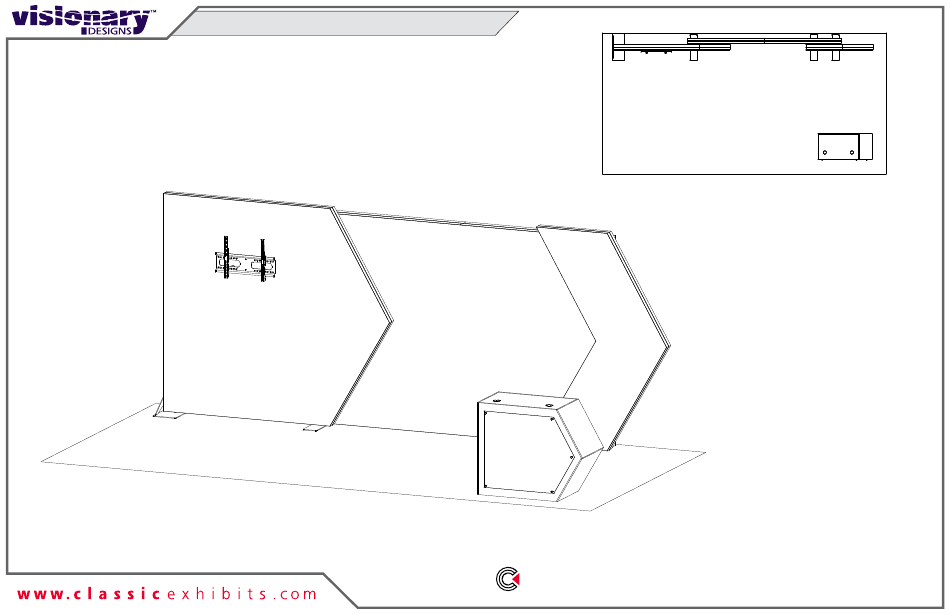

- Page 1 © 2022 Order #XXXXX VK-4022 - 10’ x 20’ Display SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2022 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2022 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2022 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2022 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2022 Order #XXXXX Middle Lightbox Assembly Item Qty. Description Steps: 87”h CEI110 Vertical Extrusion Refer to the CEI110 Frame Assembly general information page. 87”h CEI110 Vertical Extrusion 65”w CEI110 Horizontal Extrusion 1) Assemble horizontals [3-4], [5-6] together using straight connectors 65”w CEI110 Horizontal Extrusion 2) Attach verticals [1,2] between horizontal assemblies [3/4], [5/6] using 65”w CEI110 Horizontal Extrusion...
- Page 7 © 2022 Order #XXXXX Lightbox Wiring Steps: 1) Connect power cords to Supernova lights in lightbox assembly, as shown. Place transformers into U-Channels. Power Power Break Break U-Channel Attachment Slide V4 connectors into middle groove of bolts horizontal extrusion Tighten set screws to secure.
- Page 8 © 2022 Order #XXXXX Left Frame Assembly Item Qty. Description Steps: 90”h CEI110 Vertical Extrusion Refer to the CEI110 Frame Assembly general information page. 51.962” CEI110 angled Extrusion 51.962” CEI110 angled Extrusion 1) Assemble angled extrusions [12-13] together using 120° corner connectors. 73”w CEI110 Horizontal Extrusion 2) Attach horizontals [14,15] to vertical assembly [12/13] using 120°...
- Page 9 © 2022 Order #XXXXX Right Frame Assembly Item Qty. Description Steps: 53.015” CEI110 angled Extrusion Refer to the CEI110 Frame Assembly general information page. 53.015” CEI110 angled Extrusion 51.962” CEI110 angled Extrusion 1) Assemble angled extrusions [19-20] together using 240° corner connectors. 51.962”...
- Page 10 © 2022 Order #XXXXX Frames Connection & Graphics Item Qty. Description 6” x 22” Base Plate Standoff Barrel Connection r a p Slide V4 connector into groove h i c of GS300 extrusion. Secure in place with set screw. screw Attach Standoff Barrel When assembled to V4 connector.
- Page 11 © 2022 Order #XXXXX Frames Connection & Graphics (cont’d) Item Qty. Description 6” x 22” Base Plate 6” x 22” Base Plate Standoff Barrel Connection Slide V4 connector into groove of GS300 extrusion. Secure in place with set screw. screw Attach Standoff Barrel When assembled to V4 connector.
- Page 12 © 2022 Order #XXXXX Backwall Attachments Steps: 1) Attach Monitor Mount to verticals [16,17]. Monitor Mount Attachment detail. Monitor Mount Attachment Completed Assembly Attach Stand-off barrels to vertical extrusions. Stand-Off Stand-Off Barrels Barrels Monitor Mount Bolts Monitor S E G G ra p h ic Mount Connect Monitor Mount to Standoff Barrels...
- Page 13 © 2022 Order #XXXXX MOD-1589 Reception Counter wireless chargers Item Qty. Description Steps: 3.5” Standoff Barrel w/ cap 1) Connect power cords to Supernova lights inside Counter Unit. 2) Attach power cords to wireless chargers in counter top. 3) Connect graphic to front of Counter, using standoffs & caps. Graphic Attachment detail.
