Introduction
Feature
Line pull:
Wire rope:
Brake:
Clutch:
Control:
Unpacking
．Winch assembly................................................................... 1 pc
．Bridge control box.................................................................. 1 pc
．Remote control.................................................................... 1 pc
．Wire rope with hook.............................................................. 1 pc
．Roller fairlead...................................................................... 1 pc
．1.8 m (6') 2 gauge battery lead............................................... 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.

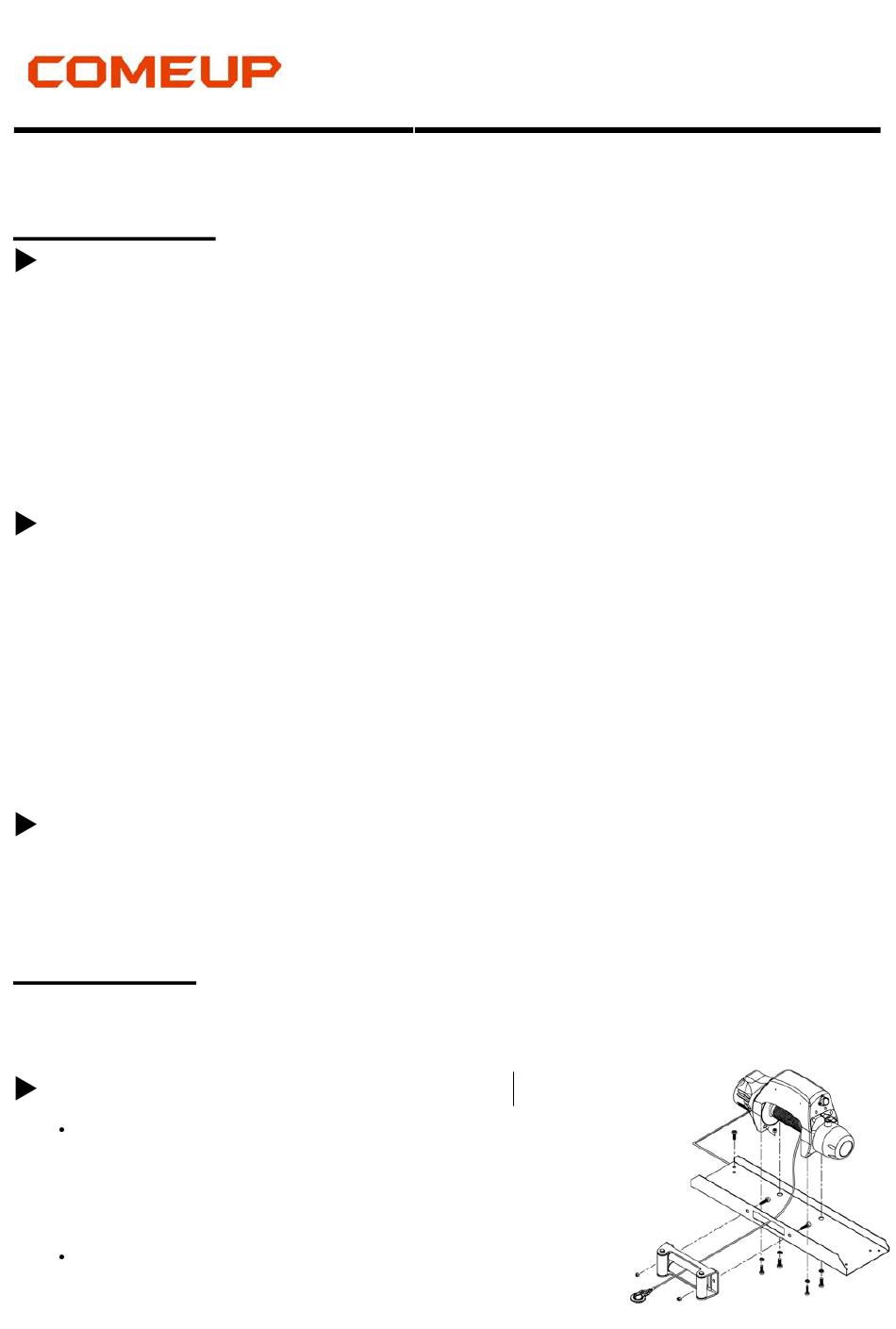

Winch and roller fairlead mountings
It is very important that the winch will be
mounted on a flat and hard surface of mounting
channel in order to make sure the motor, drum
and gearbox housing are aligned correctly.
Roller fairlead does not mount to the winch
directly.
4,309 kg / 9,500 lb wire rope first layer
8.7 mm × 30.5 m (11/32"×100') galvanized aircraft A7 × 19
Patented cone brake holds full load
Turn the T-handle for rapid wire rope payout
Handheld pendant switch powers the winch

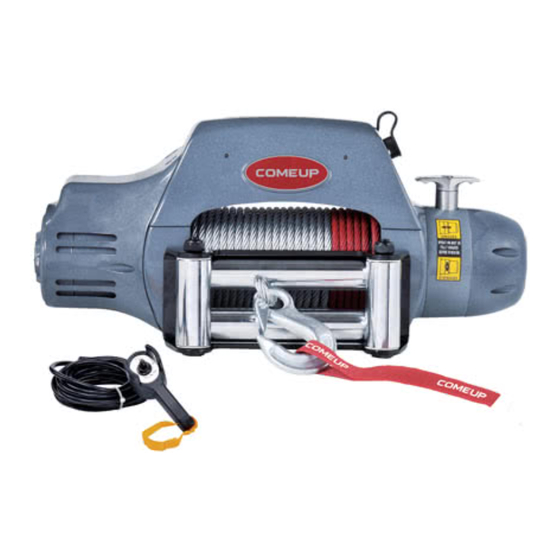

Self-Recovery Winch
Seal DS-9.5i
Model:
PN: 299368 12V DC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comeup Seal DS-9.5i
Summary of Contents for Comeup Seal DS-9.5i
- Page 1 Self-Recovery Winch Seal DS-9.5i Model: PN: 299368 12V DC Introduction Feature Line pull: 4,309 kg / 9,500 lb wire rope first layer Wire rope: 8.7 mm × 30.5 m (11/32"×100′) galvanized aircraft A7 × 19 Brake: Patented cone brake holds full load...
- Page 2 The wire rope shall be wound in an under-wound orientation only. Four (4) M10 x 1.50 pitch 8.8 grade high tensile steel bolts must be used in order to sustain the loads imposed on the winch mounting. Two (2) M12 x 1.75 pitch 8.8 grade high tensile steel bolts must be used for fastening the roller fairlead into the mounting channel.
- Page 3 Parts List Ver:0 Item No. Description Part No. Motor 12V 881483 Tie bar kit 880349 Motor support rack 881562 Motor coupling 880005 Drum bushing 880006 Drum kit 880109 Gearbox support rack 881563 Grounding lead 880009 Wire rope w/hook 880112 shaft 880011 ring gear kit 880114...
- Page 4 Winch Assembly...
