Comeup DV-9 Manual

Introduction

Feature

Line pull:
Wire rope:
Brake:
Clutch:
Control:

Unpacking

．Winch assembly...............................................................
．Control box........................................................................
．Remote control................................................................
．Wire rope with hook..........................................................
．Roller fairlead..................................................................
．1.8 m ( 6' ) 2 gauge battery lead..........................................
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
Winch and roller fairlead mountings
． It is very important that the winch will be mounted
on a flat and hard surface of mounting channel in
order to make sure the motor, drum and gearbox
housing are aligned correctly.
． Roller fairlead does not mount to the winch directly.
． The wire rope shall be wound in an under-wound
4,082 kg / 9,000 lb wire rope first layer
8.3 mm × 30.5 m (21/64" × 100') galvanized aircraft A7 × 19
Patented cone brake holds full load
Turn the T-handle for rapid wire rope payout
Handheld pendant switch to power the winch

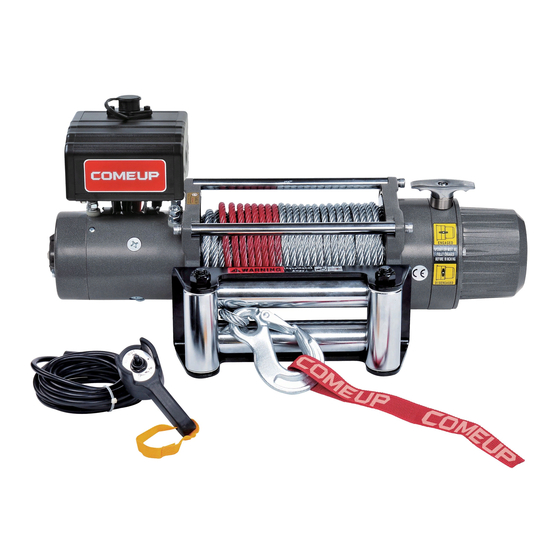

Self-Recovery Winch
Model:
DV-9
PN: 856329 12V DC
856355 24V DC
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
