Comeup CP-750T Wiring Diagram

Introduction

 Feature
Lifting capacity: 750 kg wire rope top layer
Lifting height: 58 m
Lifting speed: 10-15 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 9 mm x 60 m w/hook
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

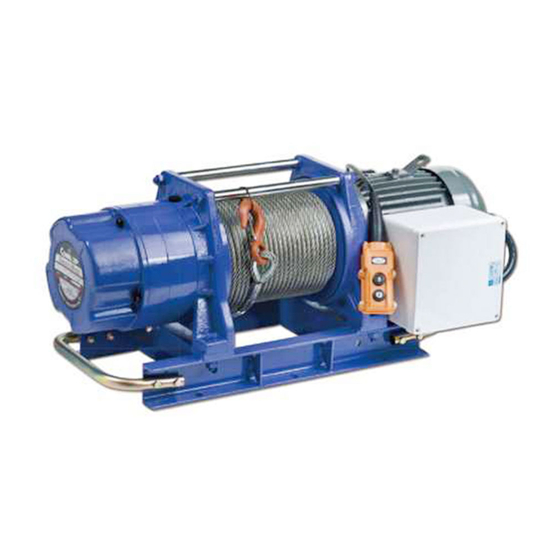

Electric Winch
CP-750T
Model:
PN: 157555 380V50Hz 157730 400V50Hz
157688 415V50Hz 157690 415V50Hz
1pc
1pc
1pc
2
x 3C x 3 m 1pc

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size (mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load
50Hz 1,188
(kg)
st nd
1 2
Speed
50Hz 10
Layer Layer
(m/min)
Rope-Winding Cumulating
9.9
Sum (m)
Rated Load
50Hz 826
(kg)
th th
4 5
Speed
50Hz 13.8
Layer Layer
(m/min)
Rope-Winding Cumulating
48.5
Sum (m)
 Wiring Diagram
CP-750T
2.2 x 4
9
3,750
Rated Load Rated Load
50Hz 1,036
(kg) (kg)
rd
3
Speed Speed
50Hz 11.0
Layer
(m/min) (m/min)
Rope-Winding Rope-Winding
21.3
Cumulating Sum (m) Cumulating Sum (m)
Rated Load
50Hz 750
(kg)
Speed
50Hz 15
(m/min)
Rope-Winding
60
Cumulating Sum (m)
50Hz 920
50Hz 12.4
34.2
