Introduction
Feature
st
Line pull (1
Line speed (1
Operation pressure:
Brake:
Clutch (free spool):
Recommended
wire rope:
Hydraulic system:
Read this manual carefully
Carefully read and understand this manual before operating the winch.
Careless winch operation may result in personal injury, danger to others and
or damage to property
Information requesting or parts ordering
Please specify the followings information:
W inch PN
．
P art description
．
Q uantity for each part
．
Installation
Before using the winch ensure all electrical components are in good
condition and all connections are sound.
Mounting
． ． ． ．
W inch shall be mounted on a flat and hard
surface.
． ． ． ．
W inch should be mounted as close to centre
and as perpendicular as possible to the
direction of the line pull.
． ． ． ．
W ire rope shall be wound in an under-wound
orientation only.
4,535 kg / 10,000 lb ( SAE J706 rating )
layer):
4,300 kg ( EN 14492-1 rating ) first layer of rope
st
14 mpm at 60 l / min
layer):
150 bar / 2,175 psi
Drag brake and over-centre valve provided for full
100% braking
Pull and turn extended T-handle for rapid wire
rope payout
11 mm x 27 m, 1960 N/mm2 grade,
A minimum breaking strength of 84.4 KN required
PTO/power take off unit driven pump

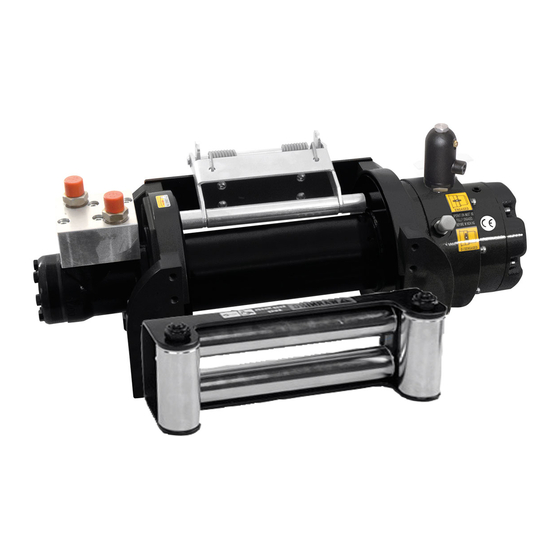

Hydraulic Recovery Winch
S erial number
．
P art number
．
HV-10
Model:
PN: 682546
Advertisement
Table of Contents
Related Manuals for Comeup HV-10
Summary of Contents for Comeup HV-10
- Page 1 Hydraulic Recovery Winch HV-10 Model: PN: 682546 Introduction Feature 4,535 kg / 10,000 lb ( SAE J706 rating ) Line pull (1 layer): 4,300 kg ( EN 14492-1 rating ) first layer of rope 14 mpm at 60 l / min...
- Page 2 Then you can rewind for a neat layer of the rope. Compliance with EN 14492-1 The winch HV-10 complies with European Standard of EN-14492:2006 Power-Driven Winches and the latest Machinery Directive: 2006/42/EC provided that the OWNER or END USER complies with all responsibilities described below.
- Page 3 T he rope shall remain with at least 5 wraps on the drum at all times Warranty Comeup Industries Inc. takes the responsibility for all parts and components to be free from defects in materials and workmanship appearing under normal use for one year from the date of purchase.
- Page 4 Winch Assembly...
