Comeup CWL-200 Quick Start Manual

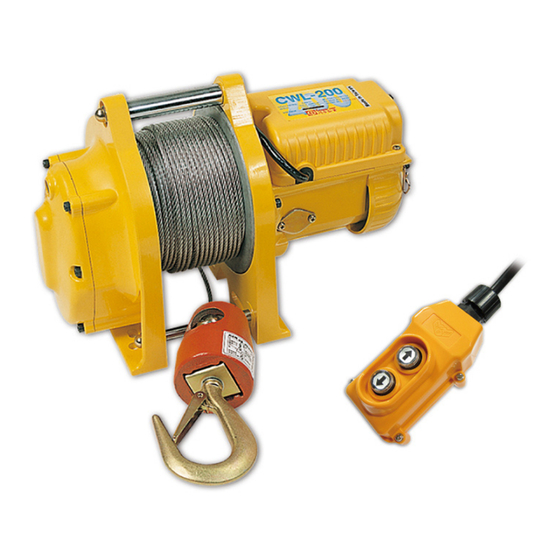

Compact winch
Hide thumbs Also See for CWL-200:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

Introduction

Feature

Lifting capacity:
Lifting height:
Lifting speed:
Motor output:
Brake:
Control:

Unpacking

．Winch assembly
．Wire rope 5 mm x 46 m with weight hook CHW-0031
．Power lead 1.5 mm
．Pendant switch
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
200 kg wire rope top layer
45 m
11 – 16 m/min
1.5kw x 7.5A at 220-240V
Electromagnetic and mechanical ratchets
Pendant switch powers the winch
2
x 3C x 3 m and plug
PB-317
w/cord 1.25 mm
Compact Winch
CWL-200
Model:
PN: 372400 220V 371160 230V
2
x 6C x 10 m
372588 240V
1pc
1pc
1pc
1pc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWL-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comeup CWL-200

Summary of Contents for Comeup CWL-200

  • Page 1 Compact Winch CWL-200 Model: PN: 372400 220V 371160 230V 372588 240V Introduction Feature Lifting capacity: 200 kg wire rope top layer Lifting height: 45 m Lifting speed: 11 – 16 m/min Motor output: 1.5kw x 7.5A at 220-240V Brake: Electromagnetic and mechanical ratchets...
  • Page 2 Installation Before using the winch, make sure all electrical components have no corrosion or damaged; the environment should be clear and dry. Wire rope replacement ． Insert the wire rope into the hole of drum and fix it with a P. T. screw, then press the "UP"...
  • Page 3 Warning ． The winch is not intended to be used in any manner for the movement or lifting of personnel. ． The lifting capacity shown is based on the top layer of rope on the drum. ． The rope winding on the drum shall remain 5 wraps from the drum. Parts List Item No.
  • Page 4 Winch Assembly...

This manual is also suitable for:

372400371160372588
