Winch Assembly
Introduction
Feature
Lifting capacity:
200 kg wire rope top layer
Lifting height:
29 m
Lifting speed:
10-15 m/min at 50Hz
Brake:
Electromagnetic spring-applied failsafe brake
Control:
Pendant switch powers the winch
Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m
．Wire rope 5 mm x 45 m for PN :152222
．Weight hook CHW-0031
2
．Power lead 1.5 mm
x 3C x 3 m and plug
．Pendant switch w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

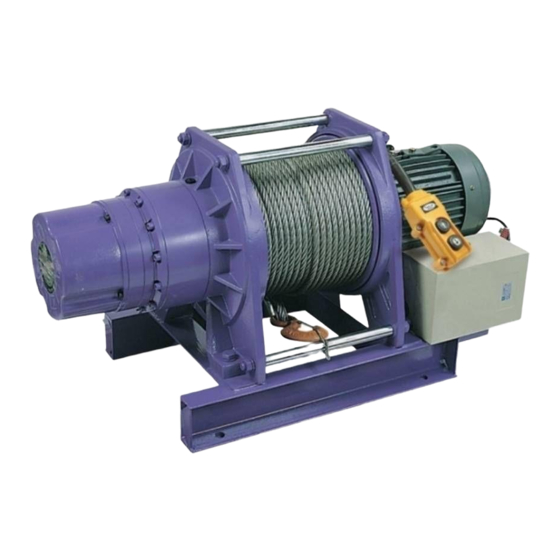

Electric Winch
CP-200
Model:
PN : 152363 220V50Hz 152222 220V50Hz
PN : 152349 230V50Hz 152456 240V50Hz
2
x 5C x 3 m
1pc
1pc
1pc
1pc
1pc
1pc
Advertisement
Table of Contents
Related Manuals for Comeup CP-200
Summary of Contents for Comeup CP-200
- Page 1 Winch Assembly Electric Winch CP-200 Model: PN : 152363 220V50Hz 152222 220V50Hz PN : 152349 230V50Hz 152456 240V50Hz Introduction Feature Lifting capacity: 200 kg wire rope top layer Lifting height: 29 m Lifting speed: 10-15 m/min at 50Hz Brake:...
- Page 2 ． The lifting capacity shown is based on the top layer of rope on the drum. Performance ． The rope winding on the drum shall remain 5 wraps from the drum. Winch Model CP-200 Parts List Motor kw x p 0.6 x 4...
