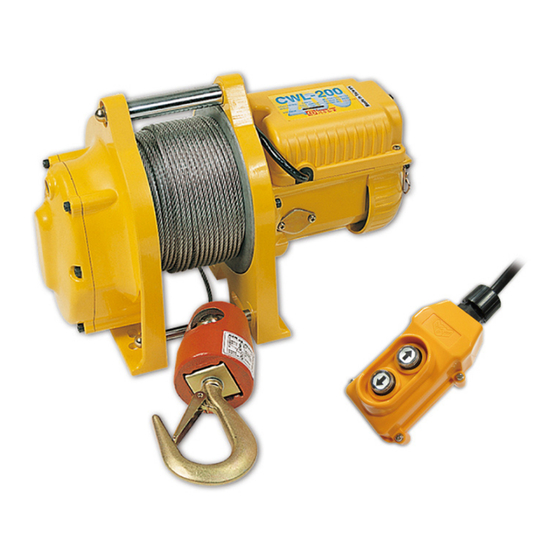

Comeup CWL-200L Quick Start Manual
Longer rope compact winch
Hide thumbs
Also See for CWL-200L:
- Instruction manual (20 pages) ,
- Instruction manual (14 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Motor output:
Brake:
Control:
Unpacking
．Winch assembly
．Wire rope 5 mm x 71 m with weight hook CHW-0031
．Power lead 1.5 mm
．Pendant switch
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement Part number
．Quantity for each part
Longer Rope Compact Winch
200 kg wire rope top layer
69 m
11 – 16 m/min
1.2kw x 12A at 110V ; 1.5kw x 7.5A at 220-240V
Electromagnetic and mechanical ratchets
Pendant switch powers the winch
2
x 3C x 3 m and plug
PB-317
w/cord 1.25 mm
CWL-200L
Model:
PN: 372846 110V 372992 220V
372856 240V 373134 230V
373436 240V 375433 240V
2
x 6C x 10 m
1pc
1pc
1pc
1pc
