1
Limited One (1) Year Warranty
WARRANTY
Comeup Industries Inc. (COMEUP) warrants to the original purchaser that COMEUP Industrial
Winch will be free of defects in material and workmanship for a period of one (1) year from the
original date of purchase. All COMEUP mounting kits and other accessories carry a one (1) year
limited warranty against defects in material workmanship.
This warranty applies only to the original purchaser of the winch. To obtain any warranty service,
the purchaser under this Limited Warranty is requested to advise COMEUP or its authorized
distributors on any claim. The purchaser must provide a copy of the purchase receipt bearing the
winch serial number, date of purchase, owners name, email or Tel & Fax, address and purchaser
vehicle details. Any products that COMEUP determines to be accountable for defective will be
repaired or replaced or refund at COMEUP sole discretion without charge to buyer upon buyer's
compliance with these procedures. In the event of repair or replace, purchaser must send the
defective winch or part, with freight prepaid, to COMEUP or its authorized distributor. And COMEUP
will send the serviced product back to purchaser on COMEUP's cost. This warranty does not cover
the removal or reinstallation of the winch.
COMEUP takes the responsibility for COMEUP winch parts and components to be free from
defects in materials and workmanship, but the following portions are hereby excluded and
disclaimed. COMEUP or its authorized distributors may make reasonable charges for parts and
labour for repairs or resumption in the following portions not covered by this limited warranty.
(1). All warranties of wire rope assembly after initial use
(2). All warranties of fitness for a particular purpose
(3). All warranties of the product's finish
(4). All warranties of merchantability
The limited warranty does not cover any failure that results from improper installation/operation,
third party part substitution, purchaser's alteration or modification on COMEUP winch. This warranty
is void when COMEUP serial number plate is removed or defaced.
COMEUP's liability to the purchaser under the winch purchases for any loss or damage
howsoever and whatsoever arising shall not exceed the price of the initial winch purchase receipt.
COMEUP shall not in any event be liable to the purchaser for any consequential and/or indirect loss
or damage whether for loss or for profit or otherwise, costs, expenses or other claims for
consequential compensation whatsoever and whether caused by negligence of COMEUP
employees, distributors and their employees or otherwise. COMEUP reserves the right to change
product design without notice. In situations in which COMEUP has changed a product design,
COMEUP shall have no obligation to upgrade or otherwise modify previously manufactured
products.
2
Industrial Winch

Advertisement

Table of Contents
loading
Need help?

Need help?

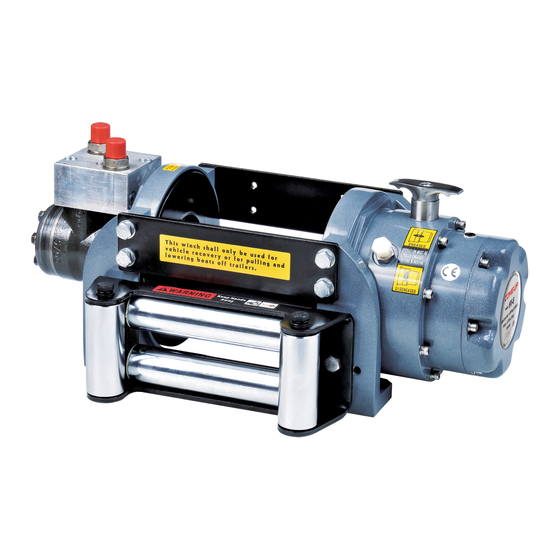

Do you have a question about the HV-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comeup HV-8

  • Page 1 COMEUP shall not in any event be liable to the purchaser for any consequential and/or indirect loss or damage whether for loss or for profit or otherwise, costs, expenses or other claims for consequential compensation whatsoever and whether caused by negligence of COMEUP employees, distributors and their employees or otherwise.
  • Page 2: Safety Requirement

    The operator of a winch in some cases is required to have qualifications according to applicable laws and ordinances. Thank you for purchasing a COMEUP Winch. This manual covers operation and maintenance of Check all safety and environmental conditions prior to and during the winch.
  • Page 3: Hydraulic System Installation

    II. Hydraulic System Installation Hydraulic Reservoir (Powered by PTO / power take off unit driven pump) The hydraulic reservoir has sufficient capacity to provide good heat dissipation in order to prevent over-heating of the hydraulic fluid. Must be fitted with an oil filler device comprising strainer and filter and a dip stick. The capacity of the tank should be at least 60 liters.
  • Page 4 Calculating Fleet Angle Securing Anchor Point To obtain the best wire rope service, the direction of pull will be on a horizontal within ±3 Select a safe and firm anchor point. The usual point is a tree, stump or rocks, but if using a degrees and perpendicular to be centerline of the winch drum within ±3 degrees.
  • Page 5: Standards Compliance

    V. Standards Compliance Cable Tensioner Comeup Industrial Winches comply with the following regulations The purpose of cable tensioner device is to keep the wire 1. European Standards of EN 14492-1 for Power Driven Winches came to effect from 29...
  • Page 6: Hydraulic Operation

    1). Apply air pressure to the 125-27 NPT port with 80 psi at minimum to 150 psi at maximum. 2).To disengage the drum by operating the air control valve to pull out the wire rope by hand. Pull HV-8 0.3 litre 0.12 litre...
  • Page 7: Maintenance Schedule

    “free-spooling” and it will not be replied on to control or hold a load Ensure that a responsible person carries out all inspections as per schedule. 2. The drum drag brake is only available for HV-8/10. Inspections are dived into Daily, Monthly and Quarterly.
  • Page 8: Troubleshooting Chart

    X. Trouble Shooting Symptom Possible Causes Remedy Remove and disassembly motor and examine all Motor may be damaged For Hydraulic Winch parts and replace any that are worn or damaged No oil supply to winch Check oil supply line connections and hoses In most cases, the cause of malfunction is found in the hydraulic system.

This manual is also suitable for:

Hv-10Hv-12Hv-15Hv-20000Hv-30000Yak5 ... Show all
