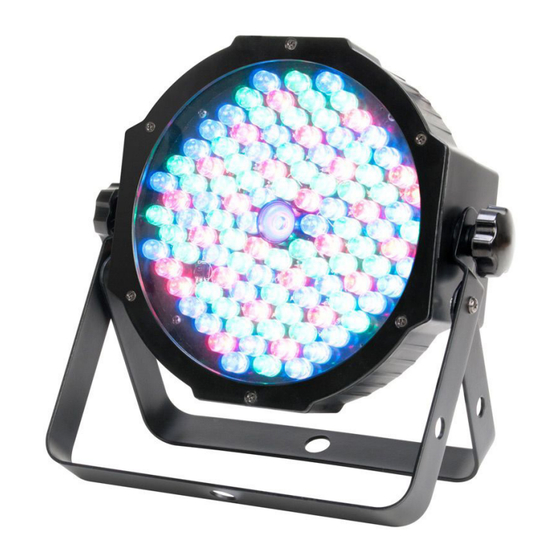

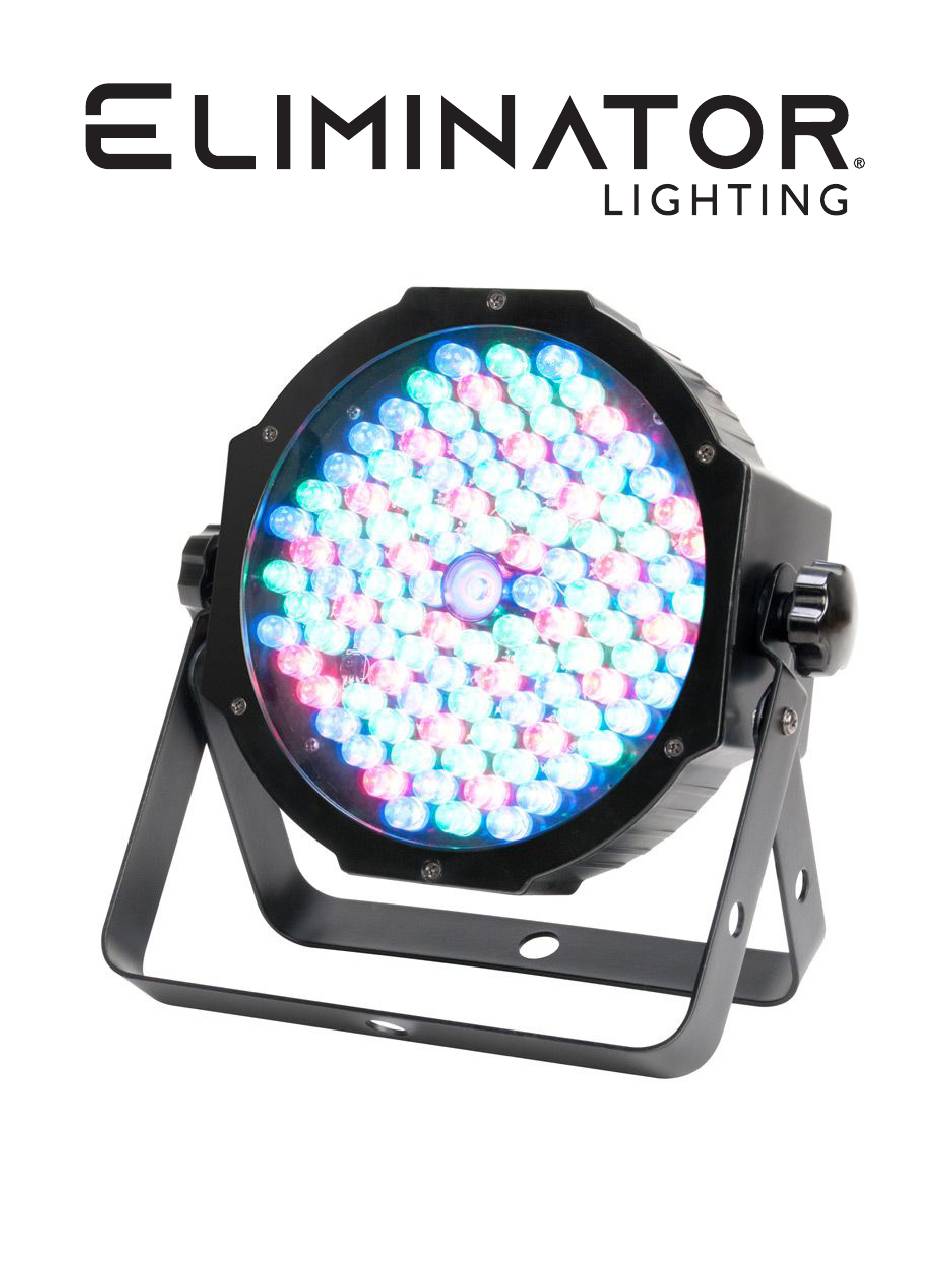

- Page 1 MEGA PAR PROFILE EP User Manual...
- Page 2 All non-Eliminator brands and product names are trademarks or registered trademarks of their respective companies. Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Warranty Registration | Features | Installation Safety Guidelines Overview System Menu Operation Instructions Primary-Secondary Configuration ADJ LED RC2 DMX Setup DMX Traits Color Macros Chart Photometric Chart | Dimmer Curve Chart Power Cord Daisy Chain | Fuse Replacement | Cleaning Trouble Shooting Specifications... -
Page 4: General Information
G E N E R A L I N F O R M AT I O N UNPACKING Thank you for purchasing the Mega Par Profile Plus by Eliminator Lighting. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. -
Page 5: Limited Warranty (Usa Only)
ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the Eliminator Lighting factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Eliminator Lighting will pay return shipping charges only to a designated point within the United States. -
Page 6: Warranty Registration | Features | Installation
WA R R A N T Y R E G I S T R AT I O N This device carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. -
Page 7: Safety Guidelines
S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION. - Page 8 S A F E T Y G U I D E L I N E S • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture • Do not spill water or other liquids into or on to your unit. •...
-
Page 9: Overview
O V E R V I E W Display Power Screen Mode Setup Down Power Button Button Button Button... -
Page 10: System Menu
S Y S T E M M E N U MODE SETUP UP / DOWN DESCRIPTION dxxx d001 - d512 Set DMX address Ch04 4-channel DMX mode Ch05 5-channel DMX mode Chxx Ch06 6-channel DMX mode Ch09 9-channel DMX mode Ch10 10-channel DMX mode DMX Mode... -
Page 11: Operation Instructions
O P E R AT I N G I N S T R U C T I O N S System Menu: The display will lock after 30 seconds, press the MODE button for 3 seconds to unlock. Operating Modes: The Mega Par Profile Plus has five operating modes: •... - Page 12 O P E R AT I N G I N S T R U C T I O N S Dimmer Curve: This is used to set the dimming curve used with DMX mode. Please refer to the Dimmer Curve Chart section of this manual for detailed information.
- Page 13 O P E R AT I N G I N S T R U C T I O N S Static Color Mode: 1. Plug the fixture in and press the MODE button until “CLXX” is displayed. 2. There are 64 colors to choose from. Select your desired color by pressing the UP and DOWN buttons.
-
Page 14: Primary-Secondary Configuration
P R I M A R Y S E C O N D A R Y C O N F I G U R AT I O N This function will allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit, and the others will react to the controlling unit’s built-in programs. -
Page 15: Adj Led Rc2
A D J L E D R C 2 The ADJ LED RC2 infrared remote (sold seperately) controls many different functions and gives the user complete control of this device. The controller must be aimed at the front of the fixture, and max- imum range is 30 feet. - Page 16 A D J L E D R C 2 DMX MODE: Operating through an DMX controller gives the user the freedom to create custom programs tailored to their own individual needs. Follow the directions below to set your DMX channel mode and ad- dress.
-
Page 17: Dmx Setup
D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. - Page 18 D M X S E T U P Notice: Be sure to the figures below when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 19 D M X S E T U P DMX Addressing: All fixtures should be given a DMX starting address when using a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...
-
Page 20: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES 10Ch 000 - 255 Red, 0% to 100% 000 - 255 Green, 0% to 100% 000 - 255 Blue, 0% to 100% 000 - 255 UV, 0% to 100% Shutter / Strobe 000 - 031 LED Off 032 - 063 LED On... - Page 21 D M X T R A I T S CHANNEL FUNCTION VALUES 10Ch Color Fade Program Mode 000 - 015 Color Fade 1 016 - 031 Color Fade 2 032 - 047 Color Fade 3 048 - 063 Color Fade 4 064 - 079 Color Fade 5 080 - 095 Color Fade 6 096 - 111...
- Page 22 D M X T R A I T S CHANNEL FUNCTION VALUES 10Ch Dimmer Curves 000 - 020 Standard 021 - 040 Stage 041 - 060 TV 061 - 080 Architectural 081 - 100 Theatre 101 - 255 Default to unit setting NOTES: •...
-
Page 23: Color Macros Chart
C O L O R M A C R O S C H A R T COLOR INTENSITY COLOR NO. DMX VALUES GREEN BLUE Color0 (off) Color1 001 - 004 Color2 005 - 008 Color3 009 - 012 Color4 013 - 016 Color5 017 - 020 Color6... - Page 24 C O L O R M A C R O S C H A R T COLOR INTENSITY COLOR NO. DMX VALUES GREEN BLUE Color37 145 - 148 Color38 149 - 152 Color39 153 - 156 Color40 157 - 160 Color41 161 - 164 Color42...
-
Page 25: Photometric Chart | Dimmer Curve Chart
P H O T O M E T R I C C H A R T D I M M E R C U R V E C H A R T... -
Page 26: Power Cord Daisy Chain | Fuse Replacement | Cleaning
P O W E R C O R D D A I S Y C H A I N This feature allows multiple units to be linked together by way of the power input and output sockets. The maximum number of devices that can be connected in this manner is 33 units. After this quantity has been reached, a new power outlet must be used to accommodate additional devices. -
Page 27: Trouble Shooting
T R O U B L E S H O O T I N G Listed below are a few common problems the user may encounter, with possible solutions. Unit does not respond to DMX: Check that the DMX cables are connected and wired correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be “hot”). -
Page 28: Specifications
S P E C I F I C AT I O N S • Slim flat black Par with 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED) • Smooth RGB+UV Color Mixing (fast or slow color change operation) •... - Page 29 This page intentionally left blank.
