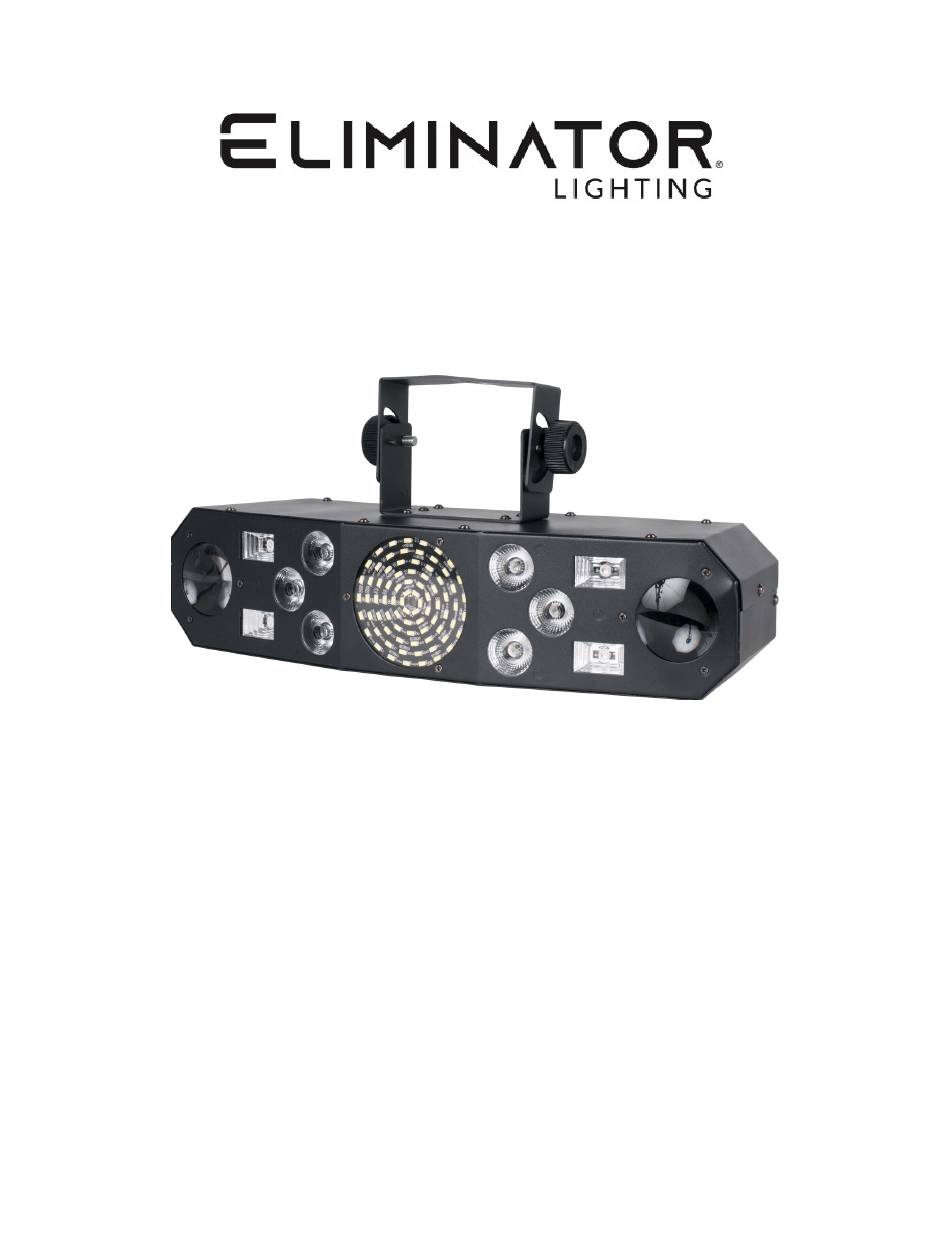

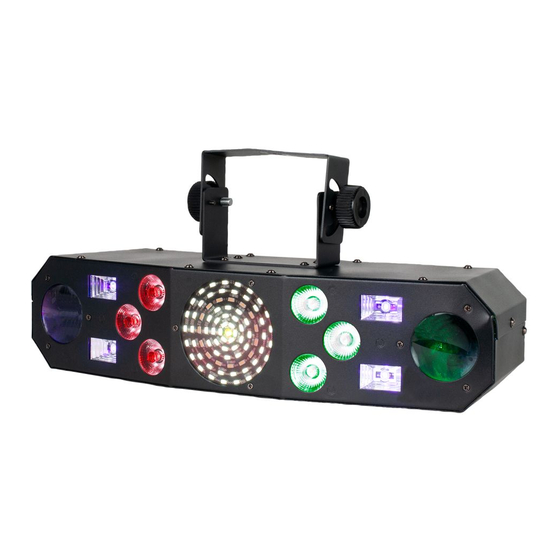

- Page 1 Furious Five RG User Manual SKU#: Furious Five RG UPC#: 818651028096 ITF-14#: 10818651028093...
- Page 2 Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions System Menu DMX Traits IR Remote Operation Dimensional Drawings Specifications... -
Page 4: General Information
G E N E R A L I N F O R M A T I O N INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate this product. These instructions contain important safety and use information. UNPACKING: This product has been thoroughly tested and has been shipped in perfect condition. -
Page 5: Limited Warranty (Usa Only)
This warranty is the only written warranty applicable to Eliminator Lighting, an ADJ Products, LLC brand, and su- persedes all prior warranties and written descriptions of warranty terms and conditions heretofore published. -
Page 6: Safety Guidelines
To ensure smooth operation, it is important to follow all instructions and guidelines in this manual. ELIMINATOR LIGHTING is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts in- cluded with these devices should be used for installation. - Page 7 S A F E T Y G U I D E L I N E S DO NOT position device close to any FLAMMABLE MATERIALS while operating. DO NOT attempt installation and/or operation of device without knowledge of how to do so. DO NOT permit operation by persons who are not qualified to operate these types of devices.
-
Page 8: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside these devices, please refer all other service issues to Eliminator Light- ing. Should you need any spare parts, please order genuine parts from Eliminator Lighting. Please refer to the following points during routine inspections: •... - Page 9 M A I N T E N A N C E G U I D E L I N E S FUSE REPLACEMENT This device features a replaceable fuse located alongside the Power Input on the back side of the device.
-
Page 10: Overview
O V E R V I E W 1. Adjustable Mounting Bracket 10. Power In 2. Bracket Adjustment Knobs (x2) 11. Fuse 3. 4-color LED Spotlights (x2) 12. Menu Button 4. UV Lights (x4) 13. Down Button 5. 4-in-1 LEDs (x6) 14. -
Page 11: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep devices at least 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics. - Page 12 I N S T A L L A T I O N I N S T R U C T I O N S CLAMP INSTALLATION This fixture features a mounting clamp attachment point, which is located on the mounting yoke, as well as a safety cable rigging point, located on the rear face of the unit above the central cooling fan (see the illustration below).
-
Page 13: System Menu
S Y S T E M M E N U CONTROL PANEL The device includes an easy to navigate system menu that can be accessed via a set of control but- tons located on the back face of the device below the digital display. Menu: Cycles through main menu options. - Page 14 S Y S T E M M E N U A _ _ _ A000 - A512 DMX address CH11 11-channel DMX mode CHND CH24 24-channel DMX mode Fixture turns off when DMX signal is lost NAST/SLAV Allows fixture to be set to Master or Slave mode FAIL Fixture continues to operate according to settings in use prior to HOLD...
-
Page 15: Dmx Traits
D M X T R A I T S Eliminator Furious Five RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 11-CH MODE 24-CH MODE Master Dimmer, 0 to 100% 000 - 255 UV Strobe 000 - 007 No strobe... - Page 16 D M X T R A I T S Eliminator Furious Five RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 11-CH MODE 24-CH MODE Right-side 4-in-1 LED Color (cont’d from prev page) 076 - 092 Yellow 093 - 109...
- Page 17 D M X T R A I T S Eliminator Furious Five RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 11-CH MODE 24-CH MODE White LED Strobe 000 - 007 008 - 255 Strobe, Slow to Fast White LED Show Mode...
- Page 18 D M X T R A I T S Eliminator Furious Five RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 11-CH MODE 24-CH MODE Left LED Spot, Inboard Color 000 - 007 008 - 024 025 - 041...
- Page 19 D M X T R A I T S Eliminator Furious Five RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 11-CH MODE 24-CH MODE Right LED Spot, Inboard Color (cont’d from prev page) 16 (cont’d 195 - 211...
- Page 20 D M X T R A I T S Eliminator Furious Five RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 11-CH MODE 24-CH MODE LED Spot Show Mode (cont’d from prev page) 143 - 160 Alternating LED Spots, Pinwheel...
-
Page 21: Ir Remote Operation
IR remote, regardless of whether those devices were produced by Eliminator Lighting or by another manufacturer. To minimimze the chances of interference, it is highly advisable to test your setup ahead of time to ensure that each IR remote compatible device is located well outside the range of any other IR re- mote compatible devices that have been installed in the vicinity. -
Page 22: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S NOTE: Dimensions may not be drawn to scale. -
Page 23: Specifications
S P E C I F I C A T I O N S • Strobe: 81 SMD 5730 white LED • Four (4) 3W UV CREE single color • Six (6) 3W Quad (RGBW) LEDs • Laser Diodes: Red = 100MW and Green = 70MW •...
