Introduction:

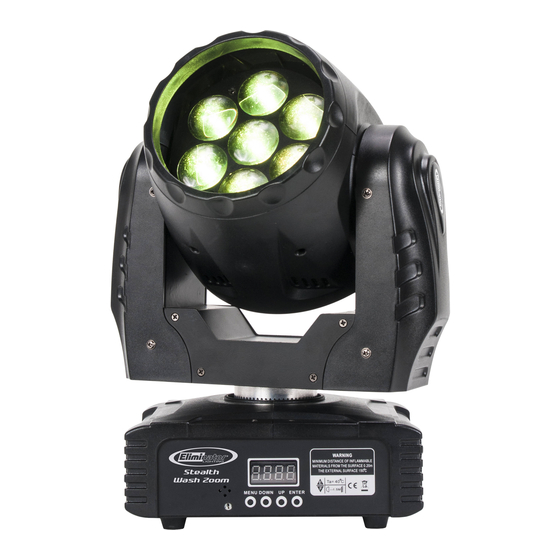

The Stealth Wash Zoom is a unique DMX intelligent moving head unit. The Stealth Wash Zoom has
3 operating modes; sound active mode, show mode, or controlled via DMX controller. The Stealth
Wash Zoom has 2 DMX Channel modes; 5 or 16 channels. The unit can be run as a stand alone unit
or in a Master/Slave set up. This unit has been tested and there is no assembly required. Follow the
instructions on the following pages to operate your fixture. To enhance the beams effects you can
use a fog machine.
CAUTION! Please read and understand these instructions before installing or operating this unit.
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.
Fuse Replacement: Locate and remove
the unit's power cord. Once the cord
has been removed, the fuse holder is
located inside the power socket. Insert
a flat-head screw driver into the fuse
holder and gently pry out the holder.
Remove the bad fuse and replace with
a new one. The fuse holder has a built-in
second holder for a spare fuse.
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com
STEALTH WASH
ZOOM
SPECIFICATIONS:
Model:
Supply Voltage:
LED:
Weight:
Size:
Fuse:
Power Consumption:
Working Position:
Duty Cycle:
DMX Channels:
Colors:
Warranty:
Stealth Wash Zoom
100V-240V 50/60Hz
7 x 12W RGBW LED's
10lbs./ 4.5 kgs.
6.22" (L) x 9.4" (W) x 12.63" (H)
2 Amp
85W
Any Safe position
None
2 DMX Channel Modes:
5 Channel Mode &
16 Channel Mode
RGBW
1 Year
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eliminator Lighting Stealth Wash Zoom
Summary of Contents for Eliminator Lighting Stealth Wash Zoom
- Page 1 ZOOM Introduction: The Stealth Wash Zoom is a unique DMX intelligent moving head unit. The Stealth Wash Zoom has 3 operating modes; sound active mode, show mode, or controlled via DMX controller. The Stealth Wash Zoom has 2 DMX Channel modes; 5 or 16 channels. The unit can be run as a stand alone unit or in a Master/Slave set up.
- Page 2 When you have found your desired address press the Enter button to set CHNd: The Stealth Wash Zoom has 2 DMX channel modes; 5 channel mode and 16 channel mode. In this menu you can select your desired channel mode. Press the Up or Down buttons until “CHNd” is dis- played and press ENTER.
-
Page 3: Operation
Follow the set-up specifications that are included with your DMX controller. 1. The Stealth Wash Zoom has two DMX channel modes; 5 DMX channels and 16 DMX channels. 2. Press the Up or Down buttons until “Chnd” is displayed, and press Enter. - Page 4 DMX TRAITS: 5 CHANNELS CHANNEL 4: INTERNAL PROGRAMS CHANNEL 1: PAN 0 - 20 = NOTHING CHANNEL 2: TILT 21 - 40 = PROGRAM 1 CHANNEL 3: COLORS 41 - 60 = PROGRAM 2 0 - 5 = NOTHING 61 - 80 = PROGRAM 3 6 - 10 = 81 - 100 =...
- Page 5 DMX TRAITS: 16 CHANNELS CHANNEL 1: PAN CHANNEL 14: COLOR FADE 0 - 10 = NOTHING CHANNEL 2: PAN FINE 11 - 194 = COLOR FADE SLOW - FAST CHANNEL 3: TILT CHANNEL 15: PAN/TILT SPEED CHANNEL 4: TILT FINE 0 - 255 = FAST - SLOW CHANNEL 5: RED...
-
Page 6: Year Limited Warranty
Screw one clamp (3) via a M12 screw and nut to the included bracket (1). Attach the bracket using the provided screws to the bottom of the Stealth Wash Zoom. Attach the included eyehole screw (2) to the bottom of the fixture and and pull the safety-cable through eyehole screw and over the truss- ing system or a safe fixation spot.
