Eliminator Lighting LED Moon Beam User Manual

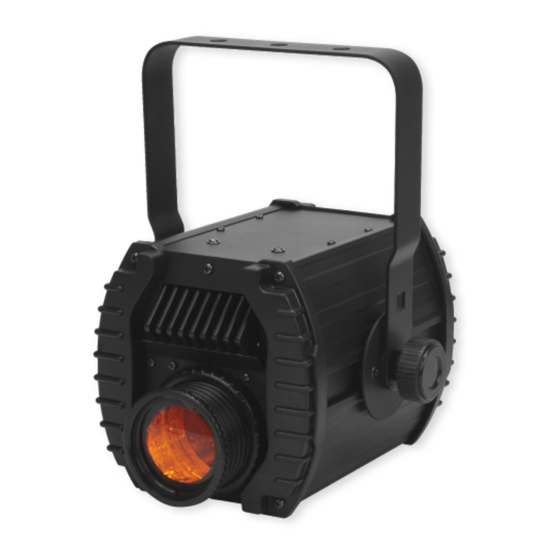

LED Moon Beam
CAUTION! Please read and under-
stand these instructions before
installing or operating this unit.
Operating Instructions:
This unit is a 3 channel DMX intelligent LED unit. It can be run as a stand-alone or in a master-slave
configuration. The unit has 3 operating modes; sound active mode, auto mode or DMX controlled.
This unit has been tested at the factory, there is no assembly required. The unit is ready to be
plugged in to a power outlet. To run the different operating modes, see the next page. To enhance
the beams use this effect with a fog machine.
Fuse Replacement: Locate and remove the unit's power cord. Once the cord has been removed
located the fuse holder located inside the power socket. Insert a flat-head screw driver into the power
socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new one. The fuse
holder has a built-in socket for a spare fuse be sure not to confuse the spare fuse with active fuse.
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com
SPECIFICATIONS:
Model:
Supply Voltage:
LEDs:
Power Consumption:
Weight:
Size:
Fuse:
Working Position:
Duty Cycle:
DMX Channels:
Colors:
Warranty:
Caution! Never open unit when in use.
Always disconnect main power before
servcing. Remember to always replace
with the exact same type fuse.
LED Moon Beam
100V ~ 240V 60Hz/50Hz
5 x 3W LEDs
30W
5lbs./ 2.2kgs.
7.7" (L) x 8" (W) x 10.5" (H)
1 Amp
Any Safe position
None
3
RGBWA
1 Year
