Eliminator Lighting E 146 CYCLOPS Manual

E 146
CYCLOPS
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.

Operating Instructions:

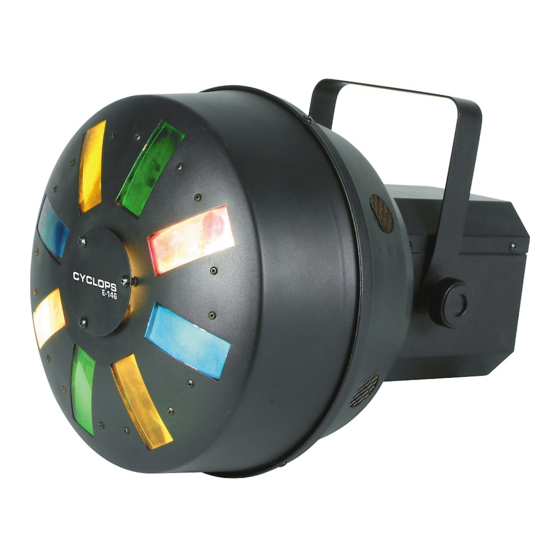

The E 146 Cyclops is a powerful effect for clubs and
dj's. The E 146 Cyclops creates a dramatic cluster
of 30 multi-colored beams. This unit features an
internal microphone that allows the beams to be trig-
gered by sound. The E 146's beams bounce up and
down to the beat of the music. The E 146 Cyclops
is ready to be hung or set on the ground in a safe
position. When mounting this unit to truss be sure
to use a clamp. Plug the unit in to a standard 110
wall outlet. After plugging the unit in, the fixture will
react to the beat of the music via the sound active
internal microphone. The unit has a sensitivity knob
on the rear of the unit that makes more or less sensi-
tive to sound. Turing the knob in clockwise direction
will make the unit more sensitive to sound. The unit
requires sound to activate the movement.
Lamp Replacement: Disconnect the units main
power supply. Unscrew and remove the thumb
screws on the front of the fixture. Remove and
replace the bulbs. Reassemble and reconnect the
power supply. Be sure to follow all the handling
instruction that are included with your new lamp.
©Eliminator® Los Angeles, CA. - wwwEliminatorLighting.com

SPECIFICATIONS:

Model:
Lamp:
Weight:
Size:
Fuse:
Supply Voltage:
Working Position:
Duty Cycle:
Colors:
Warranty:
Caution! Never open unit when in use.
Always disconnect main power before
serving or replacing lamp. Remember to
always replace with the exact same type
lamp and fuse.

HALOGEN LAMP WARNING!

This fixture is fitted with halogen
lamps which are highly susceptible
to damage if improperly handled.
Never touch lamp with bare fingers
as the oil from your hands will short-
en lamp life. Also, never move fixture
until lamp has had ample time to
cool. Remember, lamps are not cov-
ered under warranty conditions.
E 146
2 x LL-64514 120V 300W
8.5 lbs./4.0kgs.
15.5" x 12" x 12.5"W
10 Amp
120V
Any Safe position
10 min. on,10 min. off
Multiple Colored Lenses
90 Days
