Eliminator Lighting Electro Swarm Quick Manual

Electro Swarm
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.

Operating Instructions:

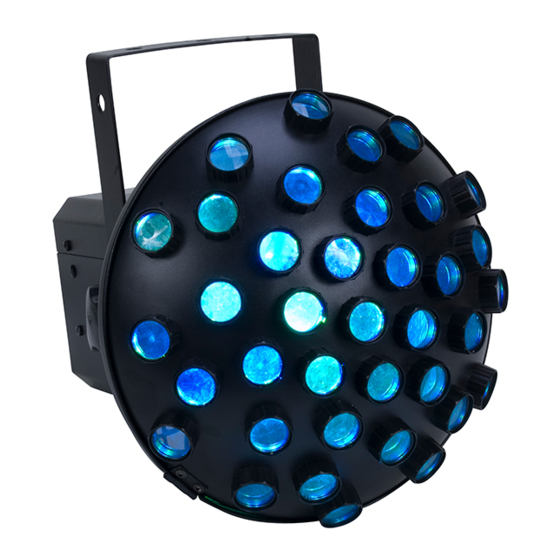

The Electro Swarm is a powerful effect for clubs and dj's. The Electro Swarm creates a dramatic
cluster of stobing, multi-colored beams. This unit features an internal microphone that allows the
beams to be triggered by sound. The Electro Swarm is ready to be hung or set on the ground in a
safe position. When mounting this unit to truss be sure to use a clamp. Plug the unit in to a stan-
dard wall outlet. After plugging the unit in, the fixture will react to the beat of the music via the sound
active internal microphone. The unit has a sensitivity knob on the rear of the unit that makes more or
less sensitive to sound. Turning the knob in clockwise direction will make the unit more sensitive to
sound. The unit requires sound to activate the movement.
Master-Slave Operation: This function will allow you to link up to 16 units together and operate. The
units will be sound activated. In Master-Slave operation one unit will act as the controlling unit and the
others will react to the controlling unit. Any unit can act as a Master or as a Slave. See set up below.
1. Using standard XLR microphone cables, daisy chain your units together via the XLR connector
on the rear of the units. Remember the Male XLR connector is the input and the Female XLR con
nector is the output. For longer cable runs we suggest a terminator at the last fixture.
2. The dipswitch settings for Master/Slave mode is as follows. On the Master unit flip dipswitch #1
and #2 to the "OFF" position. On the Slave unit set dipswitch #1 and #2 to the "ON" position.
3. Use the sensitivity knob on the rear of the master unit to make it more or less sensative to sound.
©Eliminator® Bell, CA. - wwwEliminatorLighting.com

SPECIFICATIONS:

Model:
Supply Voltage:
LEDs:
Power Consumption:
Beam Angle:
Weight:
Size:
Fuse:
Working Position:
Duty Cycle:
Colors:
Warranty:
Caution! Never open unit when in use.
Electro Swarm
90V ~ 240V 60Hz/50Hz
6 x 1W (2 Red, 2 Green, &
2 Blue)
15W
90 Degrees
5.3 lbs./ 2.5kgs
14.5"(L) x 10.6"(H) x
10.6"(W)
2 Amp
Any Safe position
None
Multiple Colored Lenses
1 Year
