Eliminator Lighting E 141 OCTO BAR Operating Instructions

E 141
OCTO BAR
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.
Operating Instructions:

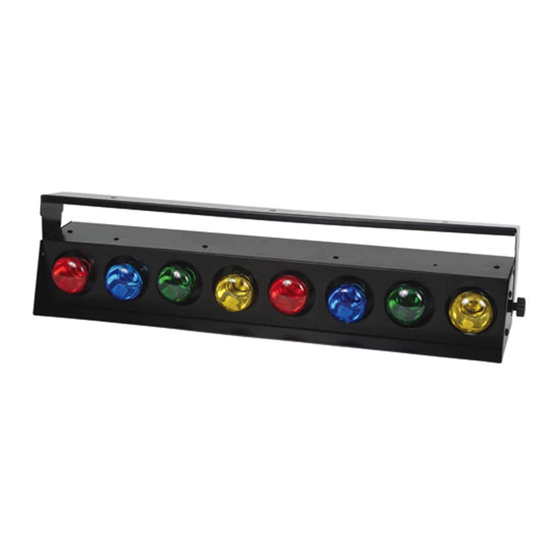

The E 141/Octo Bar is a simple, chasing, color wash
for clubs and dj's. This unit features an internal
microphone, chase speed control, and sound sen-
sitivity knob that allows the beams to chase at your
control. Turning the knob on the left in clockwise
direction will make the unit more sensitive to sound.
The E 141/Octo Bar's beams will chase to the beat
of the music. The E 141/Octo Bar is ready to be hung
or set on the ground in a safe position. When mount-
ing this unit to truss be sure to use a clamp. Plug
the unit in to a standard 110 wall outlet. After plug-
ging the unit in, turn the sound sensitivity knob 20°,
and the chase speed knob (on the right) can be in
any postiton. The fixture will then be in sound-active
mode, and will react to the beat of the music via the
internal microphone.
Lamp Replacement: Disconnect the units main
power supply. Unscrew and replace the bulbs that
need changing. Reconnect the power supply. Be
sure to follow all the handling instruction that are
included with your new lamp.
©Eliminator® Bell Gardens, CA. - wwwEliminatorLighting.com
SPECIFICATIONS:
Model:
Lamp:
Weight:
Size:
Fuse:
Supply Voltage:
Working Position:
Duty Cycle:
Colors:
Warranty:
Caution! Never open unit when in use.
Always disconnect main power before
serving or replacing lamp. Remember to
always replace with the exact same type
lamp and fuse.
HALOGEN LAMP WARNING!
This fixture is fitted with halogen
lamps which are highly susceptible to
damage if improperly handled. Never
touch lamp with bare fingers as the
oil from your hands will shorten lamp
life. Also, never move the fixture until
the lamp has had ample time to cool.
Remember, lamps are not covered
under warranty conditions.
E 141/Octo Bar
8 x EL-R20 120V 50W
12 lbs./ 5.4Kgs.
6.5"(L) x 30.5"(W) x 6.5"(H)
5 Amp GMA 250v
120V
Any Safe position
None
4 Colors
1 Year Limited Warranty
