Katana LED
CAUTION! Please read and understand these instructions before installing or operating this unit.

Introduction:

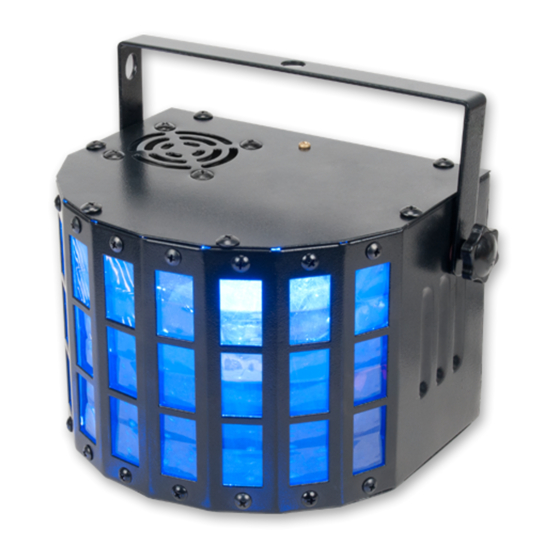

The Katana LED is a powerful effect for clubs and dj's. The Katana LED is bright, colorful, moonflow-
er effect. This unit features an internal microphone that allows the beams to be triggered by sound.
The Katana LED's beams rotate and strobe to the beat of the music. The Katana LED is ready to
be hung or set on the ground in a safe position. When mounting this unit to truss be sure to use a
clamp.

Fuse Replacement:

Caution! Never open unit when in use. Always disconnect main power before servcing. Remember to
always replace with the exact same type fuse. Locate and remove the unit's power cord. Once the cord
has been removed located the fuse holder located inside the power socket. Insert a flat-head screw
driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with
a new one. The fuse holder has a built-in socket for a spare fuse be sure not to confuse the spare fuse
with active fuse.

1 Year Limited Warranty:

1 year limited warranty covers manufacturing defects only. Serial number, place of purchase with
dated valid receipt must be submitted at time of service. Eliminator Lighting warranty does not cover
items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid with-in the United States.
©Eliminator® Los Angeles, CA. - wwwEliminatorLighting.com

SPECIFICATIONS:

Model:
Supply Voltage:
LEDs:
Power Consumption:
Beam Angle:
Weight:
Size:
Fuse:
Working Position:
Duty Cycle:
Colors:
Warranty:
Eliminator Lighting warranty is valid from the date of purchase. Our
Katana LED
100V~230V / 50~60Hz
4 x 3W (1 Red, 1 Blue, 1
Green & 1 White)
36W
123 Degrees
5 lbs./ 2.0 kgs
9.5"L x 6.75"W x 6.5"H
1 Amp
Any Safe position
None
RGBW
1 Year
