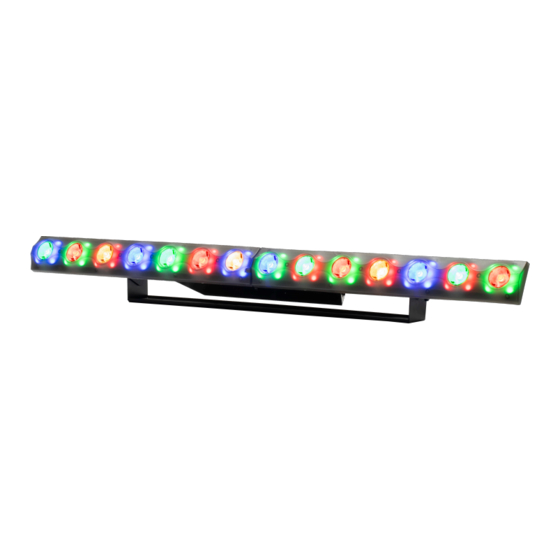

- Page 1 FROST FX BAR RGBW User Instructions...
- Page 2 ©2021 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. Eliminator Lighting, ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation DMX Set Up DMX Addressing System Menu DMX Traits: Channel Functions & Values Color Macro Chart Dimmer Mode Chart Power Linking | Cleaning Specifications... -
Page 4: General Information
GENERAL INFORMATION INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate these products. These instructions contain important safety and use information. UNPACKING The products in this kit have been thoroughly tested and have been shipped in perfect operating condition. -
Page 5: Limited Warranty (Usa Only)
LIMITED WARRANTY (USA ONLY) A. Eliminator Lighting, an ADJ Products, LLC brand, hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). -
Page 6: Safety Guidelines
S A F E T Y G U I D E L I N E S To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before servicing. DO NOT shake fixture;...
-
Page 8: Overview
OVERVIEW Integrated Mounting Bracket and Safety Cable Attachment Point Omega Bracket Thumb Knob Mounting Hole Locking Power Locking Power Connector Output LCD Menu Control Display Connector Input Locking 3-Pin Locking 3-Pin ENTER Button DMX Input DMX Output DOWN Button ESC Button UP Button... -
Page 9: Installation
INSTALLATION FLAMMABLE MATERIAL WARNING Keep fixture at least 7.9in. (0.2m) away from any flammable materials, decorations, pyrotechnics, etc. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 40 FEET (12 METERS) MAXIMUM TEMPERATURE OF EXTERNAL SURFACE 167°F (75°C) DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construction... - Page 10 Screw one clamp each via a M12 screw and nut into the Omega brackets. Insert the quick-lock fasteners of the Omega brackets into the respective holes on the bottom of the Frost FX Bar RGBW. Tighten the quick-lock fasteners fully clockwise. Pull a safety cable through the safety cable attachment points located on the base plate and over the trussing system or a safe fixation spot.
- Page 11 The Frost FX Bar RGBW is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).
-
Page 12: Dmx Set Up
S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”... - Page 13 S E T U P Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -).
-
Page 14: Dmx Addressing
In the case of the Frost FX BAR RGBW, when in 8 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 9 (8 + 1), the third unit to 17 (9 + 8), and so on. -
Page 15: System Menu
SYSTEM MENU The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. During normal operation, pressing the ESC button once will return the current menu to the last menu. In the main menu, you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons. -
Page 16: Dmx Traits: Channel Functions & Values
DMX TRAITS: CHANNEL FUNCTIONS & VALUES (3/7/11/18/102/107/111 DMX Channels) 7CH 11CH 18CH 102CH 107CH 111CH Values Functions Red Main Pixels 1-14 000-255 0% ‐ 100% Green Main Pixels 1-14 000‐255 0% ‐ 100% Blue Main Pixels 1-14 000‐255 0% ‐ 100% White Main Pixels 1-14 000‐255 0% ‐... - Page 17 DMX TRAITS: CHANNEL FUNCTIONS & VALUES (3/7/11/18/102/107/111 DMX Channels) 7CH 11CH 18CH 102CH 107CH 111CH Values Functions Main Pixel 1-14, COLOR TEMPERATURE PRESETS 000-031 No Function 032-076 2700K 077-121 3200K 122-166 4000K 167-211 5600K 212-255 6000K 000‐255 Background Color 1-14, COLOR TEMPERATURE LINEAR 2700-6000K Background Color 1-14, COLOR TEMPERATURE PRESETS 000-031 No Function...
- Page 18 DMX TRAITS: CHANNEL FUNCTIONS & VALUES (3/7/11/18/102/107/111 DMX Channels) 7CH 11CH 18CH 102CH 107CH 111CH Values Functions Normal 0-10 11-15 Internal Program 1 16-20 Internal Program 2 21-25 Internal Program 3 26-30 Internal Program 4 31-35 Internal Program 5 36-40 Internal Program 6 Internal Program 7 41-45 46-50 Internal Program 8...
-
Page 19: Color Macro Chart
COLOR MACRO CHART - PRIMARY LEDs RGBW COLOR INTENSITY RGBW COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE RED GREEN BLUE WHITE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140 Color Macro 3 9-12 Color Macro 36 141-144... - Page 20 COLOR MACRO CHART - BACKGROUND LEDs RGB COLOR INTENSITY Color DMX VALUE GREEN BLUE R02 BASTARD AMBER R04 MEDIUM AMBER 8-15 R09 PALE AMBER GOLD 16-23 R316 GALLO GOLD 24-31 R21 GOLDEN AMBER 32-39 R26 LIGHT RED 40-47 R27 MEDIUM RED 48-55 R36 MEDIUM PINK 56-63...
-
Page 21: Dimmer Mode Chart
DIMMER MODE CHART Dimming Speed DMX Value Delay and Menu Display Time 0.1Sec. 0.2Sec. 0.3Sec. 0.4Sec. 0.5Sec. 0.6Sec. 0.7Sec. 0.8Sec. 0.9Sec. 1.0Sec. 1.5Sec. 2.0Sec. 3.0Sec. 4.0Sec. 5.0Sec. 6.0Sec. 7.0Sec. 8.0Sec. 9.0Sec. 10Sec. -
Page 22: Power Linking | Cleaning
POWER LINKING With this feature you can connect the fixtures to one another using the power cable input and output sockets. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE! CHECK SILK SCREEN FOR MAX AMPS. -
Page 23: Specifications
SPECIFICATIONS Input Voltage: 110-240VAC 50-60Hz Power Supply: 110w Lamp: 14pcs 3W RGBW 4In1 LED+84pcs 5050 3in1 smd LED Control Mode: DMX512/ Auto mode/Sound mode/ Dimming: 0–100° Angle: 17° DMX Channel: CH3/CH7/CH11/CH18/CH102/CH107/CH111 Display: 4 button LED display Connection: 3-pin Data in/out Power Connector in/out Material: Steel housing Dimensions:... - Page 24 DIMENSIONS...
