Eliminator Lighting Follow Spot 100 LED Quick Start Manual

Follow Spot 100 LED
CAUTION! Please read and understand these
instructions before installing or operating this unit.
I
ntroduction:

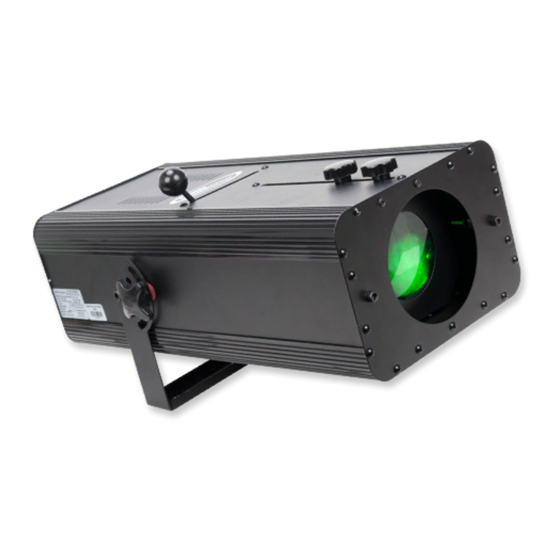

The Follow Spot 100 LED is a 2 channel DMX intelligent LED follow spot. The Follow Spot 100 LED features 8
colors, dimming capabilities, zoom, and focus. The Follow Spot 100 LED can be controlled via DMX control-
ler. The unit can be run as a stand alone unit or in a Master/Slave configuration. This unit has been tested and
there is no assembly required. The unit is ready to be plugged in to a power outlet. To enhance the beams
effects you can use a fog machine.
CAUTION! Please read and understand these instructions before installing or operating this unit.

1 Year Limited Warranty:

1 year limited warranty covers manufacturing defects only. Serial number, place of purchase with
dated valid receipt must be submitted at time of service. Eliminator Lighting warranty does not cover
items or parts prone to wear and tear: motors, fuses, brushes and belts. Eliminator Lighting warranty
is only valid with-in the United States.

SPECIFICATIONS:

Model:
LED:
Weight:
Size:
Beam Angle:
Fuse:
Supply Voltage:
Power Consumption:
Working Position:
Duty Cycle:
DMX Channels:
Warranty:
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com
Eliminator Lighting warranty is valid from the date of purchase. Our
Follow Spot 100 LED
70W LED
15lbs./ 7kgs.
580 x 280 x 280mm
16 - 22 Degrees
5 Amp
100-240V 60-50Hz
100W
Any Safe position
None
2 DMX Channels
1 Year
Fuse Replacement: Uplug the unit from its
power source. Using a phillips-head screw driver
unscrew and remove the fuse housing. Remove
the bad fuse and replace with a new one.
DMX TRAITS: 2 CHANNELS
CHANNEL 1: COLORS
0 - 31 = OPEN (WHITE)
32 - 63 = RED
33 - 95 = YELLOW
96 - 127 = BLUE
128 - 159 = GREEN
160 - 191 = PURPLE
192 - 223= ORANGE
224 - 255 = PINK
CHANNEL 2: MASTER DIMMER
0 - 255 = 0%-100%
