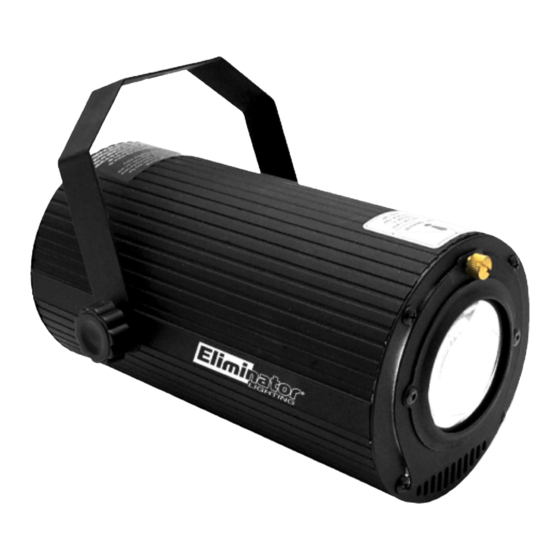

E 103
CAUTION! Please read and
understand these instructions
before installing or operating
this unit.
Operating Instructions: The unit is ready to be hung
or set on flat surface. This fixture is designed to oper-
ate as a stand alone unit. It has been tested and the
lamp has been installed at the factory there is no
assembly necessary. The E103 has three different
operating modes. For best results, we suggest using
fog or special effects smoke when using this unit.
This will enhance the effect allowing you to see the
beams of light.
This unit comes with a 3-way multi-operating switch
located on the rear of the unit. The switch controls
three (3) different operating modes; Static, Sound
Active, and Continuous Rotation. When the switch
is in the "I" position the internal dichroic dish spin
continuously and the barrel mirror will react to sound,
via its internal microphone. When the unit is in the
"0" position the internal dichroic dish is static (does
not rotate) and the barrel mirror will react to sound.
When the switch is in the "II" position the unit's inter-
nal dichroic color wheel and barrel mirror will react to
sound.
©Eliminator® Los Angeles, CA. - wwwEliminatorLighting.com
SPECIFICATIONS:
Model:
Weight:
Size:
Lamp:
Fuse:
Supply Voltage:
Working Position:
Colors:
Duty Cycle:
Warranty:
Caution! Never open unit when in use.
Always disconnect main power before
serving or replacing lamp. Remember to
always replace with the exact same type
lamp and fuse.
HALOGEN LAMP WARNING!
This fixture is fitted with halogen
lamps which are highly susceptible
to damage if improperly handled.
Never touch lamp with bare fingers
as the oil from your hands will short-
en lamp life. Also, never move fixture
until lamp has had ample time to
cool. Remember, lamps are not cov-
ered under warranty conditions.
Lamp Replacement: Remove the two
thumb screws from the front of the unit.
Gently pull the front lens assembly forward
to access the lamp. Remove and replace
the bad lamp and reassemble in reverse
order.
E 103
5 lbs.
4.5"H x 4.5"W x 8.5"L
ZB-64610 12V 50W
1A
120V
Any Safe position
Multiple Colored Dish
15min on/off
1 Year Limited Warranty
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eliminator Lighting Moon Beam
Summary of Contents for Eliminator Lighting Moon Beam
- Page 1 SPECIFICATIONS: E 103 Model: E 103 Weight: 5 lbs. Size: 4.5”H x 4.5”W x 8.5”L Lamp: ZB-64610 12V 50W Fuse: CAUTION! Please read and Supply Voltage: 120V Working Position: Any Safe position understand these instructions Colors: Multiple Colored Dish before installing or operating Duty Cycle: 15min on/off this unit.
