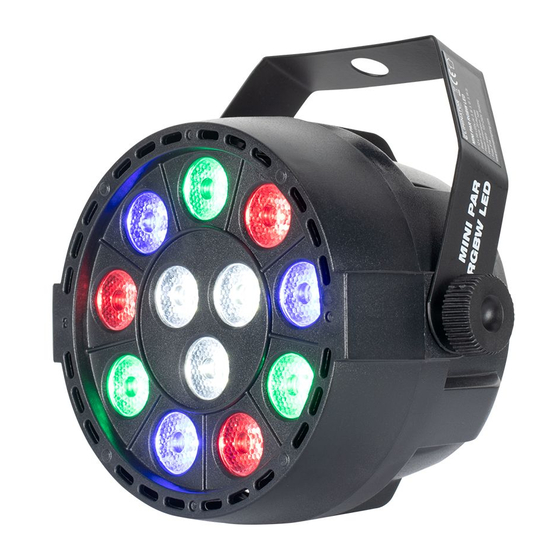

Eliminator Lighting Mini Par RGBW LED Operating Instructions

Mini Par
RGBW LED
CAUTION! Please read and under-
stand these instructions before
installing or operating this unit.
Operating Instructions:
The Mini Par RGBW LED has been tested at the factory, there is no assembly required. The unit is
ready to be plugged into a power outlet. This unit has 3 DMX channel modes; 4/6/8 channels. It has
6 operating modes; RGBW Dimmer mode, Jump change mode, Fade mode, Pulse change mode,
Sound Active mode, or DMX mode.
1 Year Limited Warranty:
1 year limited warranty covers manufacturing defects only. Serial number, place of purchase with
dated valid receipt must be submitted at time of service. Eliminator Lighting warranty does not cover
items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid with-in the United States.
Customer Support:
©Eliminator® Los Angeles, CA. - www.EliminatorLighting.com
Eliminator Lighting warranty is valid from the date of purchase. Our
Office: (323) 316-9706
Fax: 888-287-5224
Web: info@eliminatorlighting.com

SPECIFICATIONS:

Model:
Voltage:
LEDs:
Beam Angle:
Power Consumption:
Weight:
Size:
Working Position:
Duty Cycle:
DMX Channels:
Colors:
Warranty:
Caution! Never open unit when in use. Always
disconnect main power before replacing fuse.
Remember to always replace with the exact same
type fuse.
Mini Par RGBW LED
100V-240V 50/60Hz
12 x 1W LEDs
(3 Red, 3 Green, 3 Blue,
& 3 White LEDs)
25 Degrees
14W
1lbs./ 0.5kgs.
153 x 145 x 95mm
Any Safe position
None
3 DMX Channel Modes:
4/6/8 Channels
RGBW
1 Year
