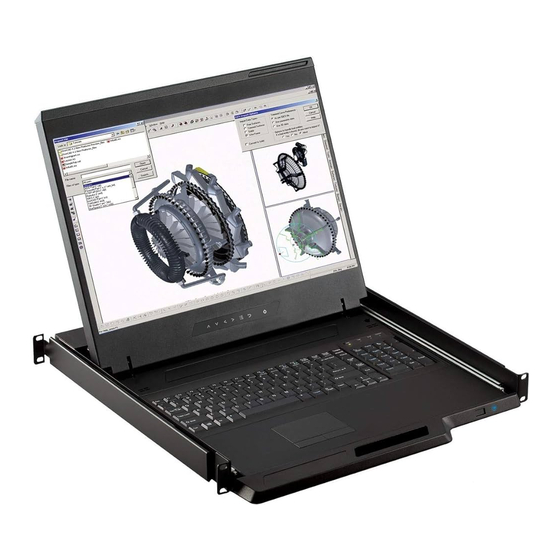

- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 RM-111-19W 1U LCD Console Drawer Options : - SDI - AV / HDMI / Audio - Full Range KVM - DC power UM-CV-751-19W-Q113V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RM-111-19W Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10... - Page 4 Contents < Part. 4 > KVM Integration www.rackmountsales.com/v/pdf/citumcat5m.pdf Matrix Local Remote 8-port 16-port 32-port Cat6 KVM Cat5M-IP116-3 Cat5M-IP132-3 Cat5M-IP216-4 Cat5M-IP232-4 Cat5M-16-2 Cat5M-32-2 Cat5M-16-3 Cat5M-32-3 Cat5M-16-4 Cat5M-32-4 www.rackmountsales.com/v/pdf/citumcat5.pdf Combo Local Remote 8-port 16-port 32-port Cat6 KVM Cat5-IP08 Cat5-IP16 Cat5-IP32 Cat5-08-2 Cat5-16-2 Cat5-32-2 Cat5-08 Cat5-16...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content RM-111-19W unit X 1 - DVI-6 6ft DVI-D console cable X 1 ( Alternative : COMBO-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 Weight 441.6 x 460 x 44 mm 590 x 823 x 140 mm 11.5 kg 16.5 kg RM-111-19W 17.4 x 18.1 x 1.73" 23.2 x 32.4 x 5.5” 25 lb 36 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI, AV, audio &...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - How to install 2 post rack brackets Step ■ Insert the left and right rear mounting brackets into the LCD console drawer in the reverse direction. Option Model : MB-751-12 Step ■ Align each rear mounting bracket to a suitable length. Rear mounting Front mounting Step...
- Page 10 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-19W-Q113V1 www.rackmountsales.com...
-
Page 11: Connection
< 1.4 > Connection to USB Server via DVI-6 cable LCD Console Drawer Power DVI-D DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via DVI-6 cable LCD Console Drawer Power DVI-D KVM DVI-D console cable DVI-D DVI console KVM Caution :... - Page 12 < 1.4 > Connection to USB Server via USB/VGA-6 cable LCD Console Drawer Power USB-VGA-6 console cable USB server < 1.4 > Connection to external KVM via USB-VGA-6 cable LCD Console Drawer Power USB-VGA-6 console cable USB console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
- Page 13 < Part 2 > < 2.1 > Product Specifi cations RM-111-19W Manufacturer Panel Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. )
- Page 14 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 460 x 44 mm Specifi...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations keyboard integrated with touchpad keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America... -
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 17 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 18 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 19 < 3.2 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) ( 1 ) For AV2.2 upgrade, either HDMI or DVI-D is provided. ( 2 ) For the above options, casing depth will be extended from 460mm ( 18.1"...
- Page 20 < 3.3 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
