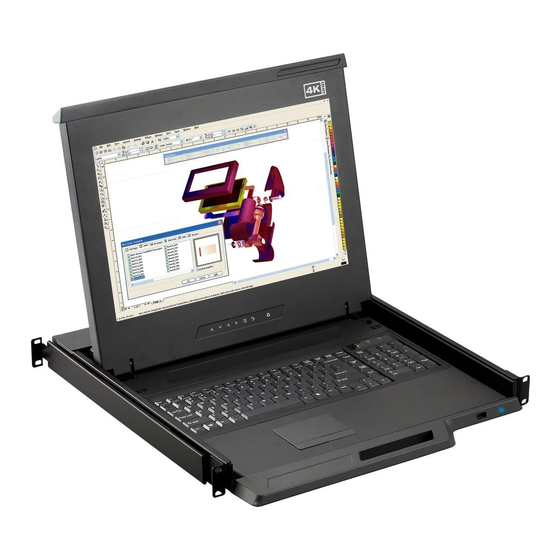

- Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ 4K LCD Console Drawer RM-117K RM-K17USD Ultra short depth 400mm / 15.7″ UM-CV-751-K17-Q218V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, December 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents RM-117K / RM-K17USD < Part. 1 > Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.10 Keyboard / Mouse Specifi cations P.12 On-screen Display Operation ( OSD ) P.15... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content RM-117K RM-K17USD - USB cable X 2 - USB cable X 2 - Power cord X 1 - 4A Power adapter & Power cord X 1 - M6 screw, cage nut & cup washer X 8 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension - RM-117K Front View Rear View Keyboard Mouse AC Input 100~240V Power attached 6ft DP cable UNIT : mm 1mm = 0.03937 inch Side View Top View RM-117K Product Dimension Packing Dimension Gross Model Net Weight...
- Page 7 RM-K17USD Dimension - RM-K17USD Front View Rear View +12 VDC Power attached 6ft Keyboard Mouse DP cable UNIT : mm Side View 1mm = 0.03937 inch Top View RM-K17USD Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm...
- Page 8 Intentionally Left Blank UM-CV-751-K117-Q419V3 www.rackmountsales.com...
-
Page 9: Installation
RM-117K / K17USD < 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 10 Installation - How to use the RM-117K drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-K117-Q419V3 www.rackmountsales.com...
- Page 11 RM-117K < 1.3 > Installation - How to use the RM-K17USD drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-K117-Q419V3 www.rackmountsales.com...
-
Page 12: Connection
< 1.4 >RM-117K Connection to DP Server LCD Console Drawer POWER AC Input 100~240V attached 6ft DP cable DP server RM-117K Schematic external KVM LCD Console Drawer LCD Console Drawer POWER AC Input 100~240V attached 6ft DP cable Video Keyboard... - Page 13 RM-117K RM-K17USD Connection to DP Server LCD Console Drawer +12 VDC attached 6ft DP cable DP server RM-K17USD Connection to external KVM LCD Console Drawer LCD Console Drawer +12 VDC attached 6ft DP cable Video Keyboard Mouse USB Hub DP console KVM...
-
Page 14: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations RM-117K / K17USD Panel Native Resolution 3840 x 2160 Panel Size ( diagonal ) 17.3-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) - Page 15 RM-117K RM-117K RM-K17USD Physical Specifi cation Product ( W x D x H ) 441.6 x 480 x 44 mm 441.6 x 400 x 44 mm 17.4 x 18.9 x 1.73 inch 17.4 x 15.7 x 1.73 inch Packing ( W x D x H )
-
Page 16: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations tb keyboard integrated with trackball keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 17 RM-117K / K17USD MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control...
- Page 18 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 19: On-Screen Display Operation ( Osd )
RM-117K < 2.3 > On-screen Display Operation ( OSD ) RM-117K Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust... - Page 20 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 21 RM-117K / K17USD On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) /...
- Page 22 < Part 3 > Option < 3.1 > 3G / HD / SD-SDI input Crystal Image SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CIT's displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 23 117 / K17 < 3.2 > Options : HDMI - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi...
- Page 24 < 3.3 > Options : Touchscreen & driver K17" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
- Page 25 K117 / K1417 Options : Touchscreen & driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.eeti.com.tw/DriverDownload.html Step 2. Double click the Setup.exe Step 3.
- Page 26 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 27 RM-K17USD < 3.5 > K17USD Option: ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
-
Page 28: Rm-117K / Rm-K17Usd
< Part 4 > KVM integration RM-117K / RM-K17USD < 4.1 > Remote 8-port 60Hz RM-117K - 801K Product Dimension Packing Dimension Model Net Weight Gross Weight (W x D x H) (W x D x H) 441.6 x 580 x 44 mm 590 x 808 x 140 mm 12.1 kg...
