User Manual
RM-F117
1920 x 1080 native resolution
UM-CV-751-F17-Q218V1
dedicated KVM switch and rackmount screen technology

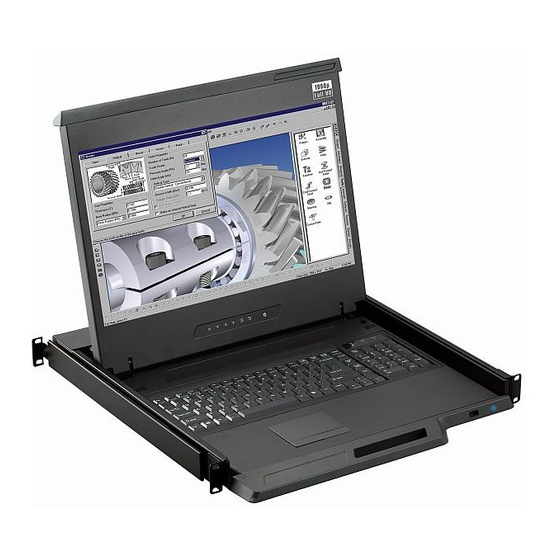

1U 17" FHD LCD Console Drawer
RM-F17USD
1920 x 1080 native resolution
Flexible mounting depth
( 15.7" - 31.7" Range )
www.rackmountsales.com
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-F117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crystal Image Technologies RM-F117

Summary of Contents for Crystal Image Technologies RM-F117

  • Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ FHD LCD Console Drawer RM-F117 RM-F17USD 1920 x 1080 native resolution 1920 x 1080 native resolution Flexible mounting depth ( 15.7″ - 31.7" Range ) UM-CV-751-F17-Q218V1 www.rackmountsales.com...
  • Page 2 Legal Information First English printing, January 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents RM-F117 / RM-F17USD < Part. 1 > Package Content P.2 - 3 Structure Diagram & Dimension P.4 - 6 Installation P.8 - 9 Connection Specifi cations / OSD < Part. 2 > Product Specifi cations P.10 - 11 Keyboard / Mouse Specifi cations P.12 - 14...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Package Content

    < Part 1 > < 1.1 > Package Content RM-F117 RM-F17USD - DVI-6 6ft DVI-D console cable X 1 - DVI-6 6ft DVI-D console cable X 1 ( Alternative : KVM-B-6 6ft VGA console cable ) ( Alternative : KVM-B-6 6ft VGA console cable ) - Power cord X 1 - 2.5A Power adapter &...
  • Page 6 < 1.2 > Dimension - RM-F117 Front View Rear View Power DVI-D UNIT : mm Side View 1mm = 0.03937 inch Top View RM-F117 Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)
  • Page 7 < 1.2 > Dimension - RM-F17USD Front View Rear View DVI-D Power UNIT : mm Side View 1mm = 0.03937 inch (.84") (15.74") Top View RM-F17USD (15.7" to 23.7" Mounting Range) RM-F17USD-16BRK (18.9" to 30" Mounting Range) (15.74") 18.9" (RM-F17USD-16BRK) Product Dimension Packing Dimension Gross...

  • Page 8: Installation

    < 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
  • Page 9 < 1.3 > Installation - How to use the RM-F117 drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F17-Q218V1 www.rackmountsales.com...
  • Page 10 < 1.3 > Installation - How to use the RM-F17USD drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F17-Q218V1 www.rackmountsales.com...
  • Page 11 Intentionally Left Blank UM-CV-751-F17-Q218V1 www.rackmountsales.com...

  • Page 12: Connection

    < 1.4 > Connection to USB Server X-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER KVM-X-6A DVI-D console cable USB server DVI-D * RM-F17USD uses external power < 1.4 > Connection to external KVM X-6A cable LCD Console Drawer DVI-D AC Input 100~240V...
  • Page 13 < 1.4 > Connection to USB Server B-6A cable LCD Console Drawer POWER AC Input 100~240V KVM-B-6A VGA console cable USB server * RM-F17USD uses external power < 1.4 > Connection to external KVM -6A cable LCD Console Drawer POWER AC Input 100~240V KVM-B-6A VGA...

  • Page 14: Product Specifi Cations

    < 2.1 > Product Specifi cations RM-F117 / RM-F17USD Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 17.3" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 600:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D )
  • Page 15 1280 x 720 x 50 / 60Hz ( 720p ) 720 x 480 x 50 / 60Hz ( 576p / 480p ) Audio Signal 2ch Linear PCM RM-F117 RM-17USD Physical Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm...

  • Page 16: Keyboard / Mouse Specifi Cations

    < 2.2 > Standard Keyboard / Mouse Specifi cations tp keyboard integrated with touchpad tb keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States...
  • Page 17 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball F8 F8 F8 F8 Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion...
  • Page 18 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
  • Page 19 Intentionally Left Blank P.15 UM-CV-751-F17-Q218V1 www.rackmountsales.com...

  • Page 20: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) RM-F117 Membrane Switch Function Turn the monitor on or off (Select VGA or DVI Input Confirmed in RED) Display the OSD menu Act as an Enter key to select screen setting options...
  • Page 21 < 2.3 > On-screen Display Operation ( OSD ) Picture Picture mode : Standard / Vivid / Soft / User mode to choose Brightness : Adjust background black level of the screen image Contrast : Adjust the difference between the image background (black level) and the foreground (white level) Hue: Adjust the screen hue value...
  • Page 22 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty. RM-F117 DVI-D Power For SDI option, casing depth will be changed from 460mm ( 18.1” ) to 530mm ( 20.9” )
  • Page 23 Intentionally Left Blank P.19 UM-CV-751-F17-Q218V1 www.rackmountsales.com...
  • Page 24 < 3.2 > F117 Options : - HDMI 1.3 ( HDCP 1.3 - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
  • Page 25 < 3.2 > F1417 Options : - HDMI 1.3 ( HDCP 1.3 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi...
  • Page 26 USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully USB Touchscreen RM-F117 DVI-D Power USB Touchscreen RM-F17USD Power DVI-D P.22...
  • Page 27 < 3.3 > Options : Touchscreen & driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.eeti.com.tw/drivers_Win.html Step 2. Double click the Setup.exe Step 3.
  • Page 28 ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) RM-F117 casing depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” ) ( 4 ) RM-F17USD casing depth will be extended from 400mm ( 15.7” ) to 490mm ( 19.3” ) P.24...
  • Page 29 < 3.5 > Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
  • Page 30 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-751-F17-Q218V1 www.rackmountsales.com...
