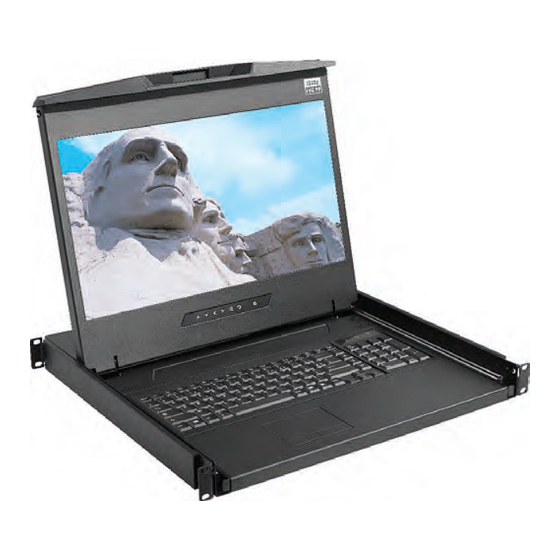

- Page 1 KVM switch and rackmount screen technology User Manual 1U 19″ FHD LCD Console Drawer RM-F119 1920 x 1080 native resolution UM-CV-751-F19-Q421V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, October 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RM-F119 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.12 < Part. 3 >... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
RM-F119 < Part 1 > < 1.1 > Package Content RM-F119 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 <... - Page 6 < 1.2 > Dimension - RM-F119 Front View Rear View DVI-D AC Input 100~240V Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)
-
Page 7: Installation
< 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation - How to use the RM-F119 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F19-Q421V1 www.rackmountsales.com...
-
Page 9: Connection
via DVI-X-6A cable < 1.4 > Connection to USB Server LCD Console Drawer DVI-D AC Input 100~240V POWER DVI-X-6A console cable USB server DVI-D via DVI-X-6A cable < 1.4 > Connection to external KVM LCD Console Drawer DVI-D AC Input 100~240V POWER DVI-X-6A DVI-D... - Page 10 via KVM-B-6A cable < 1.4 > Connection to USB Server LCD Console Drawer POWER AC Input 100~240V KVM-B-6A VGA console cable USB server via KVM-B-6A cable < 1.4 > Connection to external KVM LCD Console Drawer POWER AC Input 100~240V KVM-B-6A VGA console cable VGA console KVM...
-
Page 11: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations RM-F119 Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 18.5" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M... - Page 12 RM-F119 Physical Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch Packing ( W x D x H ) 590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch Net Weight 11.5 kg / 25.3 lb...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations keyboard integrated with touchpad keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 14 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 15 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) RM-F119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 17 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
- Page 18 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Crystal Image’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Crystal Image displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 19 < 3.2 > Options : DP Option - Display Port ( DP 1.0, HDCP 1.3 ) AC Input 100~240V HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) HDMI AC Input 100~240V BNC Option - Composite ( BNC ) AC Input 100~240V AV4.4 Option...
- Page 20 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 21 < Part 4 > < 4.1 > RM-F119 KVM Integration www.rackmountsales.com/v/citumkvm82k.pdf Local Remote 8-port -801D www.rackmountsales.com/v/pdf/citumdvikvm.pdf DVI-D Local Remote 12-port -1201D www.rackmountsales.com/v/pdf/citumcat5mso.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.rackmountsales.com/v/pdf/citumcat5kvmkvm13.pdf...
- Page 22 Intentionally Left Blank UM-CV-751-F19-Q421V1 www.rackmountsales.com...
- Page 23 Intentionally Left Blank UM-CV-751-F19-Q421V1 www.rackmountsales.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-751-F19-Q421V1 www.rackmountsales.com...
