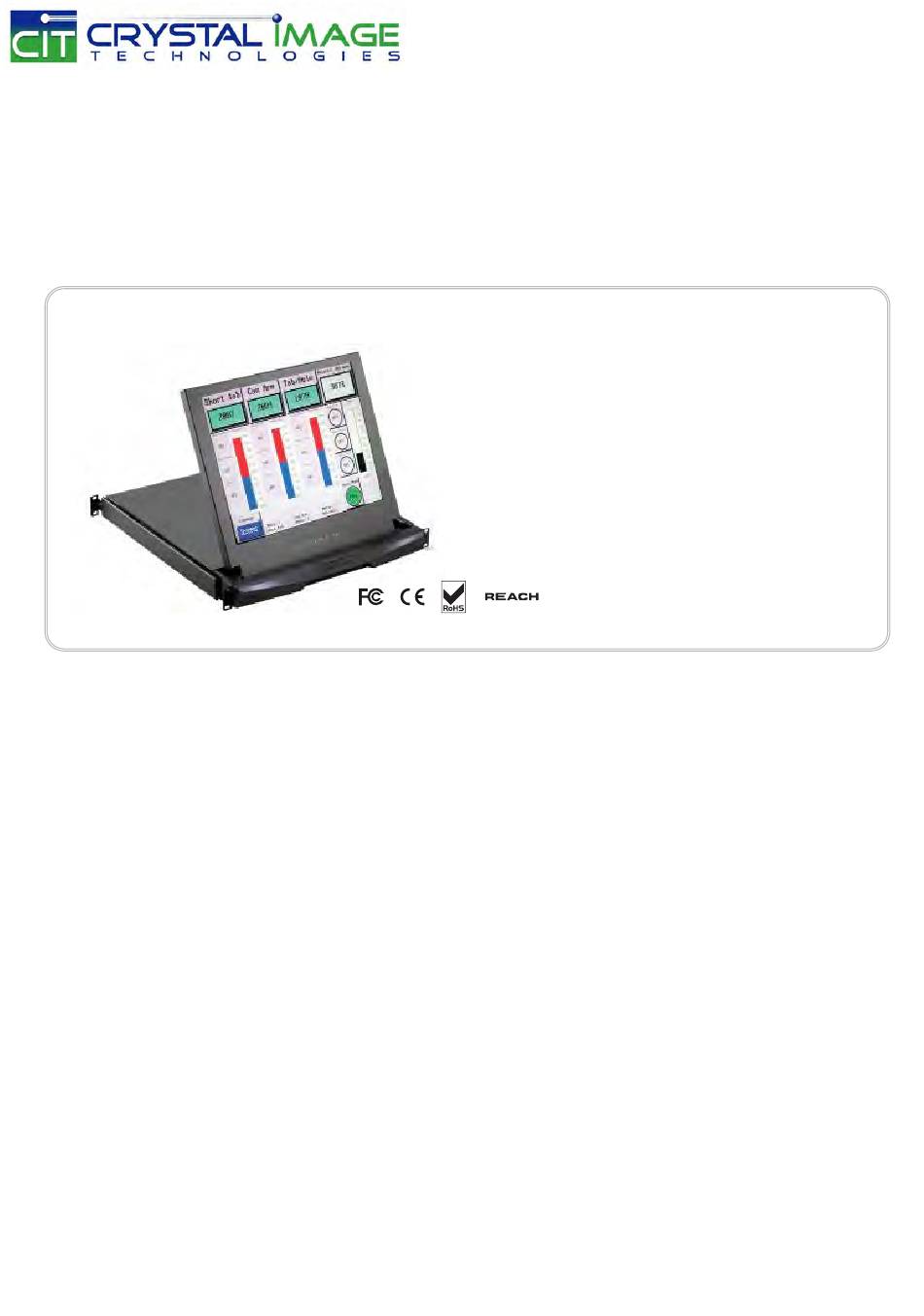

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RMD-152-17 / -19 1U Short Depth LCD Drawer Options : - AV / HDMI / Audio - Touchscreen / DC power UM-CV-751-RP-117-Q117V2 www.rackmountsales.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > RMD-152-17 / -19 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content RMD-152-17 / 19 RMD-152-17 or -19 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 Weight Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm 10.5 kg 16.5 kg RMD-152-17 17.4 x 18.9 x 1.73" 23.1 x 29.8 x 4.7” 23.1 lb 36.3 lb 441.6 x 480 x 44 mm 588 x 758 x 120 mm 12.5 kg...
- Page 7 < 1.3 > Installation - How to install Installation Slides RMD-152-17 / 19 Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■...
- Page 8 < Part 2 > < 2.1 > Product Specifi cations RMD-152-17 RMD-152-19 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ.
- Page 9 RMD-152-17 / 19 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random...
- Page 10 < 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 11 < 2.3 > On-screen Display Operation ( OSD ) RMD-152-17 / 19 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 12 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.2, CEA-861-D - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) Either HDMI or DVI-D can be selected.
- Page 13 < 3.2 > Options : Touchscreen & driver RMD-152-17 / 19 17" / 19" USB Touchscreen Specifi cation 17” 19” 17” 19” Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤...
- Page 14 < 3.3 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-751-RP-117-Q117V2 www.rackmountsales.com...
