Summary of Contents for Crystal Image Technologies RM-114-17

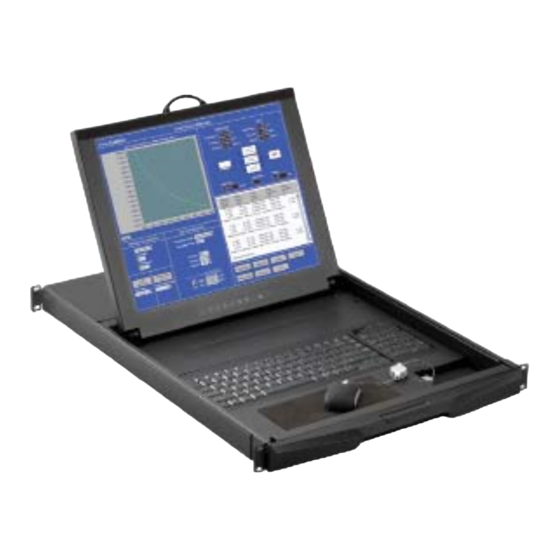

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RM-114-17 / 19 1U LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - DC power UM-CV-751-114-Q113V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RM-114-17 / 19 Package Content Structure Diagram & Dimension P.1 - 2 Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.5 - 6 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.8 - 9... - Page 4 Contents < Part. 4 > KVM Integration www.rackmountsales.com/v/pdf/citumcat5m.pdf Matrix Local Remote 8-port 16-port 32-port Cat6 KVM Cat5M-IP116-3 Cat5M-IP132-3 Cat5M-IP216-4 Cat5M-IP232-4 Cat5M-16-2 Cat5M-32-2 Cat5M-16-3 Cat5M-32-3 Cat5M-16-4 Cat5M-32-4 www.rackmountsales.com/v/pdf/citumcat5.pdf Combo Local Remote 8-port 16-port 32-port Cat6 KVM Cat5-IP08 Cat5-IP16 Cat5-IP32 Cat5-08-2 Cat5-16-2 Cat5-32-2 Cat5-08 Cat5-16...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Part. 1 > Rm-114-17
< Part 1 > < 1.1 > Package Content RM-114-17 or 19 unit X 1 - WOM-01 wired mini USB optical mouse X 1 - KVM-COMBO-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension RM-114-17 / 19 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 442 x 650 x 44 mm 595 x 860 x 140 mm 14.5 kg...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... -
Page 9: Connection
< 1.4 > Connection to PS/2 or USB Server RM-114-17 / 19 LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer LCD console drawer... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) Contrast Ratio ( typ. - Page 11 Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RKP7 RKP9 Specifi...
-
Page 12: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations keyboard WOM-01 Wired mini USB optical mouse option: WOM-02 Wireless USB optical mouse Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 15 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For AV2.2 upgrade, either HDMI or DVI-D is provided.
- Page 16 < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
