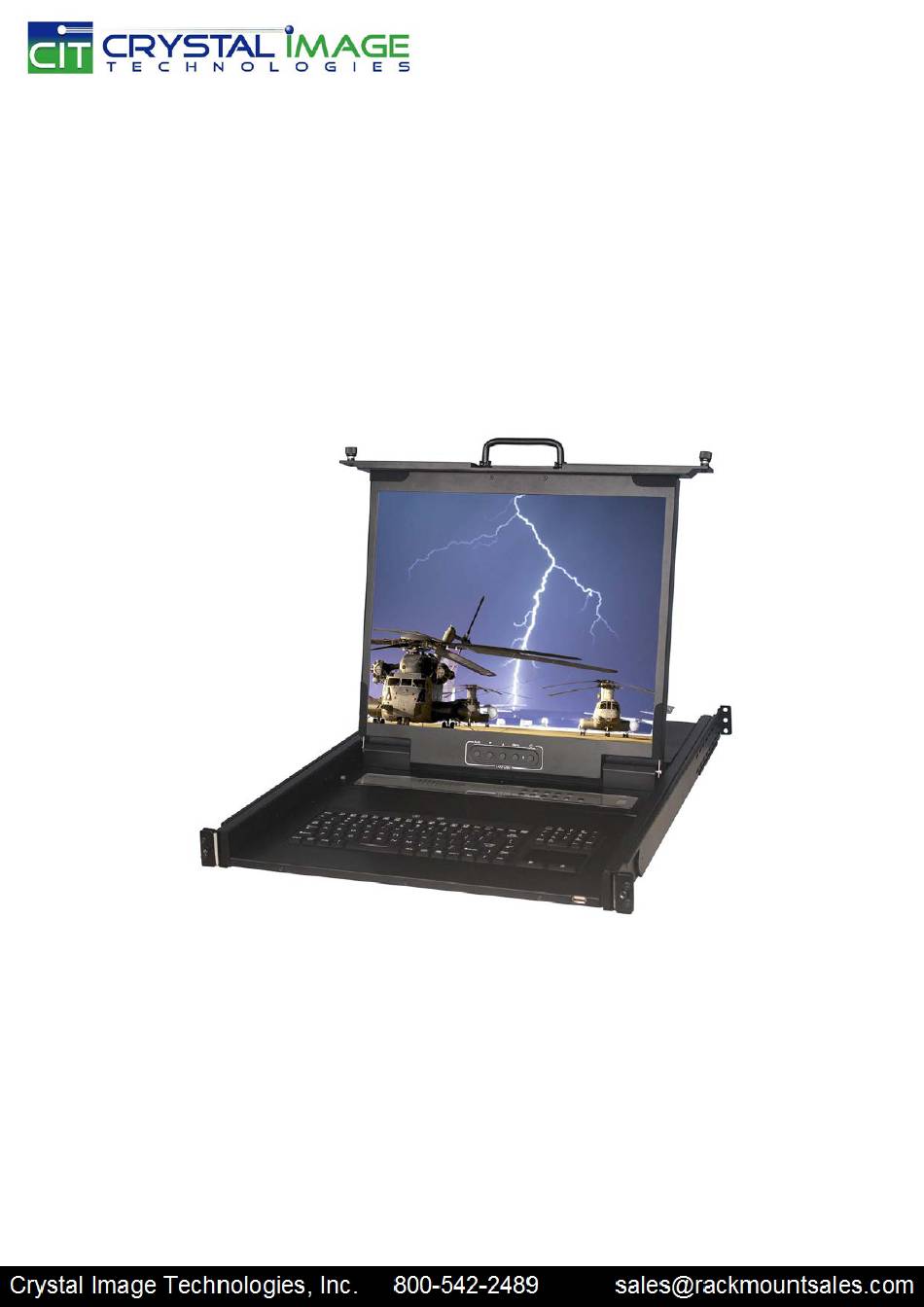

- Page 1 LCD Drawer User Manual RM-111-17A-MIL - 1 -...
- Page 2 This manual, covering various aspects of the equipment such as installation, setup and cascade, will help you make full use of this LCD KVM Drawer. Please read this manual carefully and install and operate the equipment according to the manual to avoid damage to this product its accessories.
-
Page 3: Table Of Contents
Table of Contents Introduction …………………………………………………………………………-4- 1.1Overview…………………………………………………………………...…. -4- 1.2 Functions & Features…………………………………… ……………...…..-4- 1.3 Hardware Requirement……………………………………………..….……-4- 1.3.1 Host Requirement………………………………………………..… -4- 1.3.2 Cables…………………………………………………………...….… -4- 1.4 Product Specifications………………………………………………..….…..-5- 1.5 LCD Specifications………………………………………………….…..……-5- 1.6 Front View………………………………………………………….…..……. -6- 1.7 Rear View……………………………………………………………..….…...-7- Installation……………………………………………………………………...……-8- 2.1 Rack Installation……………………………………………………………… -8- 2.2 Standard Installation……………….………………………………….……... -
Page 4: Introduction

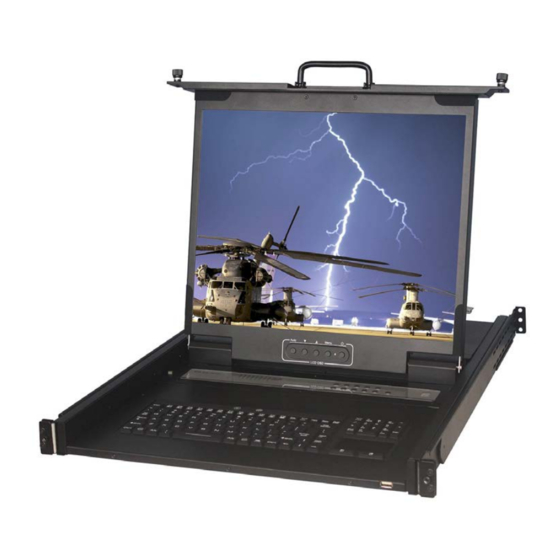

The cover is an LCD display, while the base is keyboard and touchpad. RM-111-17A-MIL console is a control device integrating 17” LCD, 104 keys keyboard and touchpad mouse. You can access multiple hosts using the LCD console while saving money and effort. -
Page 5: Product Specifications
1.4 Product Specifications Model RM-111-17A-MIL Brightness 350cd/m2 Contrast 1000:1 Angle of visibility 170°(H),176°(V) Color display 16.7M 104 keys IP65 silicon keyboard with backlight Keyboard touch pad mouse Mouse USB 2.0 Local Control Keyboard/Mouse 24 pin DVI-D female connector Terminal DVI-D HD-15 female connector USB 2.0... -
Page 6: Front View
Front View Part Function Description Handle to adjust screen position LCD display Keyboard Touchpad LCD button to control Screen Display position and LCD OSD button image setting. Install into 19" EIA rack rails Mounting bracket Lock button Auto lock / release when lcd pull up and down USB2.0 HUB accessory port - 6 -... -
Page 7: Rear View
Rear View Component Function Description AC Power port Lock connector Power Switch Rocker switch, turn on/off equipment main power. For audio function / 3.5mm Audio port Connect to server or KVM. VGA port USB port Connect to server or KVM. DVI port Connect to server or KVM. -
Page 8: Installation
2 Installation 2.1 Rack Installation Step 1 Loosen screw A on both sides to slide and remove the two rear slide rails. Rear Slide Rails Step 2 Attach the two rear slide rails to the rear vertical mounting rails of the rack using standard M6 cage nuts and screws. -
Page 9: Standard Installation
2.2 Standard Installation Please follow the installation drawing and instructions below for standard installation: * Please turn off the Power of Equipment to be Connected * Please Pay Attention to Earthing/Grounding of Equipment The standard installation is completed, and LCD KVM console can be powered on. Then turn power on connected hosts. - Page 10 2.3 LCD KVM Console and KVM Switch Cascade Installation LCD KVM console port can be directly connected to another KVM Switch as cascade to Perform unified management of all connected hosts. Please follow the installation drawing and instructions for standard installation: (1) Make sure to power off all equipment to be connected and existing equipment.
-
Page 11: Lcd Osd Menu Setup
2.4 LCD OSD Menu Setup OSD Control buttons LCD OSD can establish and setup LCD display. Setup instructions of four buttons are as follows: Button Functions POWER Turn on or off the LCD Display Activate OSD menu, select a menu and press MENU key to confirm the MENU selection and enter the submenu. -
Page 12: Certificates
3 Certificates This product has been tested and is proved to meet requirements of Grade B electronic devices and specifications of Section 15 of FCC certification. Please observe following two conditions in operation that: (1) The equipment will not generate any harmful interruption. (2) If the equipment is interrupted, it may cause unnecessary operations.
