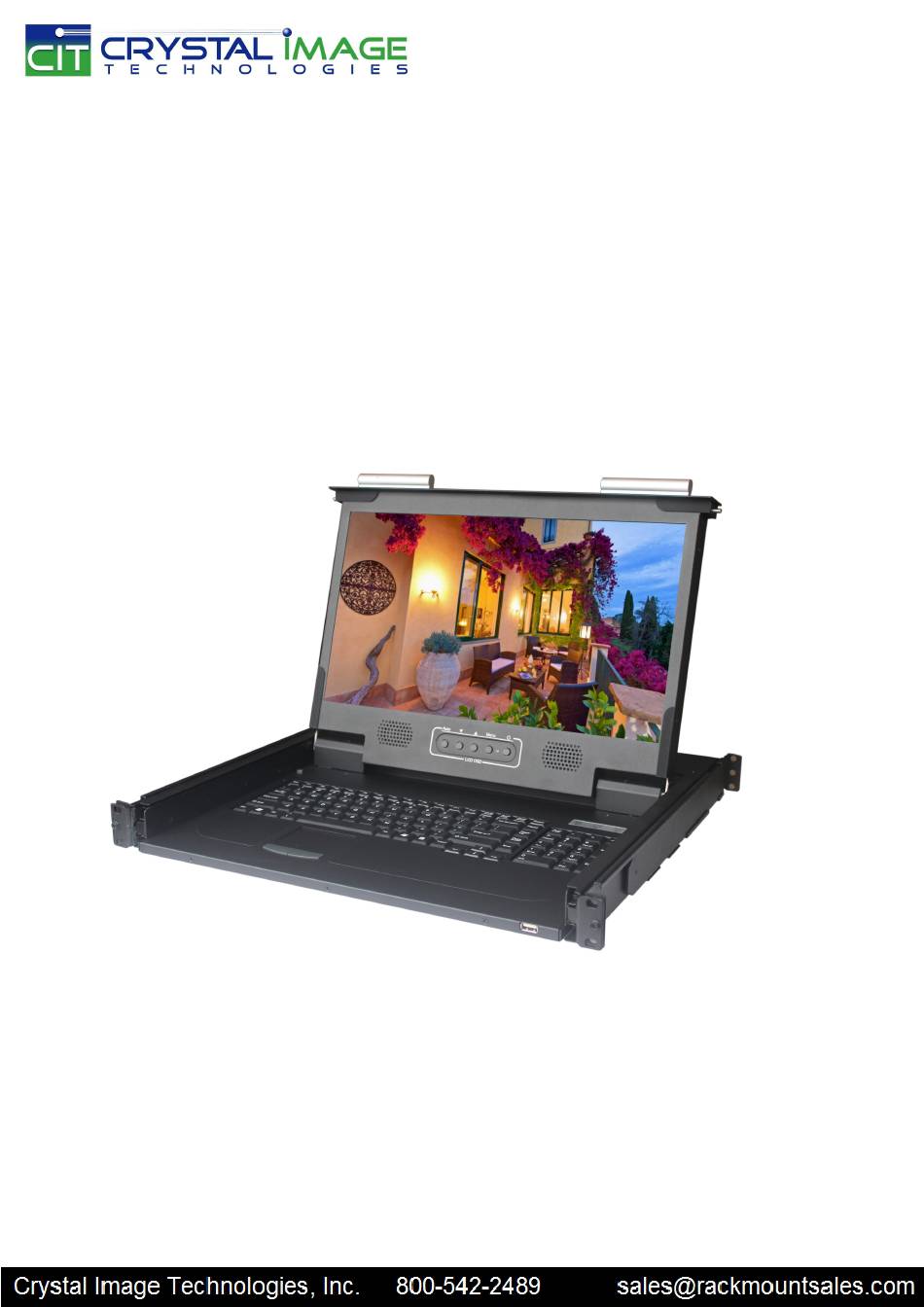

- Page 1 LCD Drawer User Manual RM-K17USD-A - 1 -...
- Page 2 This manual, covering various aspects of the equipment such as installation, setup and cascade, will help you make full use of this LCD KVM Drawer. Please read this manual carefully and install and operate the equipment according to the manual to avoid damage to this product its accessories.
-
Page 3: Table Of Contents
Table of Contents Introduction …………………………………………………………………………-4- 1.1Overview…………………………………………………………………...…. -4- 1.2 Functions & Features…………………………………… ……………...…..-4- 1.3 Hardware Requirement……………………………………………..….……-4- 1.3.1 Host Requirement………………………………………………..… -4- 1.3.2 Cables…………………………………………………………...….… -4- 1.4 Product Specifications………………………………………………..….…..-5- 1.5 LCD Specifications………………………………………………….…..……-5- 1.6 Front View………………………………………………………….…..……. -6- 1.7 Rear View……………………………………………………………..….…...-7- Installation……………………………………………………………………...……-8- 2.1 Rack Installation……………………………………………………………… -8- 2.2 Standard Installation……………….………………………………….……... -
Page 4: Introduction

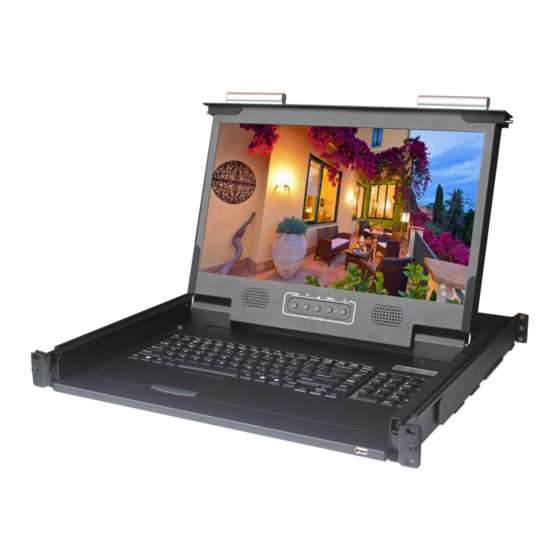

This console is a control device integrating a 17.3” LCD, 104 keys keyboard and touchpad mouse. Function & Features The RM-K17USD-A display is designed to mount in an EIA 19" Rackmount Chassis. Supported resolution up to 3840 x 2160. 1.3 Hardware Requirement 1.3.1 Hosts Requirement:... -
Page 5: Product Specifications
1.4 Product Specifications RM-K17USD-A Model Brightness 400cd/m2 Contrast 1000:1 Angle of visibility 178°(H),178°(V) Color display 16.7M 104 keys Keyboard touch pad mouse Mouse USB 2.0 Local Control Keyboard/Mouse HDMI female connector (HDCP1.4) HDMI 2.0 Terminal Display port 1.4 Display port female connector (HDCP1.3) USB 2.0... -
Page 6: Front View
Front View Part Function Description Handle to adjust screen position LCD display Keyboard Touchpad LCD button to control Screen Display position and LCD OSD button image setting. Install into rack / cabinet Mounting brackets Auto lock / released when lcd is pulled up / down Lock button USB2.0 HUB port - 6 -... -
Page 7: Rear View
Rear View Component Function Description AC Power port Standard IEC Type AC Inlet Power Switch Rocker switch, turn on/off equipment main power. Display port Connect to server. Connect to server. HDMI port USB port Connect to server. For USB peripheral device USB 2.0 - 7 -... -
Page 8: Installation
2 Installation 2.1 Rack Installation Step 1 Attach the two rear slide rails to the rear vertical mounting rails of the rack cabinet using standard M6 cage nuts and screws ( 3 ) (4pcs). Back VIEW Step 2 Attach the two front slide rails to the front vertical mounting rails of the rack cabinet using standard M6 cage nuts and screws ( 3 ) -
Page 9: Standard Installation
* Please Shutdown the Power of Equipment Needs to be Connected * Please Pay Attention to Earthing of Equipment The standard installation is completed, and LCD KVM console can be powered on. Then power on connected hosts. RM-K17USD-A REAR-CHASSIS - 9 -... -
Page 10: Lcd Osd Menu Setup
2.3 LCD OSD Menu Setup OSD Control buttons LCD OSD can establish and setup LCD display. Setup instructions of four buttons are as follows: Button Functions POWER Turn on or off the LCD Display Activate OSD menu, select a menu and press MENU key to confirm the MENU selection and enter the submenu. -
Page 11: Certificates
3 Certificates This product has been tested and is proved to meet requirements of Grade B electronic devices and specifications of Section 15 of FCC certification. Please observe following two conditions in operation that: (1) The equipment will not generate any harmful interruption. (2) If the equipment is interrupted, it may cause unnecessary operations.
