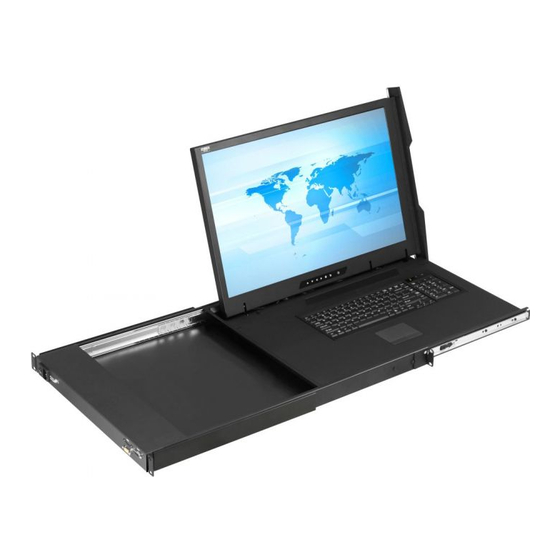

- Page 1 KVM switch and rackmount screen technology User Manual 24” Ultra High Resolution LCD 1920 x 1200 RM-X24 1U LCD Console Drawer Options : - HDMI - SDI - DC power UM-CV-751-X124-Q317V2 www.rackmountsales.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents RM-X24 < Part. 1 > Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations P.8 - 10 On-screen Display Operation ( OSD ) P.11 - 12... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Part. 1 > Rm-X24
< Part 1 > < 1.1 > Package Content RM-X24 unit X 1 - CX-6 6ft DVI-D console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 RM-X24 < 1.2 > Dimension Front View Rear View UNIT : mm 1mm = 0.03937 inch Power DVI-D KB / MS Side View Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 RM-X24 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open ■...
-
Page 10: Connection
via DVI-X cable < 1.4 > Connection to USB Server LCD Console Drawer Power DVI-D KB / MS DVI-X DVI-D console cable DVI-D USB server via DVI-X cable < 1.4 > Connection to external KVM LCD Console Drawer Power DVI-D KB / MS DVI-X DVI-D console cable... -
Page 11: Product Specifi Cations
< Part 2 > RM-X24 < 2.1 > Product Specifi cations Panel Size ( diagonal ) 24.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 12 Physical Product ( W x D x H ) 441.6 x 700 x 44 mm Specifi cation 17.4 x 27.6 x 1.73 inch Packing ( W x D x H ) 595 x 910 x 140 mm 23.4 x 35.8 x 5.5 inch Net Weight 15.3 kgs / 33.7 lbs Gross Weight...
- Page 13 RM-X24 < 2.2 > Standard Keyboard / Mouse Specifi cations tp keyboard integrated with touchpad tb keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball F8 F8 F8 F8 Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion... - Page 15 RM-X24 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 17 RM-X24 < 2.3 > On-screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 18: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.4.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 19 RM-X24 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen...
- Page 20 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input ’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with C displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 21: Part. 3 > Options
< 3.2 > Options : - HDMI ( HDMI 1.3, CEA-861-D ( 1 ) For HDMI option, DVI-D input will be removed. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 23 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-751-X124-Q317V2 www.rackmountsales.com...
