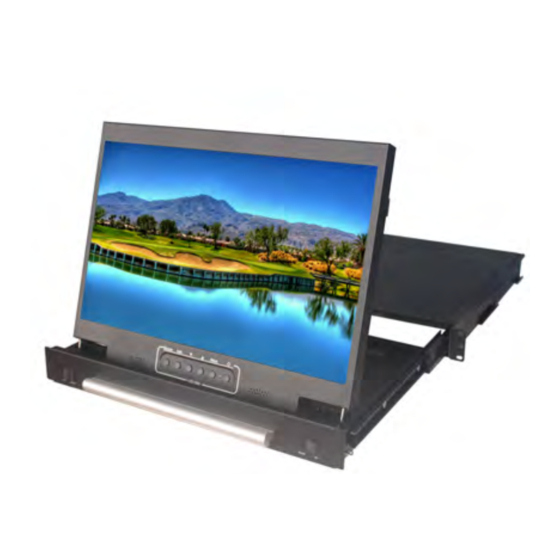

- Page 1 User Manual Rack Mount Industrial Display Drawer RMD-151-A Series 15, 17, 17.3, 19 inch Options : - Composite Video input - HDMI / Display port input - Touchscreen / DC power - 3G / HD / SD-SDI broadcasting grade input...
- Page 2 Legal Information Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > Package Content Structure Diagram & Dimension P.1 - 2 Installation Specifi cations / OSD < Part. 2 > Product Specifi cations P.7 - 8 On-screen Display Operation ( OSD ) < Part. 3 > Options Touchscreen : Resistive, Capacitive P.10 DC power... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Package Content
< Part 1 > < 1.1 > Package Content RMD unit X 1 - 1.8 M VGA cable X 1 - 1.8 M DVI cable X 1 - 1.8 M Audio cable X 1 - Power cord X 1 < 1.2 > Structure Diagram LCD panel LCD OSD Buttons Audio speaker... - Page 6 < 1.2 > Dimension-15 inch Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight RMD- 448 x 425 x 44 610 x 700 x 170 The weight is only for the pure models.
- Page 7 < 1.2 > Dimension-17 inch Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight RMD-17A 448 x 500 x 44 mm 790 x 580 x 190 mm 15.5 kg 19 kg...
- Page 8 < 1.2 > Dimension-17.3 inch Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight RMD-F17A 448 x 425 x 44 mm 610 x 700 x 170 mm 12.5 kg 17 kg...
- Page 9 < 1.2 > Dimension-19 inch Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight RMD-19A 448 x 550 x 44 mm 790 x 580 x 190 mm 17.5 kg 21 kg...
-
Page 10: Installation
< 1.3 > Installation Step Front View Step Back View ■ ■ Insert the left and right rear mounting brackets into Rear mounting bracket, screw M6 *4pcs the display drawer, screw M6 * 4pcs Step Step ■ ■ Unlock Buttons A to the inside direction Fully pull out the LCD ■... -
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations 17'' Panel Size ( diagonal ) 15'' Panel Display pixel ( dots x lines ) 1024 x 768 1280 x 1024 Brightness ( typ. ) Contrast Ratio ( typ. ) 700:1 1000:1 Color... - Page 12 Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz DC Power Range 9~36V DC Regulatory Safety FCC & CE certifi ed Environmental RoHS2 & REACH compliant Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 5~95%, non-condensing Storage Temperature -20 to 60°C degree Humidity...
-
Page 13: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power Menu Auto Source press to select video source P. 9... -
Page 14: Part. 3 > Options
< Part 3 > < 3.1 > Options : Touchscreen USB Touchscreen Specifi cation Model Resistive Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger ≤ 50g / Stylus=R0.8 ≤ 50g Activation Force Durability 10 million touches 300 million touches Response Time 15 ms...
