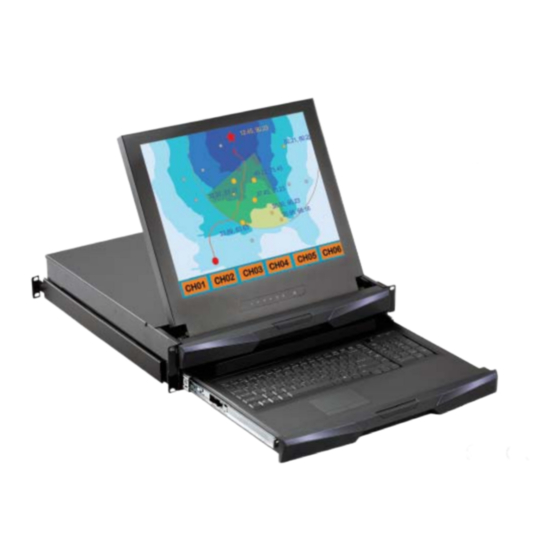

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RM-118-17 / 19 2U Dual Slide LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - Touchscreen - DC power...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RM-118-17 / -19 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations P.8 - 10... - Page 4 Contents < Part. 4 > KVM Integration www.rackmountsales.com/v/pdf/citumcat5m.pdf Matrix Local Remote 8-port 16-port 32-port Cat6 KVM Cat5M-IP116-3 Cat5M-IP132-3 Cat5M-IP216-4 Cat5M-IP232-4 Cat5M-16-2 Cat5M-32-2 Cat5M-16-3 Cat5M-32-3 Cat5M-16-4 Cat5M-32-4 www.rackmountsales.com/v/pdf/citumcat5.pdf Combo Local Remote 8-port 16-port 32-port Cat6 KVM Cat5-IP08 Cat5-IP16 Cat5-IP32 Cat5-08-2 Cat5-16-2 Cat5-32-2 Cat5-08 Cat5-16...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content RM-118-17 or -19 unit X 1 - KVM-Combo-6 cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension RM-118-17 / 19 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 480 x 88 mm 584 x 616 x 216 mm 19.5 kg...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - How to Use the Dual Slides RM-118-17 / 19 Figure 1. ■ A black arrow release button is located on the front of each slide. (shown in Figure 1). ■ Figure 2. Pull and hold the black arrow button on either side of the LCD console drawer to unlock.
-
Page 10: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 server USB serve < 1.4 > Connection to external KVM LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 console KVM... -
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RM-118-17 / 19 RM-118-17 RM-118-19 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 12 -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random RM-118-17 RM-118-19 Physical Specifi cation Product ( W x D x H ) 441.6 x 480 x 88 mm 441.6 x 480 x 88 mm 17.4 x 18.9 x 3.5 inch...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations RM-118-17 / 19 keyboard integrated with touchpad keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support... - Page 14 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball F8 F8 F8 F8 Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion...
- Page 15 < 2.2 > SUN Keyboard / Mouse Options RM-118-17 / 19 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 17 < 2.3 > On-screen Display Operation ( OSD ) RM-118-17 / 19 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 18 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For dual slide 1U / 2U LCD console drawer, the user can only select one of the above four options.
- Page 19 < 3.2 > Options : Touchscreen & driver RM-118-17 / 19 17” / 19" USB Touchscreen Specifi cation 17’ 19” 17” 19” Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤...
- Page 20 < 3.3 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
