Chapter 3: System Setup

Panel Mounting

1. Select a place on the panel where you will mount the panel PC.
2. Cut out a shape on the panel that corresponds to the panel PC's rear
dimensions.
The thickness of the panel (e.g. steel board, plank, acrylic board, wall,
etc.) where you will mount the panel PC must not exceed 9.5mm. If the
distance between the front bezel and panel mount hole is too wide, it will
not fit the panel mount kit.

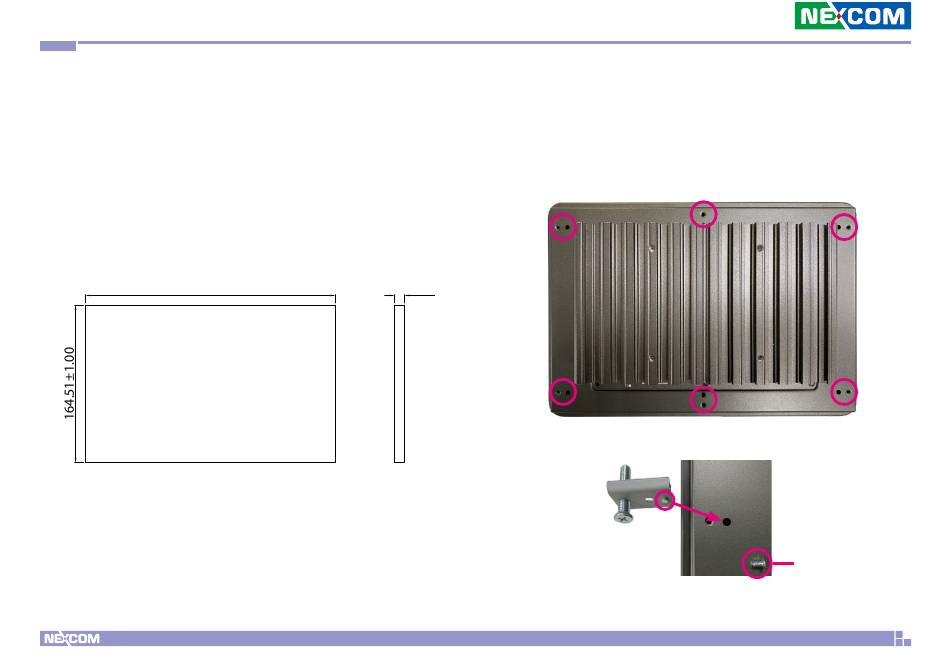

246.50±1.00
CUT OUT SIZE T=9.50mm (MAX)
3. Slide the panel PC through the hole until it is properly fitted against the
panel.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
4. Position the mounting clamps along the rear edges of the panel PC. The
first and second clamps must be positioned and secured diagonally prior
to mounting the rest of the clamps.
9.50
27
6 * Screws
(F3x5 Nylok NI+Heat)
