Embedded Flash Utility
This mainboard is equipped with an Erasable Flash ROM and an Embedded Flash
Utility which allows the user to update the BIOS to a newer version. Embedded
Flash Utility eases BIOS upgrade and eliminate the compatibility issue between
different Flash ROM type and version of Flash utility.
Update Your System BIOS
1. Start computer, upon post, press ALT+F2 Keys to enter AWDFLASH setup.
2. Insert the floppy disk with the latest BIOS file into the floppy drive A(or B)
and then press Enter to start programming.
(C) Award Software 2000 All Right Reserved
For XXX-XXXXXXX-6A69MC3DC-0 DATE: 010/4/2000
Flash Type- XXXXX E82802AB / 3.xV(1Mb)
File Name to Program :
Programming Flash Memory
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
1 2
1 2
Write OK
1 2
Warning : Don't Turn Off Power Or Reset System !
3. When finished, the system will automatically restart.
Note:
!
Flash BIOS Protection must be set to Disabled in the Advance Chipset
Feature from the CMOS Setup Utility menu. See Chapter 3.
!
Don't turn off or restart your system during programming process.
!
Make sure that your floppy diskette have only one BIN file to aviod
confussion.
Appendix II
  FLASH MEMORY WRITER V 7.52C
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7
1 2 3
1 2 3
1 2 3

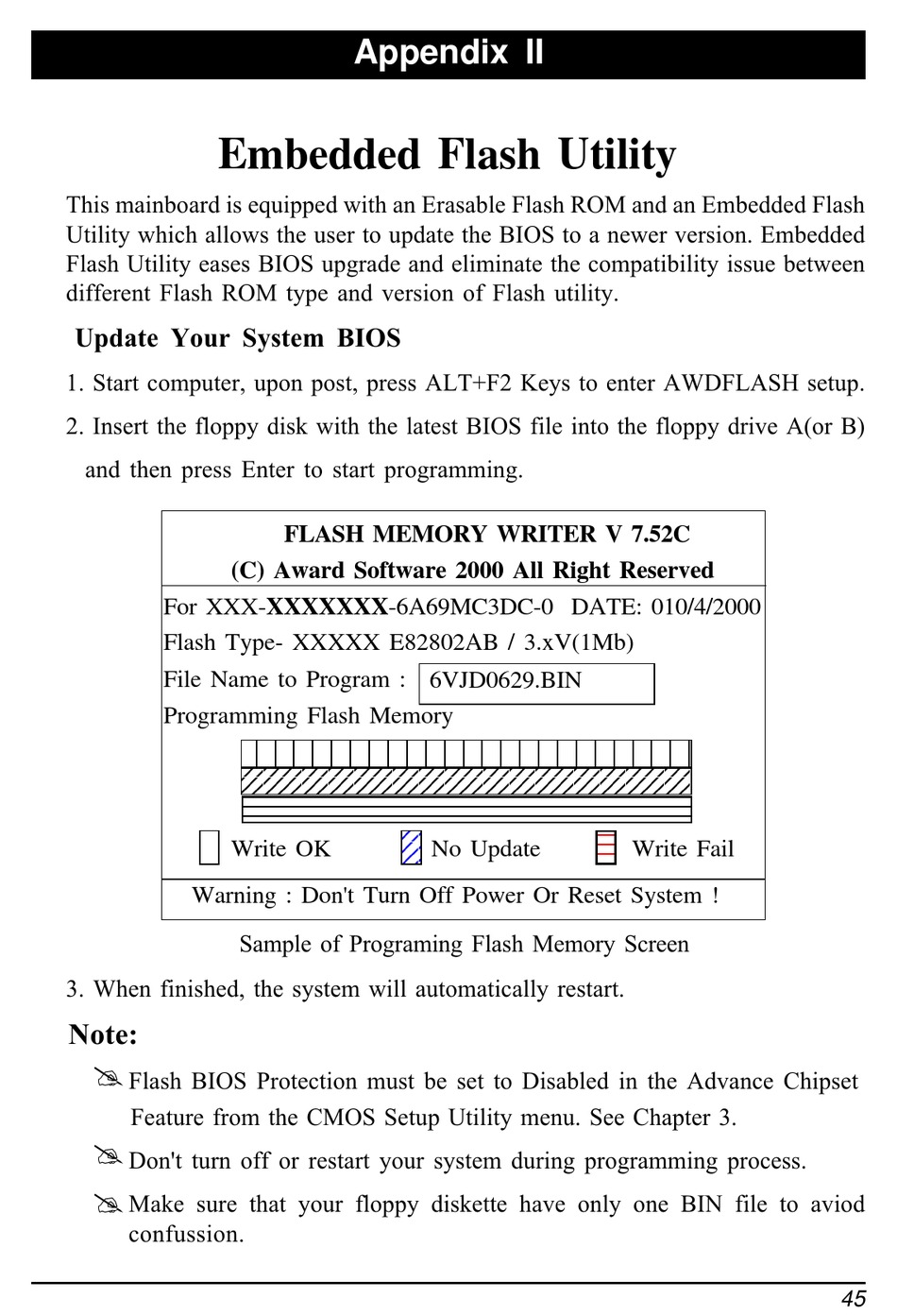

Sample of Programing Flash Memory Screen
6VJD0629.BIN
1 2 3
1 2 3
No Update
1 2 3
1 2 3
Write Fail
