Summary of Contents for CHAINTECH 6VJD2

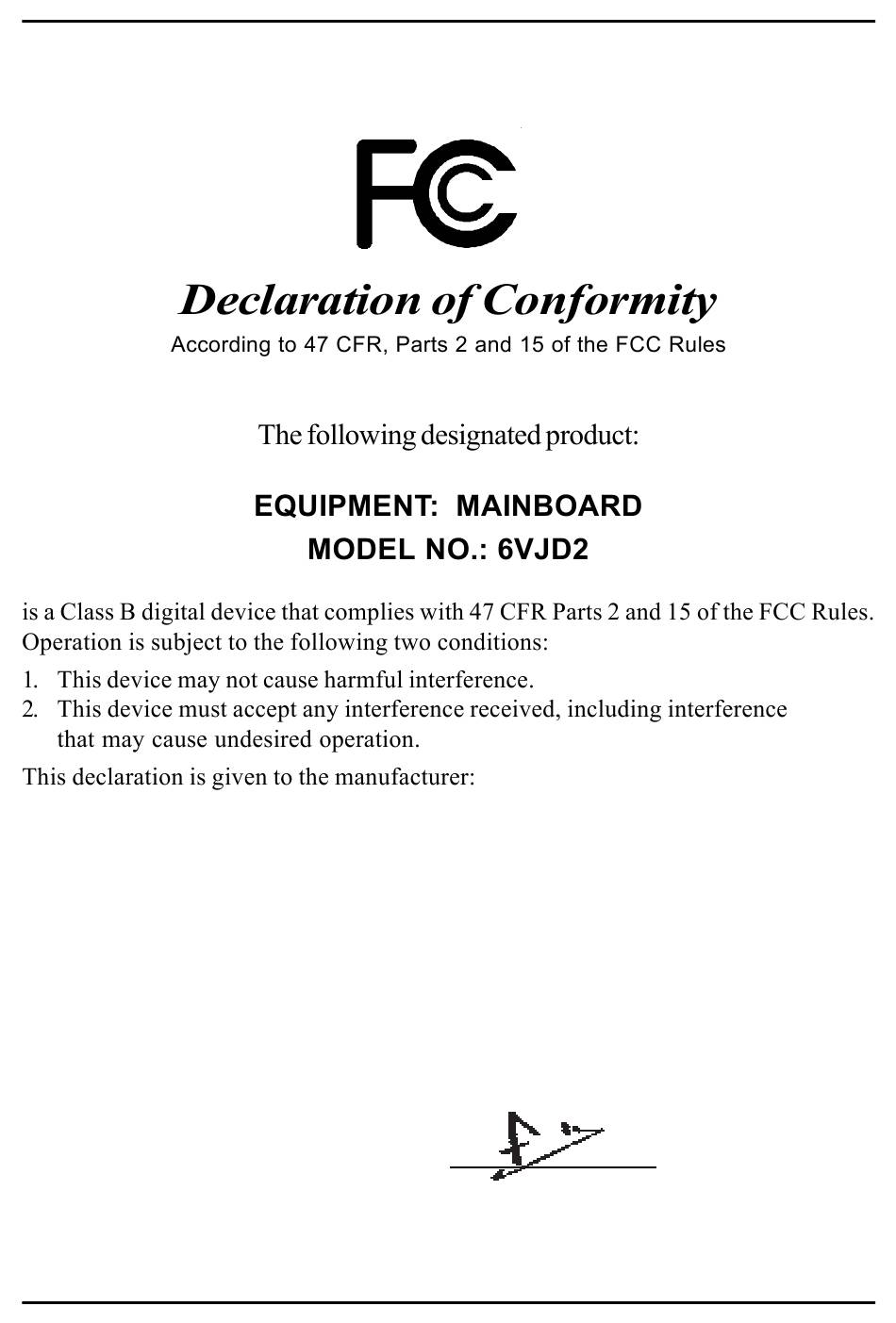

  • Page 1 CHAINTECH-EXCEL COMPUTER INC. 4427 Enterprise St. Fremont, CA 94538, U.S.A. http://www.chaintech-excel.com Chaintech President: Simon Ho Signature:...
  • Page 2 PO ST-CON SUMER RECYCLED PAPER...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction ................ 1 Product Specifications ............1 Package Contents ..............4 Mainboard Layout ..............5 Connector and Jumper Reference Chart ......6 Chapter 2 Hardware Setup ..............7 Introduction to Jumpers ............7 Installing a CPU in a Socket 370 .......... 8 CPU Jumper Configuration..........8 Connector and Jumper Settings.........10 Main Memory Configuration ..........

  • Page 4: Chapter 1 Introduction

    Introduction Chapter 1 Introduction 1-1 Product Specifications r r r r r r r r r r r r r r r - Two 3.3V 168-pin DIMM sockets support up to 2GB - Supports PC-100, PC-133 SDRAM, and VCM r r r r r r r r r r r r r r r r r r r r...
  • Page 5 Chapter 1 r r r r r r r r r r r r r r r r r r r r r r r r r...
  • Page 6 Introduction r r r r r...

  • Page 7: Package Contents

    Chapter 1 1-2 Package Contents...

  • Page 8: Mainboard Layout

    Introduction 1-3 Mainboard Layout...

  • Page 9: Connector And Jumper Reference Chart

    Chapter 1 1-4 Connector and Jumper Reference Chart...

  • Page 10: Chapter 2 Hardware Setup

    Hardware Setup Chapter 2 Hardware Setup 2-1 Introduction to Jumpers...

  • Page 11: Installing A Cpu In A Socket 370

    Chapter 2 2-2 Installing a CPU in a Socket 370 Installing a heat sink with cooling fan is necessary for proper heat dissipation from your CPU. Failing to install these items may result in overheating and possible burnout of your CPU. 2-3 CPU Jumper Configuration ON:SHORT OFF:OPEN...
  • Page 12 Hardware Setup...

  • Page 13: Connector And Jumper Settings

    Chapter 2 2-4 Connector and Jumper Settings ATX Power Supply Connector (PW1) Software Power-Off Control Power-On By Modem...

  • Page 14: Over-Ride Power Button

    Hardware Setup Front Panel Connector Set (CN5) A through F A. Over-ride Power Button Connector B. Power Indicator LED Connector...

  • Page 15: Poly-Fuse Over Current Protection

    Chapter 2...
  • Page 16 Hardware Setup Clear CMOS Data (JP1) CPU Bus Frequency (JP5/JP6) Auto 100MHz Open 133MHz Open Open Onboard Audio (JP7) Disable Enable(default) This function allows you to enable and disable the on board audio. You must set the jumper's cap to pins 1-2 to enable or set pins 2-3 to disable this function.
  • Page 17 Chapter 2 Power-On By Keyboard (JP8) This board is able to be turned on by the PS/2 keyboard (hot key/Password). To use this function, select a device of your choice at the Power on Function option in BIOS's Integrated Peripherals screen.
  • Page 18 Hardware Setup CD-ROM Audio-in (CN2) Auxiliary CD-ROM Audio-in (CN3) Optional Audio Mono -in/out (CN4) Use the mono audio cable enclosed with your audio device to your mainboard. This will enable mono audio in/out function. PS/2 Mouse and Keyboard Ports (PT1) Definition Data No Connection...

  • Page 19: Wake Up On Lan

    Chapter 2 WOL (Wake-on-LAN) Connector (CN6) Bass/Center Speaker Connector (CN7) This connector is for Center+Bass speaker output ext. Plug in the optional AC3 Surround Center+Bass jack extension into this connector. The black colored jack is for surround speaker output and the orange colored jack is for center+bass speaker output.
  • Page 20 Hardware Setup USB Ports and USB 3/4 Connector (CN14) If you want to use a USB keyboard, you must enable the onchip USB & USB keyboard support function in BIOS's Integrated Peripherals menu (See Section 3-4). USB is an open industry standard, providing a simple and inexpensive way to connect up to 125 devices to a single computer port.

  • Page 21: Main Memory Configuration

    Chapter 2...

  • Page 22: Chapter 3 Award Bios Setup Program

    Award BIOS Setup Program Chapter 3 3 3 3 3 3 Award BIOS Setup Program Award's BIOS ROM has a built-in setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM so that it can retain the setup information, even when the power is turned off.

  • Page 23: Standard Cmos Setup

    Chapter 3 3-1 Standard CMOS Features The Standard CMOS Features allows users to configure system components such as hard disk drive, floppy disk drive and video display as well as date, time and boot up error signaling. This configuration menu should be changed when installing a mainboard for the first time, changing hardware in your system such as the HDD, FDD, video display, or when the CMOS data has been lost or contaminated.
  • Page 24 Award BIOS Setup Program Type (Auto/User/None): Use the fields under the Type column to determine the method you will use to configure the IDE devices. If you choose Auto, BIOS will automatically detect and make optimal settings for most IDE hard drives. The mainboard manufacturer recommends that you choose Auto for all drives.
  • Page 25 Chapter 3 * Large - for IDE drives that do not support LBA and have more than 1024 cylinders. Try this setting if your hard disk does not operate properly with the LBA setting. Large mode is not supported by all operating systems, i.e., only certain versions of DOS support large mode.

  • Page 26: Advanced Bios Features Setup

    Award BIOS Setup Program 3-2 Advanced BIOS Features By choosing the Advanced BIOS Features option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard. CMOS Setup Utility- Copyright (C) 1984-2001 Award Software Advanced BIOS Features Item Help Anti-Virus Protection...
  • Page 27 Chapter 3 B. Cache Control CPU Internal Cache/External Cache Cache memory is much faster than conventional DRAM system memory. These fields allow you to enable or disable the CPUs Level 1 built-in cache and Level 2 external cache. Both settings are left enabled to significantly increase the performance of your computer.
  • Page 28 Award BIOS Setup Program Typematic Delay (Msec) The typematic delay sets how long after you press a key that a character begins repeating. E. Security Option The Supervisor and/or User Password functions shown in Figure 3-1 must be set to take advantage of this function. See Section 3-11 for password setting information.

  • Page 29: Advanced Chipset Setup

    Chapter 3 3-3 Advanced Chipset Features By choosing the Advanced Chipset Features option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard. CMOS Setup Utility- Copyright (C) 1984-2001 Award Software Advanced Chipset Features Item Help DRAM Clock/Drive Control...
  • Page 30 Award BIOS Setup Program B. AGP & P2P Bridge Control AGP Aperture Size This function determines the amount of system memory that is given to the AGP card. Options range from 4MB to 128MB. This is a dynamic memory allotment in that the AGP card will only use the amount of memory that it needs.
  • Page 31 Chapter 3 F. Video RAM Cacheable Enabling this function will allows caching of the video RAM, resulting in better system performance. However, if any programs write to this memory area, a system error may occur. G. Flash BIOS Protection The mainboard manufacturer developed BIOS protection technology that protects the System BIOS from accidental corruption by unauthorized users or computer viruses.

  • Page 32: Integrated Peripherals

    Award BIOS Setup Program 3-4 Integrated Peripherals This section provides information on setting peripheral devices. By choosing the Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.
  • Page 33 Chapter 3 B. VIA OnChip PCI Device VIA-3058 AC97 Audio This feature allows you to enable the on-board audio function. VIA-3068 MC97 Modem This feature allows you to enable the on-board modem function. VIA OnChip LAN This feature allows you to enable the on-board LAN function C.

  • Page 34: Power Management Setup

    Award BIOS Setup Program 3-5 Power Management Setup This section provides information on the Green PC power management functions. By choosing the Power Management Setup option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard CMOS Setup Utility- Copyright (C) 1984-2001 Award Software Power Management Setup...
  • Page 35 Chapter 3 C. Video Off Option This setting allow you to selects the power-saving modes during which the monitor goes blank. D. Video Off Method This function serves as both a screen saver and power saver for monitors. See the next function, Video Off After, for setting the video timer. Blank - BIOS will only blank the monitor's screen.

  • Page 36: Power On By Alarm

    Award BIOS Setup Program G. IRQ/Event Activity Detect PS2KB Wakeup When enabled, the system is able to be turned on by a PS2 keyboard hot key. Power On PCI Card When enabled, a PCI interface that receives a signal will wake up the system from soft off and green mode.

  • Page 37: Pnp/Pci Configuration

    Chapter 3 3-6 PNP/PCI Configuration This section provides IRQ and DMA setting information. By choosing the PNP/ PCI Configuration option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard.

  • Page 38: Pc Health Status

    Award BIOS Setup Program 3-7 PC Health Status By choosing the PC Health Status option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard. CMOS Setup Utility- Copyright (C) 1984-2001 Award Software PC Health Status Item Help Shutdown Temperature...

  • Page 39: Frequency/Voltage Control

    Chapter 3 3-8 Frequency/Voltage Control By choosing the Frequency/Voltage Control Setup option from the CMOS Setup Utility menu (Figure 3-1), the screen below is displayed. This sample screen contains the manufacturer's default values for the mainboard. CMOS Setup Utility- Copyright (C) 1984-2001 Award Software Frequency/Voltage Control CPU Vcore Select Default...

  • Page 40: Load Fail-Safe Defaults

    Award BIOS Setup Program 3-9 Load Fail-Safe Defaults Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS Setup Utility menu (Figure3-1). If the stored record created by the setup program becomes corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer.

  • Page 41: Load Optimized Defaults

    Chapter 3 3-10 Load Optimized Defaults Load Optimized Defaults loads the default system values directly from the CMOS Setup Utility menu (Figure3-1). If the stored record created by the setup program becomes corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer.

  • Page 42: Supervisor Password & User Password Setting

    Award BIOS Setup Program 3-11 Supervisor Password & User Password Setting There are four different variables that control password settings. The first two are located under the Security Option function in BIOS Features Setup Menu (Figure 3-1). When the Security Option function is set to Setup, a password is required to enter BIOS and change BIOS settings.

  • Page 43: Save And Exit Setup

    Chapter 3 B. Set Both Supervisor Password and User Password Figure 3-13 Set Both Supervisor and User Password 3-12 Save and Exit Setup If you select this and type Y (for yes) followed by the [Enter] key, the values entered in the setup utilities will be recorded in the CMOS memory of the BIOS chip.

  • Page 44: Chapter 4 Brief Software Driver Guide

    Brief Software Driver Guide Chapter 4 Chapter 4 Chapter 4 Chapter 4 Chapter 4...
  • Page 45 Chapter 4...

  • Page 46: Appendix I On Board I/O Addresses & Irq Maps

    Appendix I On Board I/O Addresses & IRQ Maps @ @ @ @ @...
  • Page 47 User's Manual...

  • Page 48: Appendix Ii Embedded Flash Utility

    Appendix II Embedded Flash Utility FLASH MEMORY WRITER V 7.52C (C) Award Software 2000 All Right Reserved For XXX-XXXXXXX-6A69MC3DC-0 DATE: 15/2/2001 Flash Type- XXXXX E82802AB / 3.xV(1Mb) File Name to Program : 6VJD2215.BIN Programming Flash Memory 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4...
  • Page 49 User's Manual...

  • Page 50: Appendix Iii Cmedia 8738 Audio Subsystem

    Appendix III CMedia 8738 Audio Subsystem The CMedia 8738 offers a new generation PCI audio solution: it utilizes the state-of- ® the-art CRL 3D Audio technology (HRTF 3D positional audio), and supports ® ® ® ® Microsoft Direct Sound 3D and Aureal 's A3D interfaces.
  • Page 51 User's Manual Installation 1. Connect the front pair speakers to the Line-out jack of the audio adapter, and then connect rear pair speakers to Line-in/Rear jack of the audio adapter. The original Line-in can be moved to Aux-in. 2. Install the audio driver and Audio Rack application software(see chapter 4). 3.
