Declaration of Conformity
According to 47 CFR, Parts 2 and 15 of the FCC Rules
is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC
Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
This declaration is given to the manufacturer:
509 Valley Way, Milpitas, CA 95035, U.S.A.
The following designated product:
EQUIPMENT : MAINBOARD
MODEL NO. : 6WFV/6WFV2
CHAINTECH COMPUTER U.S., INC.
Tel: 1-408-935-6988
Fax: 1-408-935-6989
Chaintech President: Simon Ho
Signature:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6WFV and is the answer not in the manual?

Questions and answers

Summary of Contents for CHAINTECH 6WFV

  • Page 1 According to 47 CFR, Parts 2 and 15 of the FCC Rules The following designated product: EQUIPMENT : MAINBOARD MODEL NO. : 6WFV/6WFV2 is a Class B digital device that complies with 47 CFR Parts 2 and 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 2 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3: Table Of Contents

    T T T T T ab le of Contents le of Contents ab le of Contents le of Contents le of Contents Chapter 1 Introduction ................ 1 Product Specifications ............1 Product Feature ..............4 Package Content ..............5 Mainboard Layout ..............6 Connector and Jumper Reference Chart ......
  • Page 4: Chapter 1 Introduction

    Introduction +D=FJAH Introduction 1-1 Product Specifications ! ! ! ! !  Processor - Supports Socket-370 processors up to 800MHz ( Intel 810E supports 1GHz ) processors - Supports 66/100 (Intel 810E support 133MHz ) system clocks - High efficiency switching power modules with dual power delivery ( VRM v8.4 compliant ) ! ! ! ! !  Chipset - Intel 810 or 810E three chip AGPset w/integrated 2D/3D graphics...
  • Page 5 Chapter 1 ! ! ! ! !   Onboard Super I/O Controller - WB 83627HF LPC I/O with System Monitor Hardware - One Parallel (SPP/ECP/EPP) and one Serial (16550A compliant) ports - One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode, and 1Mbps transfer rates - Supports IrDA SIR and ASKIR function shared with 2nd serial port - Supports Game/MIDI port...
  • Page 6 Introduction ! ! ! ! !   Optional Intel 82559 Fast Ethernet Controller - Integrated IEEE 802.3 10BASE-T and 100BASE-TX compatible PHY - Glueless 32-bit PCI master interface - Supports 128 Kilobyte Flash interface - Low power (125mA @ 3.3V) ! ! ! ! !   Embedded System Monitoring Hardware - 8 voltage inputs for Vcore, 3.3v, 2.5v, +/-12v, +5v, 5Vsb, Vbat - 2 temperature inputs VT1 for CPU thermal diode, VT2 for System temperature...
  • Page 7: Product Feature

    Chapter 1 1-2 Product Feature - Innovative SeePU technology for jumperless CPU installation - Poly-fuse over-current protection for USB and keyboard circuitry - ACPI STR (Suspend to RAM) ready! - Complete Data Security: * Flash BIOS write protection against unauthorized access * Trend ChipAway Virus for a 100% virus free system boot-up * Embedded Flash Utility to ease BIOS upgrade and eliminate in compatibility with the flash utility version.
  • Page 8: Package Content

    Introduction 1-3 Package Contents This product comes with the following components: ! One mainboard ! One 40-pin Ultra DMA-66 IDE connector ribbon cable (Figure 1-1) * Color coded connection for UDMA/66 cable Blue to mainboard, Gray to Master and Black to slave ! One 34-pin floppy disk drive ribbon cable (Figure 1-2) ! One User's Manual ! One CD-ROM that includes...

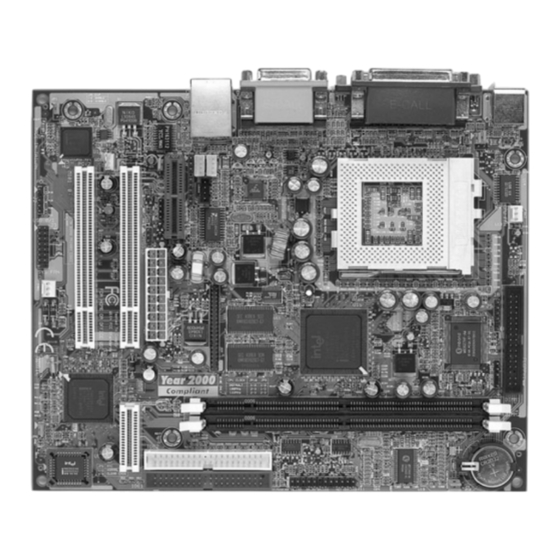

  • Page 9: Mainboard Layout

    Chapter 1 PS/2 Mouse Game Port 1-4 Mainboard Layout Printer Port PS/2 Keyboard COM1 Line-out Line-in USB RJ45 JP2,JP5,J5,J6,J7 J1,J2,JP1,FAN1 JP7, JP8, FAN2 JP9/JP10,J11 1-5 Connector and Jumper Reference Chart Jumper & Function Page Connector No. Onboard LAN Chip Primary Audio CODEC select Chassis Intrusion Detection Clear CMOS Data Jumper USB Device Power On Function...
  • Page 10: Chapter 2 Hardware Setup

    Hardware Setup Chapter 2 Chapter 2 Chapter 2 Chapter 2 Chapter 2 Hardware Setup If your mainboard has already been installed in your computer you may still need to refer to this chapter if you plan to upgrade your system's hardware. Be sure to disconnect the power cable from the power source before performing any work on your mainboard, i.
  • Page 11: Installing A Cpu In A Socket 370

    Chapter 2 2-2 Installing a CPU in a Socket 370 2-3 Setting Your CPU's Parameters( SeePU Technology) 5AA27 5AA27...
  • Page 12: Connector And Jumper Settings

    Hardware Setup 2-4 Connector and Jumper Settings Connectors are used to link the system board with other parts of the system, including the power supply, the keyboard, and the various controllers on the front panel of the system case. The power supply connector is the last connection to be made while installing a mainboard.
  • Page 13: Over-Ride Power Button

    Chapter 2 Front Panel Connector Set (J11) A through E A. Over-ride Power Button Connector B. Keyboard Lock & Power Indicator LED Over-ride Power Button Operation Connector Definition +5V DC Power Indicator LED 2 No Connection Ground Key Lock Keyboard Lock Ground Blinking LED in Suspend Mode...
  • Page 14: Suspend To Ram

    Hardware Setup C. Green Switch/Green LED Connector D. System Reset Switch Connector Definition System E. Speaker Connector Definition Speaker Signal +5V DC F. IDE Activity LED Connector G. Turbo LED Connector Suspend to RAM (STR)
  • Page 15 Chapter 2 Onboard LAN Chip (JP1) Enabled Disabled This function allows you to enable and disable the on board LAN Chip. You must set the jumper's cap to pins 1-2 to enable or set pins 2-3 to disable this function. Primary Audio CODEC select (JP2) CODEC AMR(Soft Audio/Modem riser).
  • Page 16 Hardware Setup Clear CMOS Data Jumper (JP6) Clear CMOS data Normal (default) To clear the contents of the CMOS, please follow the steps below. 1. Disconnect the system power supply from the power source. 2. Set the jumper cap at location 2~3 for 5 seconds, then set it back to the default position.
  • Page 17 Chapter 2 CPU Bus Frequency (JP9/JP10) JP10 Auto (default) 1~ 2 1 ~ 2 100MHz 1~ 2 2~ 3 i810E Support 133MHz 2~ 3 2~ 3 This jumper allows the CPU bus frequency to be determined either by the CPU or the user. Set both jumper cups to pin 1-2 (default) if you are not sure what frequency your CPU support.
  • Page 18 Hardware Setup AOL (Alert-On-LAN) Connector (J2) Alert On LAN enabled LAN controller to report messages to a network management console without the aid of the system processor. This is crucial in cases where the processor is malfuntioning or cannot function due to being in a low power state. In order to use this function, the connector must be connected to a LAN card that support AOL feature.
  • Page 19 Chapter 2 CD-ROM Audio-in (J7) Use the audio cable enclosed with your CD-ROM disk drive to connect the CD-ROM to your mainboard. This will enable your CD-ROM's audio function. Optional LTI Header (J8) This connector is to be connected to an optional LCD/TV-out adapter card.
  • Page 20 Hardware Setup USB 0/1 Ports (CN1) If you want to use a USB keyboard, you must enable the onchip USB & USB keyboard support function in BIOS's Integrated Peripherals menu (See Section 3-4). USB is an open industry standard, providing a simple and inexpensive way to connect up to 125 devices to a single computer port.
  • Page 21: Main Memory Configuration

    Chapter 2 2-5 Main Memory Configuration The DRAM memory system consists two banks and the memory size ranges from 16~256 MBytes. If you only use one bank it does not matter which one you use and if you use two or more banks, it does not matter which bank you install first. DRAM Specifications DIMM type: 3.3V, 64/72-bit PC100 Synchronous DRAM...
  • Page 22: Chapter 3 Award Bios Setup Program

    Award BIOS Setup Program Chapter 3 3 3 3 3 3 Award BIOS Setup Program Award's BIOS ROM has a built-in setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM so that it can retain the setup information, even when the power is turned off.
  • Page 23 User's Manual Memo...
  • Page 24: Chapter 4 Brief Software Driver Guide

    Chapter 4 Brief Software Driver Guide The Mainboard Software Guide is found on the CD-ROM that is enclosed with your mainboard and is a PDF file which must be viewed with Adobe's freeware called ® Acrobat Reader. The Acrobat Reader software is also included on the same CD- ROM.
  • Page 25 Chapter 4 Memo...
  • Page 26: Appendix I On Board I/O Addresses & Irq Maps

    Appendix I Appendix I Appendix I Appendix I Appendix I On Board I/O Addresses & IRQ Maps System Resource I/O Address 1. Timer IRQ0 040, 043 2. Keyboard IRQ1 060, 064 3. Programmable INT IRQ2 0020, 0021, 00A0, 00A1 4. COM2(B) IRQ3 2F8, 2FF 5.
  • Page 27 User's Manual Memo...
  • Page 28: Appendix Ii Embedded Flash Utility

    Appendix II Appendix II Appendix II Appendix II Appendix II Embedded Flash Utility This mainboard is equipped with an Erasable Flash ROM and an Embedded Flash Utility which allows the user to update the BIOS to a newer version. Embedded Flash Utility eases BIOS upgrade and eliminate the compatibility issue between different Flash ROM type and version of Flash utility.
  • Page 29 User's Manual Memo...
