Section A
• Screw the four enclosed ¼" hex stand-offs into the Slider Assembly. See View 1 on Page 7.
• Place the Barcode Scanner Assembly on top of the Slider Assembly so that they are perpendicular (+) to
each other. See Figure 6.
• Align the four holes of the Barcode Scanner Assembly with the hex stand-offs.
• Install the four screws provided through the Scanner Assembly, and into the four hex stand-offs. Tighten
the screws securely, but be careful not to over-tighten. See View 1 on Page 7.
• Plug the Barcode Scanner Interface cable into the appropriate connector on the Linear Main Board. See
Figure 6.
• Be certain the retaining latch clicks into place.
Section B
• Place Barcode Scanner Assembly on top of Slider Assembly so that they are perpendicular (+) to each
other. See View 2 on Page 7.
• Install the four screws provided through the Scanner Assembly. Tighten the screws securely, but be
careful not to over-tighten. See View 2 on Page 7.
• Plug the Barcode Scanner cable into the appropriate connector on the Linear Main Board. See Figure 6.
• Be certain the retaining latch clicks into place.
Spectra 4000 - 10000 Library Family Barcode Scanner Replacement Guide
Barcode Scanner Installation

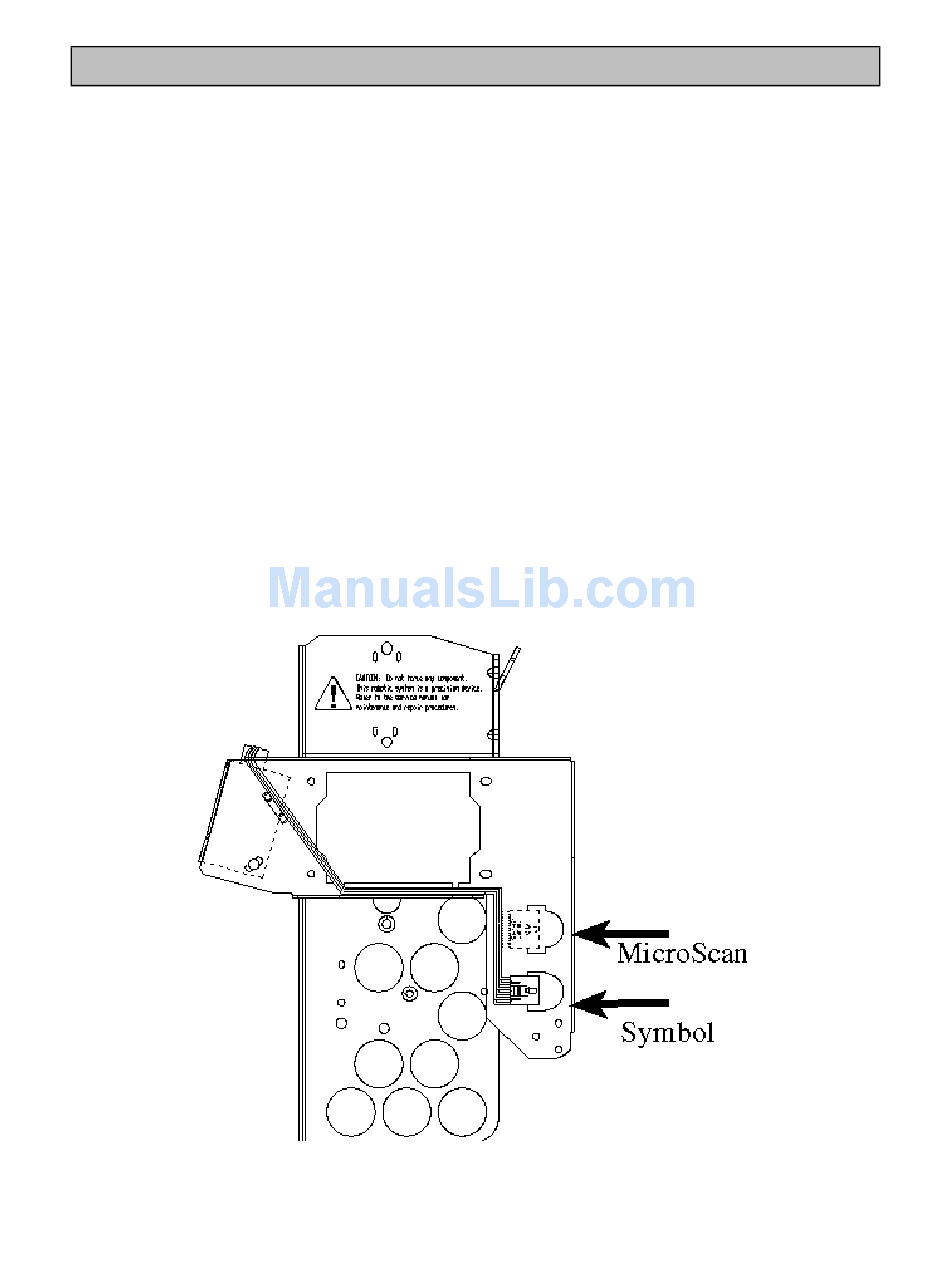

Figure 6: Installing and Plugging in Barcode Scanner
/ Opticon
7
