Loading Label Sheets - Develop ineo+ 360i Quick Manual

6.2 Loading paper
6.2.5

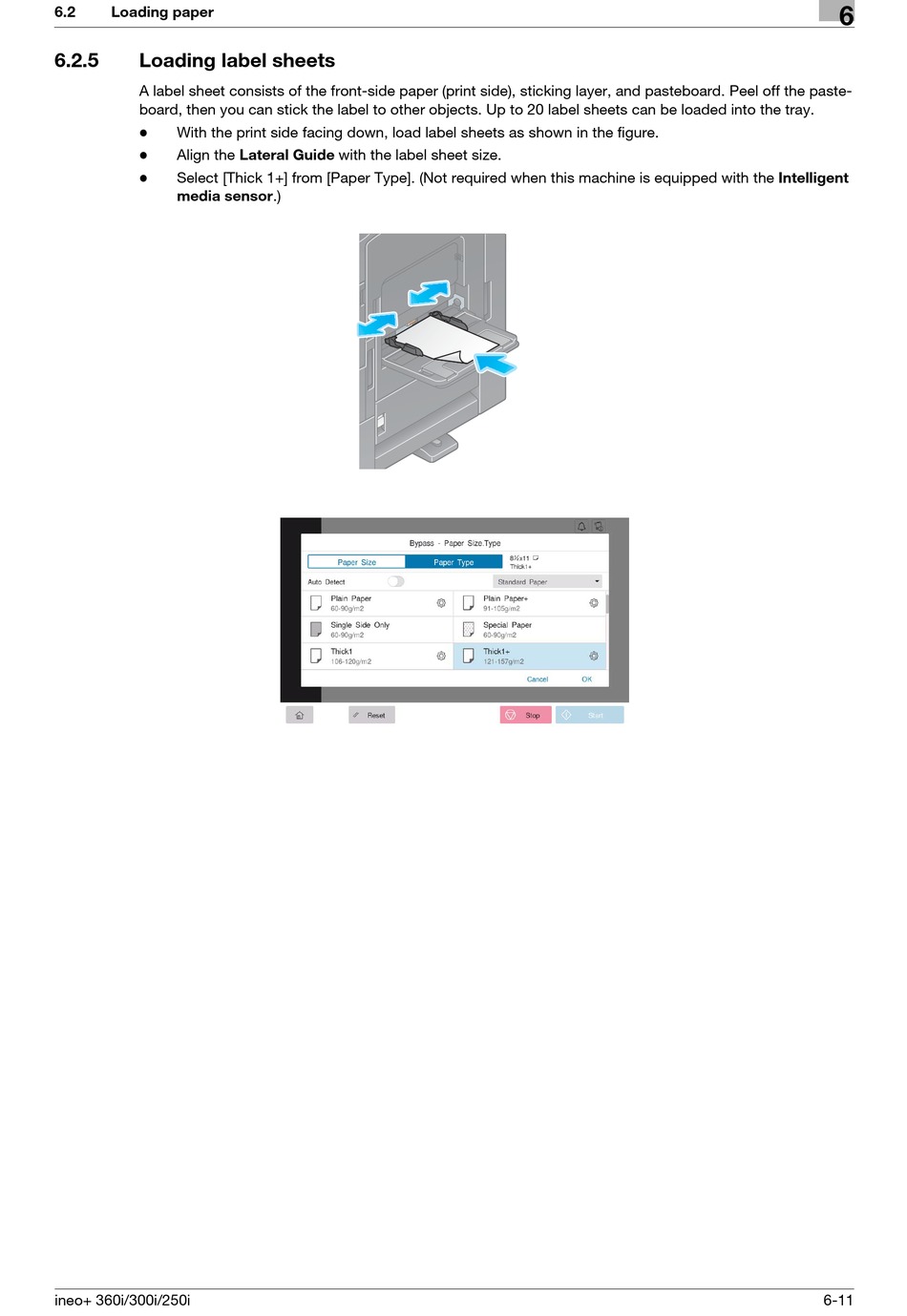

Loading label sheets

A label sheet consists of the front-side paper (print side), sticking layer, and pasteboard. Peel off the paste-
board, then you can stick the label to other objects. Up to 20 label sheets can be loaded into the tray.
- With the print side facing down, load label sheets as shown in the figure.
-
Align the Lateral Guide with the label sheet size.
-
Select [Thick 1+] from [Paper Type]. (Not required when this machine is equipped with the Intelligent
media sensor.)
ineo+ 360i/300i/250i
6
6-11
