NCR 7746-K152 Kit Instructions
NCR 7746-K152 Kit Instructions

NCR 7746-K152 Kit Instructions

2d scanner, front mount

Advertisement

Quick Links

Kit Instructions
2D Scanner, Front Mount
7746-K152
Issue A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7746-K152 and is the answer not in the manual?

Questions and answers

Summary of Contents for NCR 7746-K152

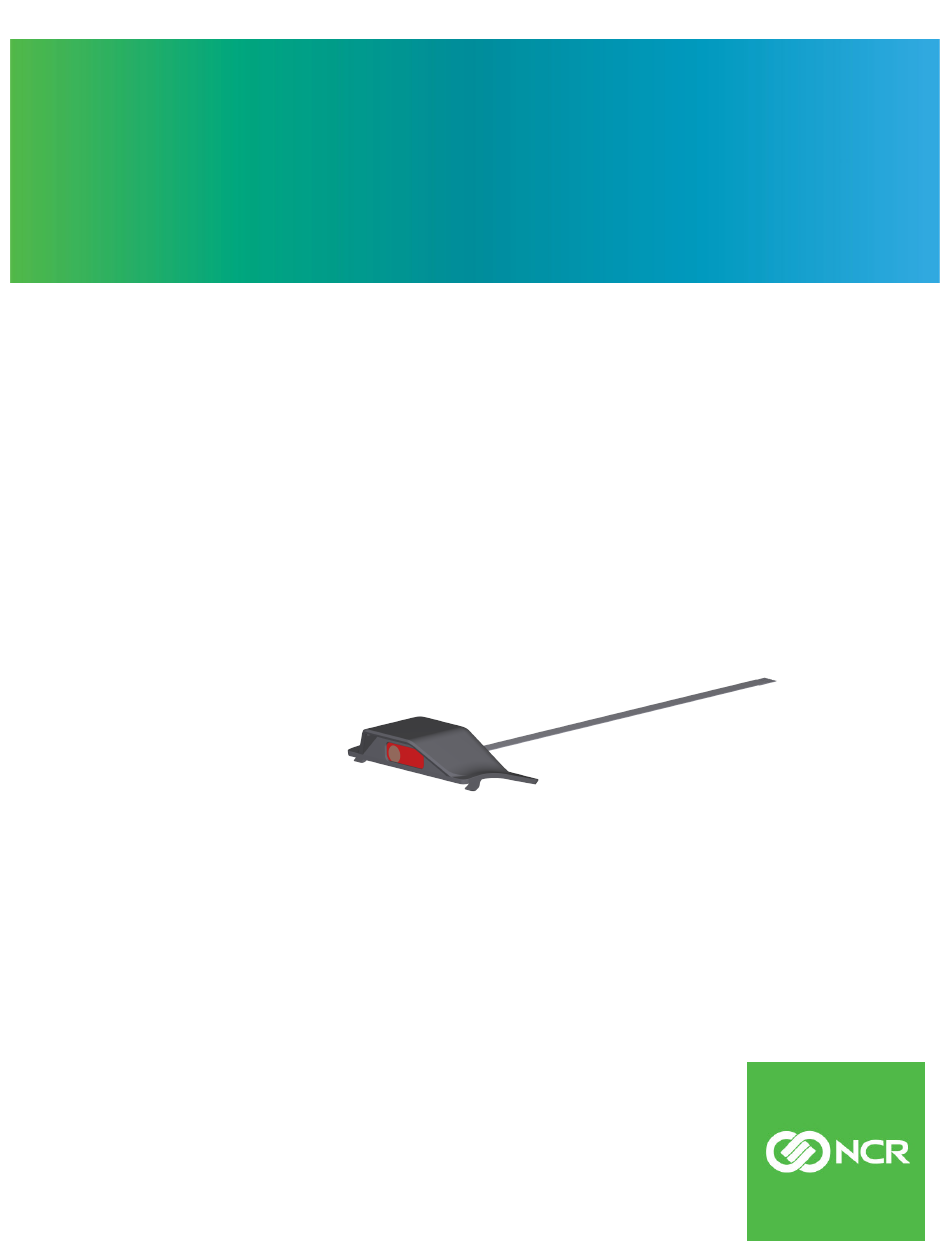

  • Page 1 Kit Instructions 2D Scanner, Front Mount 7746-K152 Issue A...
  • Page 2: Revision Record

    The product described in this document is a licensed product of NCR Corporation. NCR is a registered trademark of NCR Corporation. NCR POS is a trademark of NCR Corporation in the United States and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
  • Page 3: Kit Contents

    2D Scanner, Front Mount This kit provides a front mount 2D Scanner for the NCR PX10/PX15 POS (7746). Kit Contents Installation Procedure 1. Pivot the display toward the back.
  • Page 4 2D Scanner, Front Mount 2. Remove the screw (1) that secures the Front Neck Cover to the neck. Note: Use only a screwdriver with a #1 Philips bit to avoid stripping the screw head. 3. Pivot the Front Neck Cover away from the terminal. 4.
  • Page 5 2D Scanner, Front Mount 5. Remove the screws (2) that secure the Rear Base Cap to the Neck. 6. Remove the Rear Base Cap. 7. Set the terminal to stand upright, and then pivot the display toward the front.
  • Page 6 2D Scanner, Front Mount 8. Pivot the Back Neck Cover away from the terminal. 9. Slightly push the front side of the Stand Top Cover Assembly, and then pivot the cover open.
  • Page 7 2D Scanner, Front Mount 10. For versions with battery, disconnect the battery cable from the Motherboard. 11. Insert a flat screw driver in the slot to unsnap the Scanner Blank from the display housing.
  • Page 8 2D Scanner, Front Mount 12. Insert the end of the Scanner flex cable through the opening on the display housing until the cable is visible above the neck. 13. Using tweezers or a plastic hook, pull the cable out of the neck area. 14.
  • Page 9 2D Scanner, Front Mount 15. Secure the Scanner using a screw. 16. Route and tape the cable down the left channel of the neck stand.
  • Page 10 2D Scanner, Front Mount 17. Insert the scanner cable through the opening at the bottom of the neck. 18. Route the scanner flex cable through the routing slot and connect the flex cable to the Motherboard with the blue side facing out. 19.
  • Page 11 2D Scanner, Front Mount 22. Reinstall the Front Neck Cover.
