- Page 1 Kit Instructions 7746 Countertop Mount 7746-K003 Issue A...
- Page 2 The product described in this document is a licensed product of NCR Corporation. NCR is a registered trademark of NCR Corporation. NCR POS is a trademark of NCR Corporation in the United States and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
- Page 3 Revision Record Issue Date Remarks May 2019 First Issue...
-
Page 5: Countertop Mount

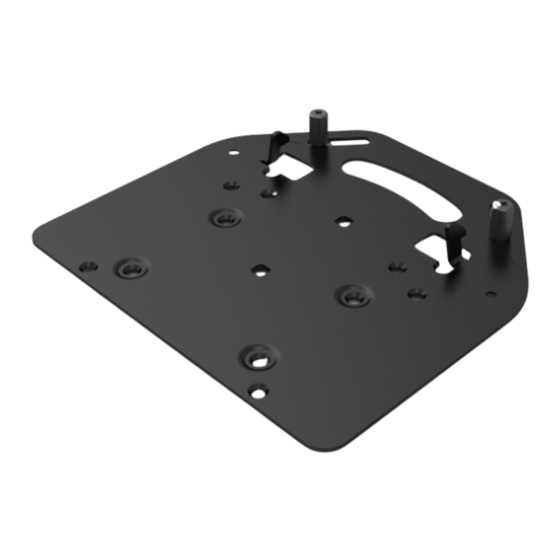

Countertop Mount This kit provides a base plate to mount the NCR PX10/PX15 POS (7746) on a countertop. Kit Contents Required Tools • #2 Phillips screwdriver • 2 pieces No.8–7.5 inch flat–head wood screws or similar, depending on the mounting substrate (supplied by customers) -
Page 6: Installation Procedure
Position the base plate on the installation location and secure with screws (2). 2. Loosen the thumbscrews, and then move them toward the back. 3. Connect the cables to their ports on the bottom of the 7746 terminal. For more information, refer to Terminal I/O on page 7. - Page 7 Countertop Mount 4. Mount the terminal on the base plate.
- Page 8 Countertop Mount a. Place the terminal on top of the base plate and center it horizontally. Use the two lines on the base plate as placement indicators. Caution: Ensure that no cables are pinched. The cables should be routed through the rear bottom of the terminal.
- Page 9 Countertop Mount b. Move the terminal toward the front of the base plate to hook the metal tabs over the metal base of the terminal. Note: Ensure that the terminal is properly installed. Both placement indicators on the base plate should be visible if viewed from the top.
- Page 10 Countertop Mount 5. Move the thumbscrews toward the terminal, and then tighten them. Note: Ensure that the thumbscrews are touching the edge of the terminal.
- Page 11 Countertop Mount Terminal I/O The following is the default Terminal I/O for the NCR PX10/PX15 POS (7746). Callout I/O Name Power Input Port USB type C USB 3.0 USB 3.0 RJ45 serial port RJ12 Cash Drawer (24V) Recovery Tool button SIM Card Reader (Smart Card Reader)
