NCR 7746-K452 Kit Instructions

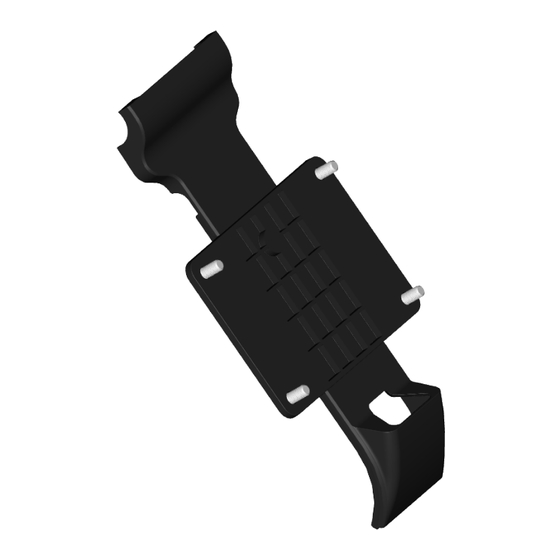

Mount for integrated xl7 customer display
Hide thumbs

Advertisement

Quick Links

Download this manual
Kit Instructions
Mount for Integrated XL7 Customer Display
7746-K452
Issue A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7746-K452 and is the answer not in the manual?

Questions and answers

Related Manuals for NCR 7746-K452

Summary of Contents for NCR 7746-K452

  • Page 1 Kit Instructions Mount for Integrated XL7 Customer Display 7746-K452 Issue A...

  • Page 2: Revision Record

    The product described in this document is a licensed product of NCR Corporation. NCR is a registered trademark of NCR Corporation. NCR POS is a trademark of NCR Corporation in the United States and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.

  • Page 3: Kit Contents

    Mount for Integrated XL7 Customer Display This kit provides a mount to install an XL7 Customer Display on the neck of the NCR PX10 POS (7746). Kit Contents...

  • Page 4: Installation Procedure

    Mount for Integrated XL7 Customer Display Installation Procedure 1. Pivot the display toward the back. 2. Remove the screw (1) that secures the Front Neck Cover to the neck. Note: Use only a screwdriver with a #1 Philips bit to avoid stripping the screw head.
  • Page 5 Mount for Integrated XL7 Customer Display 3. Pivot the Front Neck Cover away from the terminal. 4. Lay the terminal face down on a flat surface. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.
  • Page 6 Mount for Integrated XL7 Customer Display 6. Remove the Rear Base Cap. 7. Set the terminal to stand upright, and then pivot the display toward the front. 8. Pivot the Back Neck Cover away from the terminal.
  • Page 7 Mount for Integrated XL7 Customer Display 9. Lay the XL7 display face down on a flat surface. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down. 10. Connect the USB-C Cable to the back of the XL7 display. Tighten the thumbscrew. Note: Avoid excessive tightening of the thumbscrew.
  • Page 8 Mount for Integrated XL7 Customer Display 11. Insert the opposite end of the USB-C cable through the opening on the bottom of the neck mount. 12. Install the neck mount to the back of the XL7 display using screws (4).
  • Page 9 Mount for Integrated XL7 Customer Display 13. Set the PX10 to stand upright, and then pivot the PX10 display toward the front. 14. Attach the neck mount with XL7 display to the terminal.
  • Page 10 Mount for Integrated XL7 Customer Display 15. Secure the neck mount and XL7 display assembly on the neck of the PX10 terminal with a screw. 16. Lay the terminal face down on a flat surface. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.
  • Page 11 Mount for Integrated XL7 Customer Display Note: Avoid excessive tightening of the thumbscrew. Fully insert the USB-C male connector against the housing and tighten the thumbscrew only until the silver knurled portion touches the black plastic overmold. There should be no gap between the thumbscrew and the overmold, and no looseness in the overmold once the thumbscrew is properly tightened.
