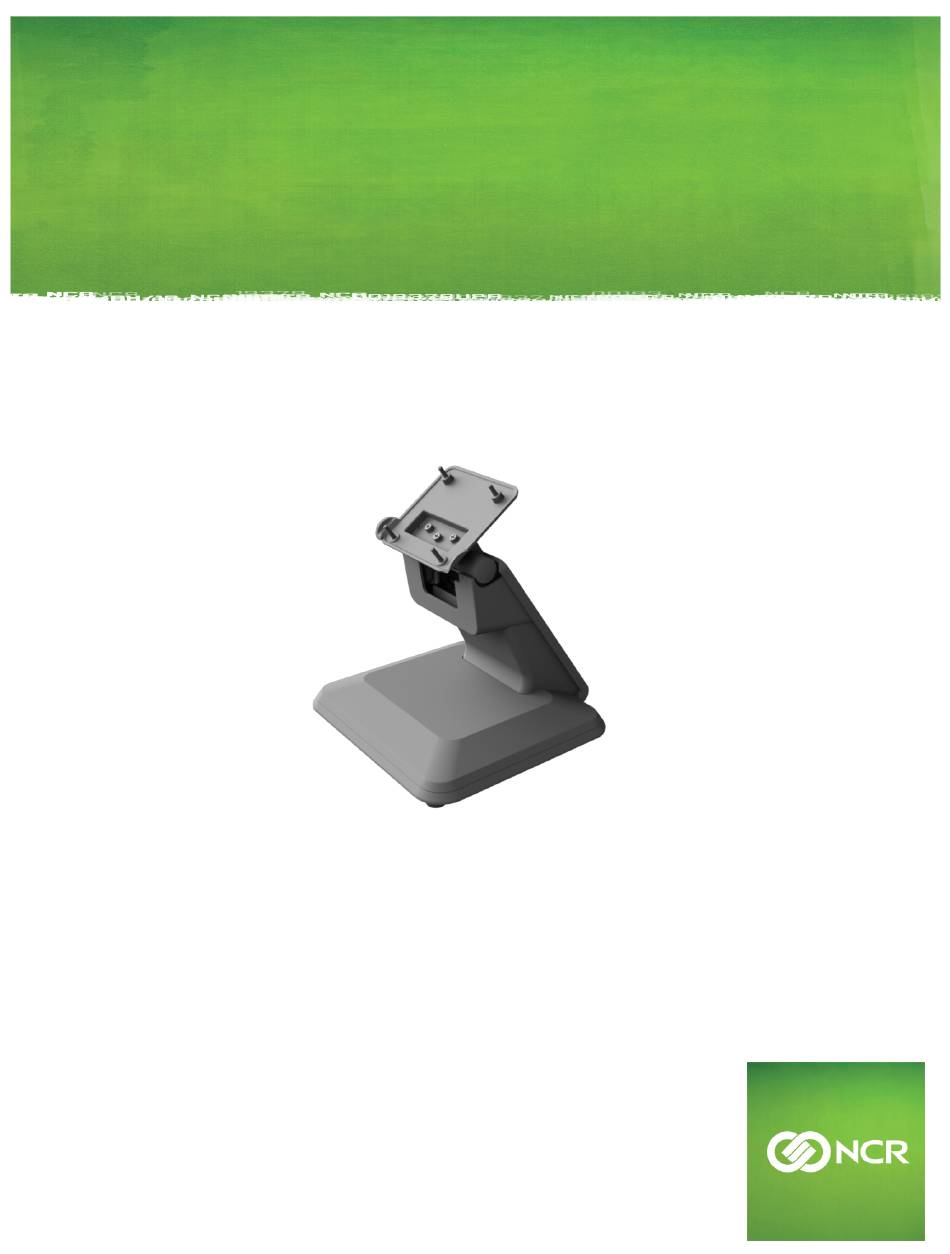

- Page 1 KIT INSTRUCTIONS P–Series Stand with P1532 Plate Release 1.0 7734-K172 Issue A...
- Page 2 The product described in this document is a licensed product of NCR Corporation. NCR is a registered trademark of NCR Corporation. NCR P1532 POS is a trademark of NCR Corporation in the United States and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
- Page 3 Revision Record Issue Date Remarks June 2016 First Issue...
- Page 4 P–Series Stand with P1532 Plate Introduction This kit provides a P–Series Stand with P1532 Plate.
- Page 5 P–Series Stand with P1532 Plate Installation Procedure 1. Install the P–Series Stand to the terminal head. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down. 2. Secure the Hinge Mount with screws (2) on the bottom holes.
- Page 6 P–Series Stand with P1532 Plate 3. Rotate the stand to access the top holes. 4. Secure the hinge mount with mounting screws (2) on the top holes. 5. Cover the screws with cosmetic covers (2).
