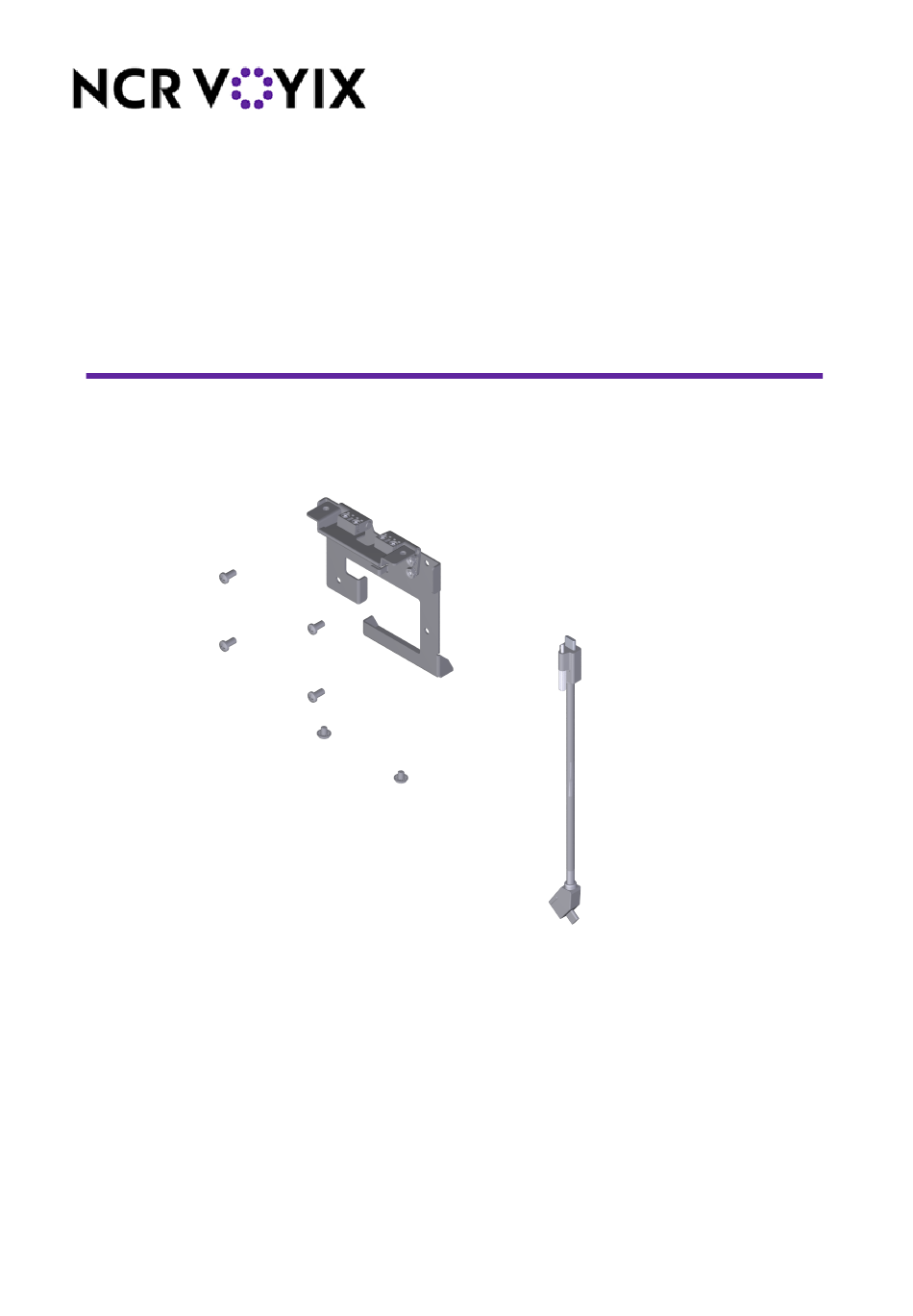

- Page 1 XL7 Hinge Mount w/ USB-C Cable Kit Instructions 7772-K452 Issue B Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Table of Contents Copyright XL7 Hinge Mount w/ USB-C Cable Kit Contents Installation Procedure Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 4 Revision Record Issue Date Remarks Jun 2020 First Issue Dec 2021 Added Warning statement Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 5 XL7 Hinge Mount w/ USB-C Cable This kit provides a hinge mount and cable to install the XL7 Customer Display on the NCR CX7 All-in-One POS (7772). Kit Contents Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 6 Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 7 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 8 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 9 6. Lift the bottom of the Logo Badge to unsnap it from Port D of the display housing. 7. Route the USB-C Cable through the Bracket as shown. Note Do not hook the Cable on the Cable Management Hooks. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 10 Overtightening the thumbscrew damages the connector on the board. 9. Install the Bracket on the back of the XL7 Customer Display (4 screws). Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 11 10. Install the Customer Display and Bracket assembly on the CX7 Display (2 screws). Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 12 Cable so that the excess cable is at the customer display end of the cable. 12. Secure the Cable under the Cable Management Hooks of the Bracket. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 13 13. Reinstall the Display Back Cover. 14. Reconnect the 180-degree USB-C Cable and Ethernet Cable. 15. Reinstall the Cable Cover. 16. Pivot the XL7 Customer Display into position. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
