zones

Installation Guides

Section:

TABLES

Description:

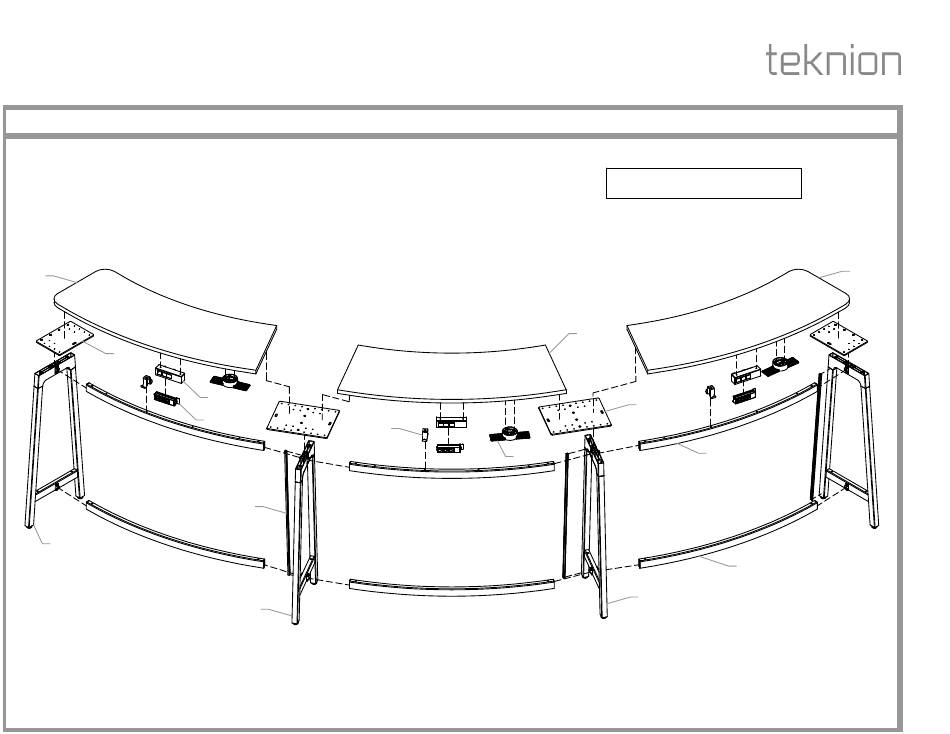

SECTIONAL CURVED LEDGE TABLE

Start Curved Ledge Table (ZNTLCS), Mid Curved Ledge Table (ZNTLCM), End Curved Ledge Table (ZNTLCE)

Note: Start, Mid, End Assembly pg 4-20

Start, End Assembly pg 4-5, 21-34

Date:

May 2019

Page No:

1 of 33

ZNS_216b

Rev. No: 1

Need help?

Do you have a question about the ZNTLCS and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion ZNTLCS

Page 1 1 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b Rev. No: 1 Start Curved Ledge Table (ZNTLCS), Mid Curved Ledge Table (ZNTLCM), End Curved Ledge Table (ZNTLCE) Note: Start, Mid, End Assembly pg 4-20 Start, End Assembly pg 4-5, 21-34...
Page 2 zones Installation Guides Section: TABLES Date: May 2019 Page No: 2 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b REFERNCE FOR 60 DEGREE OR 90 DEGREE FRAME ASSEMBLY START Note: Reference Frame Assembly for 60 degree or 90 degree frames. START MIDDLE Note: Reference Frame Assembly for 60 degree or 90 degree frames.
Page 3 zones Installation Guides Section: TABLES Date: May 2019 Page No: 3 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b Rev. No: Part and Product Identification 30 deg Start W/S 30 deg End W/S (C07-2126S) x1 (C07-2126E) x1 30 deg Mid W/S 60 deg Start W/S 60 deg End W/S (C07-2126M) x1...
Page 4 zones Installation Guides Section: TABLES Date: May 2019 Page No: 4 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE START FRAME GABLES INVERT AND ASSEMBLE START FRAME Torque 60 ± 10 lb-in STEP 1: Fasten End Gable Top Plate to End Gable Assembly with Machine Screws, Fasten STEP 2: Place End Gable Assemblies upside down and slide Upper and Lower Beam Assembly Mid Gable Top Plate to Mid Gable Assembly using Machine Screws onto Gable Assemblies...
Page 5 zones Installation Guides Section: TABLES Date: May 2019 Page No: 5 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b SECURE START GABLE ASSEMBLY ASSEMBLE MID GABLE Torque 60 ± 10 lb-in STEP 3: Fasten Upper and Lower Beam Elements using Socket Headed Cap Screws and Crush STEP 4a: Fasten Mid Gable Top Plate to Mid Gable Assembly using Machine Screws Washers...
Page 6 zones Installation Guides Section: TABLES Date: May 2019 Page No: 6 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE MIDDLE FRAME SECURE MID GABLE STEP 5a: Place Mid Gable Assembly upside down and slide Upper and Lower Beam Assembly STEP 6a: Fasten Upper and Lower Beam Assemblies to Mid Gable Frame using Crush onto Mid Gable Assembly Washers and Socket Headed Cap Screws...
Page 7 zones Installation Guides Section: TABLES Date: May 2019 Page No: 7 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE END GABLE ASSEMBLE END FRAME Torque 60 ± 10 lb-in STEP 7a: Fasten End Top Plate to End Gable using Machine Screws STEP 8a: Turn End Gable upside down and Slide Upper and Lower Beam Elements onto End Gable Assembly...
Page 8 zones Installation Guides Section: TABLES Date: May 2019 Page No: 8 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b SECURE END FRAME ASSEMBLY ASSEMBLE MIDDLE AND END FRAME Middle STEP 9a: Fasten Upper and Lower Beam Assemblies to End Gable Assembly using Crush STEP 10a: Slide Middle and End Frames together Washers and Socket Headed Cap Screws...
Page 9 zones Installation Guides Section: TABLES Date: May 2019 Page No: 9 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b FASTEN END AND MID GABLE ASSEMBLE START AND MID-END GABLES Start Middle-End STEP 11a: Fasten Middle and End Gable together using Crush Washers and Socket Headed STEP 12a: Place Beginning, Middle and End Frames right side up and slide frame assemblies Cap Screws together...
Page 10 zones Installation Guides Section: TABLES Date: May 2019 Page No: 10 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b SECURE FULL FRAME ASSEMBLY Torque 10 ± 2 lb-ft STEP 13a: Fasten Gable Assemblies together using Crush Washers and Socket Headed Cap Screws...
Page 11 zones Installation Guides Section: TABLES Date: May 2019 Page No: 11 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL HOOKS STEP 14a: Install Hooks on Top Beam Assembly using Machine Screws and Fasten Mid and End Top Plates to Upper Beam Assemblies using Machine Screws...
Page 12 zones Installation Guides Section: TABLES Date: May 2019 Page No: 12 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE WORKSURFACES STEP 15a: Drape Power Bar Cord over Upper Beam Assembly, Place Beginning, Middle and End Worksurfaces on Frame Assembly and fasten using Wood Screws...
Page 13 zones Installation Guides Section: TABLES Date: May 2019 Page No: 13 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b TIGHTEN FRAME SCREWS POWER BAR CABLE CLEARANCE Note: Sideview Torque ±2 lb-ft Note: After installing the Worksurface, Tighten the Machine Screws with Torque gun until snug STEP 16a: Ensure Power Bar Cord Clears the Worksurface via the cut out beneath ±2 lb-ft with a torque setting of 10...
Page 14 zones Installation Guides Section: TABLES Date: May 2019 Page No: 14 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL POWER BAR BRACKET STEP 17a: Fasten Power bracket using Wood Screws.
Page 15 zones Installation Guides Section: TABLES Date: May 2019 Page No: 15 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL POWER BAR STEP 18a: Insert Power Bar into Power Bar Bracket...
Page 16 zones Installation Guides Section: TABLES Date: May 2019 Page No: 16 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b SECURE POWER BAR REMOVE WIRE CLIPS STEP 19a: Tighten the Thumb Screws to hold Power Bar into Power Bracket. STEP 20a: Remove Wire Clips from Wire Manager Kit.
Page 17 zones Installation Guides Section: TABLES Date: May 2019 Page No: 17 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL WIRE MANAGER STEP 21a: Fasten Wire Manager Kit beneath Worksurface using wood screws...
Page 18 zones Installation Guides Section: TABLES Date: May 2019 Page No: 18 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL WIRE CLIPS Note: Install Wire Clips where required P-Clips P- Clips STEP 22a: Install Wire Clips where required. No Pilot Holes Exist for this step.
Page 19 zones Installation Guides Section: TABLES Date: May 2019 Page No: 19 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b REMOVE TAPE FROM WIRE MANAGER APPLY WIRE MANAGER TO LEG STEP 23a: Remove Tap from Wire Manager Extrusion STEP 24a: Apply Wire Manger to Legs where required...
Page 20 zones Installation Guides Section: TABLES Date: May 2019 Page No: 20 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b DETAILED WIRE MANGER VIEW RUN POWER CORD Flush to Aluminum Leg .537 ± .125 Press Power Cable into Leg STEP 25a: Install Wire Manager Extrusion as shown above STEP 26a: Run Power Bar Cable Down Gable Assembly Leg using Wire Manager Extrusion looping any additional cord around Wire Manager Kit...
Page 21 zones Installation Guides Section: TABLES Date: May 2019 Page No: 21 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE END GABLE Note: Start and End Curved Ledge Table Assembly Installation steps are shown here onwards. Follow the Steps 1, 2, 3 to assemble the Start Frame.
Page 22 zones Installation Guides Section: TABLES Date: May 2019 Page No: 22 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE END FRAME FASTEN END FRAME ASSEMBLY STEP 5b: Fasten End Top Plate to End Gable using Machine Screws STEP 6b: Turn End Gable upside down and Slide Upper and Lower Beam Elements onto End Gable Assembly...
Page 23 zones Installation Guides Section: TABLES Date: May 2019 Page No: 23 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE START AND END GABLES Start STEP 7b: Slide Start and End Gable Assemblies together.
Page 24 zones Installation Guides Section: TABLES Date: May 2019 Page No: 24 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b FASTEN START AND END GABLE Tapped Holes STEP 8b: Fasten Start and End Gable Assemblies using Crush Washers and Socket Headed Cap Screws...
Page 25 zones Installation Guides Section: TABLES Date: May 2019 Page No: 25 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE HOOKS STEP 9b: Turn Frame to upright position and fasten Hooks and Gable Top plates to Upper Beam Weldments using Machine Screws.
Page 26 zones Installation Guides Section: TABLES Date: May 2019 Page No: 26 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b ASSEMBLE WORKSURFACES STEP 10b: Drape Power Bars over Upper Beam Assembly. Place Curved Worksurfaces on Gable Assembly and Fasten them using Wood Screws.
Page 27 zones Installation Guides Section: TABLES Date: May 2019 Page No: 27 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b TIGHTEN FRAME SCREWS POWER BAR CLEARANCE VIEW Note: Sideview Torque ±2 lb-ft Note: After installing the Worksurface, Tighten the Machine Screws with Torque gun until snug STEP 11b: Ensure Power Bar Cord Clears worksurface via cutout beneath Worksurface ±2 lb-ft with a torque setting of 10...
Page 28 zones Installation Guides Section: TABLES Date: May 2019 Page No: 28 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL POWER BAR BRACKET INSTALL POWER BAR STEP 12b: Install Power Bar Bracket Beneath Worksurface using Wood Screws STEP 13b: Insert Power Bar into Power Bar Bracket...
Page 29 zones Installation Guides Section: TABLES Date: May 2019 Page No: 29 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b SECURE POWER BAR REMOVE WIRE CLIPS STEP 14b: Tighten the Thumb Screws to hold Power Bar into Power Bracket. STEP 15b: Remove Wire Clips from Wire Manager Kit.
Page 30 zones Installation Guides Section: TABLES Date: May 2019 Page No: 30 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b FASTEN WIRE MANAGER STEP 16b: Fasten Wire Manager Kit beneath Worksurface using Wood Screws...
Page 31 zones Installation Guides Section: TABLES Date: May 2019 Page No: 31 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b INSTALL WIRE CLIPS Note: Install Wire Clips where required P-Clips P- Clips STEP 17b: Install Wire Clips where required. No Pilot Holes Exist for this step.
Page 32 zones Installation Guides Section: TABLES Date: May 2019 Page No: 32 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b REMOVE TAPE FROM WIRE MANAGER APPLY WIRE MANAGER TO LEG STEP 18b: Remove Tap from Wire Manager Extrusion STEP 19b: Apply Wire Manger to Legs where required...
Page 33 zones Installation Guides Section: TABLES Date: May 2019 Page No: 33 of 33 Description: SECTIONAL CURVED LEDGE TABLE ZNS_216b DETAILED WIRE MANGER VIEW RUN POWER CORD Flush to Aluminum Leg .537 ± .125 Press Power Cable into Leg STEP 20b: Install Wire Manager Extrusion as shown above STEP 21b: Run Power Bar Cable Down Gable Assembly Leg using Wire Manager Extrusion looping any additional cord around Wire Manager Kit...
