zones
Installation Guides
Section:
FREESTANDING SCREENS
Description:
FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION
A1
Zones - Freestanding Lounge Screens (ZNFGA), (ZNFGB) and (ZNFGC)
Semi-Supported Screen (ZNFWS)
G

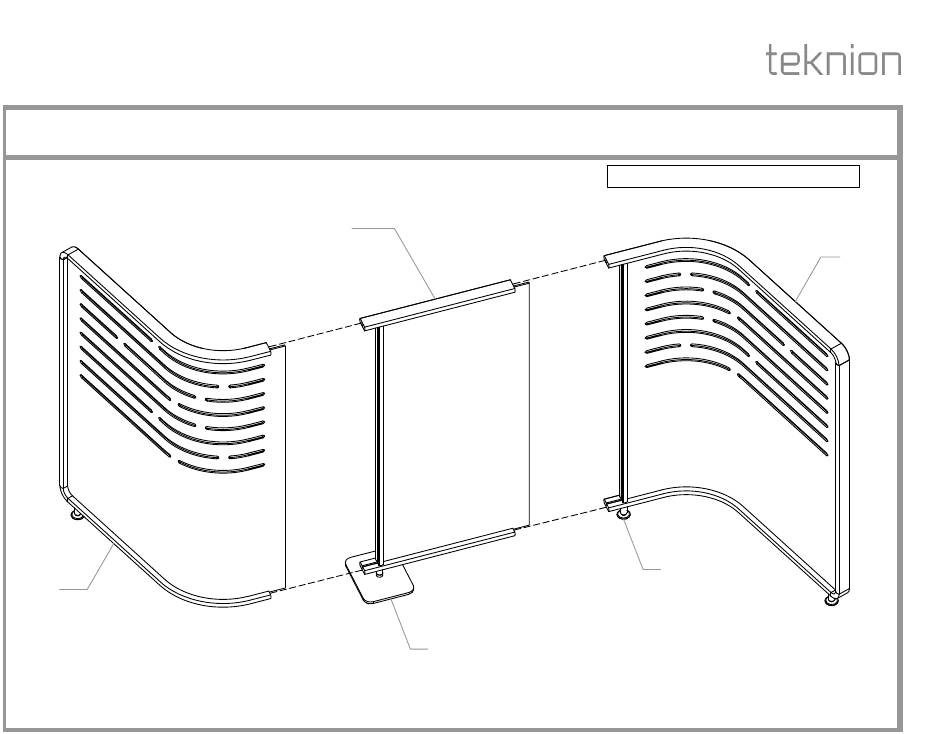

Freestanding Lounge Screen B (ZNFGB09S) shown.
H
Date:
May 2019
Page No:
ZNS_101b
Rev. No: 4
J
1 of 9
C1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion zones
Summary of Contents for Teknion zones
- Page 1 Section: FREESTANDING SCREENS Date: May 2019 Page No: 1 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b Rev. No: 4 Zones - Freestanding Lounge Screens (ZNFGA), (ZNFGB) and (ZNFGC) Semi-Supported Screen (ZNFWS) Freestanding Lounge Screen B (ZNFGB09S) shown.
- Page 2 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 2 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b Rev. No: 4 Part and Product Identification A1 - Curved End B1 - Reverse C1 - Curved End...
- Page 3 ORIENTATION SHEET (LEFT OR S CONFIGURATION SHOWN) ZNFGC ZNFGA All sizes 9 sq. ft. ZNFGB Greater than 9 sq. ft. ZNFGA 16 sq. ft. ZNFWS Less than 64 sq.ft ZNFGB 9 sq. ft. Zones Orientation Sheet shown as a reference.
- Page 4 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 4 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b INSTALL LEG ASSEMBLY NOTE: Ensure that the screen is placed on a clean and flat surface. STEP 1: Flip Flat Screen Assembly upside down. Place Leg Assembly on Flat Screen Assembly and secure it in place with Wood Screw. Repeat this step for other screens.
- Page 5 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 5 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b INSTALL ANCHOR PLATE ASSEMBLY NOTE: ONLY APPLICABLE WHEN ANCHOR PLATE IS SPECIFIED. NOTE: Ensure that the screen is placed on a clean and flat surface.
- Page 6 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 6 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b INSTALL ANCHOR PLATE ASSEMBLY STEP 3: Flip Flat Screen Assembly right side up. Lower assembly onto Screen Anchor Plate Assembly. Secure Anchor Plate to Flat Screen Assembly by twisting the Anchor Plate Assembly...
- Page 7 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 7 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b LEVEL SCREEN ASSEMBLY STEP 4: Hand tighten the Lock Ring to the bottom the the Bushing and Plate to level Screen Assembly.
- Page 8 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 8 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b INSERT MINIFIX CAM Detail View of Upper Connecting Bolt Detail View of Bottom Connecting Bolt STEP 5: Insert Connecting Bolt into Top and Bottom Trim as shown above.
- Page 9 Installation Guides Section: FREESTANDING SCREENS Date: May 2019 Page No: 9 of 9 Description: FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION ZNS_101b LOCKING MINIFIX CAM NOTE: Make sure to tighten all 4 Minifix Cam Underside View of Upper Minifix Cam...
